SV11-JEMNE (1982)

Toyota Camry/Vista

Production Aug 1982 - Jun 1984
Engine 2SELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)1SLU,2SELU

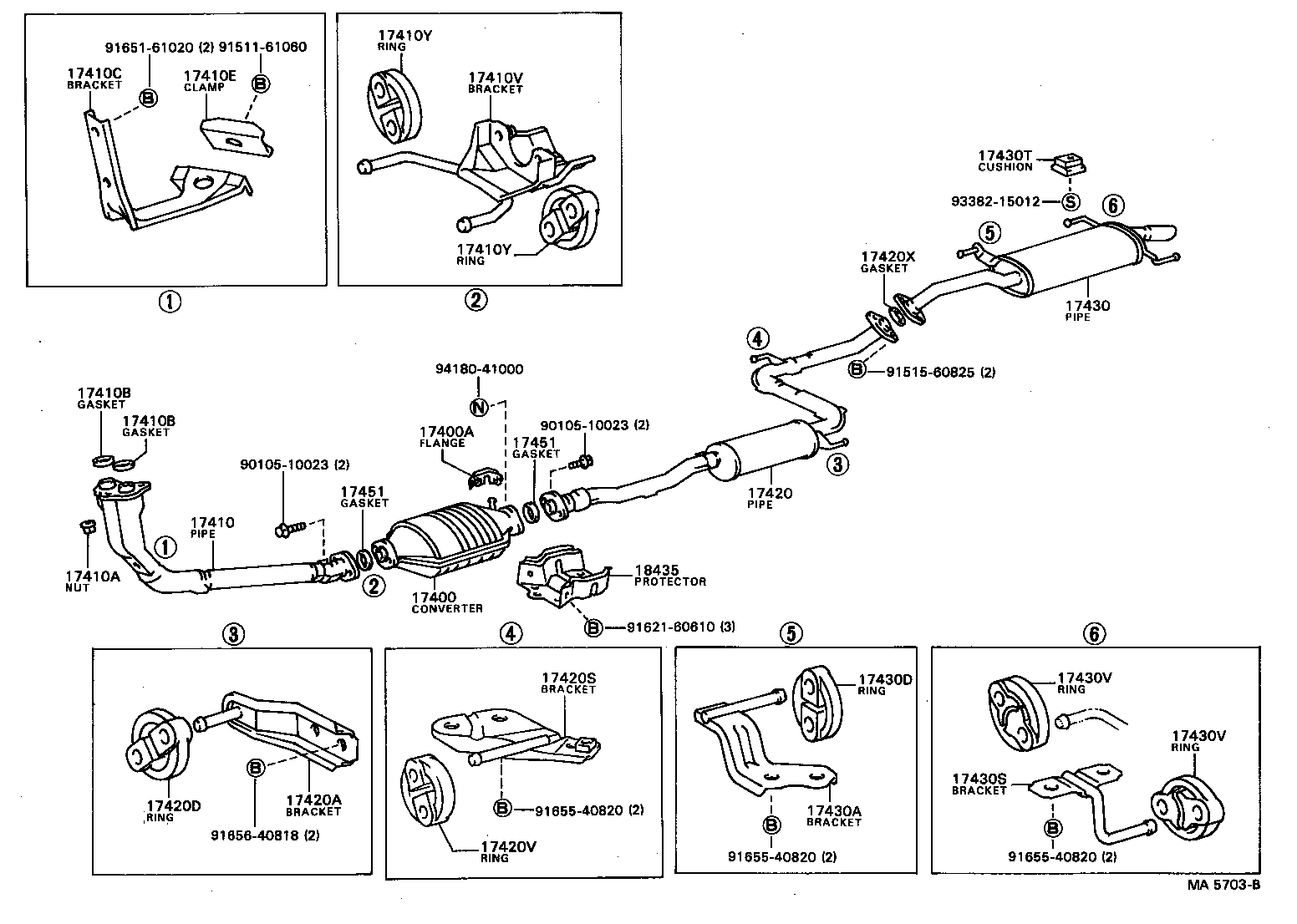

Click highlighted areas on diagram

diagram 17400 17400A 17410 17410A 17410B 17410B 17410C 17410E 17410V 17410Y 17410Y 17420 17420A 17420D 17420S 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17451 17451 18435 9010510023 9010510023 9151161060 9151560825 9162160610 9165161020 9165540820 9165540820 9165540820 9165640818 9338215012 9418041000
Part # Description Qty Price
17400A - FLANGE, THERMOSENSER INLET
18491-63010

1SLU,2SELU,3SGELU..SV1#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-63020

1SLU,2SELU..SV10,11

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

1CTL,1SLU,2SELU..CV10,SV1#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

1SLU,2SELU..SV10,11

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

1SLU,2SELU..SV10,11

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-63020

1SLU,2SELU..SV10,11

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04054

1SLU,2SELU..SV10,11

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-63010

1SLU,2SELU,3SGELU..SV1#

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTL,1SLU,2SELU..CV10,SV1#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTL,1SLU,2SELU..CV10,SV1#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-63010

1SLU,2SELU..SV1#

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17506-63010

1CTL,2CTL,1SLU,2SELU,3SGELU..CV1#,SV1#

 1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
17565-63020

1CTL,2CTL,1SLU,2SELU,3SGELU..CV1#,SV1#..5F

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-63010

1CTL,1SLU,2SELU..CV10,SV1#

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-63020

1CTL,2CTL,1SLU,2SELU,3SGELU..CV1#,SV1#..5F

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

1CTL,2CTL,1SLU,2SELU,3SGELU..CV1#,SV1#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-63020

1SLU,2SELU..SV1#

 1
17430-63050

1SLU,2SELU..SV1#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-63010

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63040

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

1SLU,2SELU..SV1#

RR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

1SLU,2SELU..SV1#

RR

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18436-63010

1SLU,2SELU,3SGELU..SV1#

 1
Common parts
90105-10023
91511-61060
91515-60825
91621-60610
91651-61020
91655-40820
91656-40818
93382-15012
94180-41000
