SV10-UHPZS (1982)
Toyota Camry/Vista

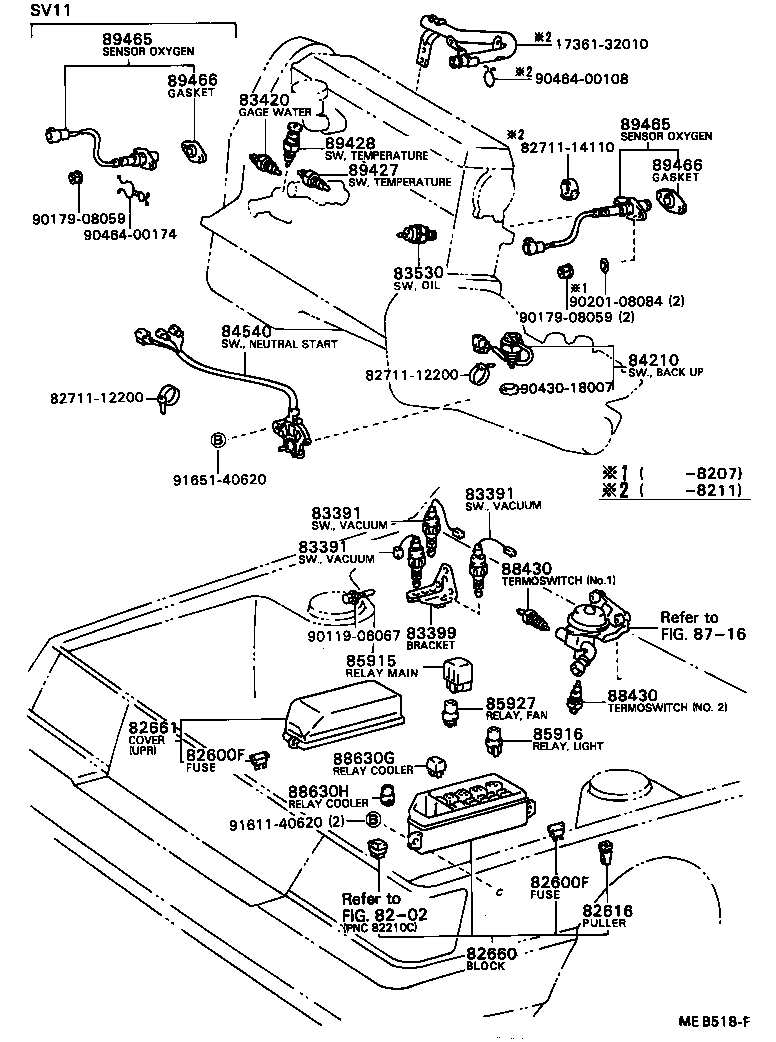

ILLUST NO. 1 OF 4(8203-8406)SV1# ; (8406- )SV11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,黄,20A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,黄,20A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CV1#,SV1# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-32030 |
SV1#;CV10..5F |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
CV10,SV1# ENGINE ROOM,UPR |
1 | ||
| 82661-32030 |
CV1#,SV1# COWL SIDE,SUMITOMO |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14061 |
SV10 EMISSION CONTROL,MARK=85M |
1 | ||
| 83391-14070 |
SV10 EMISSION CONTROL,MARK=330B |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14061 |
SV10 EMISSION CONTROL,MARK=85M |
1 | ||
| 83391-14070 |
SV10 EMISSION CONTROL,MARK=330B |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14061 |
SV10 EMISSION CONTROL,MARK=85M |
1 | ||
| 83391-14070 |
SV10 EMISSION CONTROL,MARK=330B |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-32010 |
SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CV1#,SV1# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
SV1# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85913-30020 |
CV1#,SV1# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CV1#,SV1# |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
CV10,SV1# |
1 | ||
| 88430 - THERMOSWITCH ASSY, AIR CONDITIONER | ||||
| 83430-30020 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC,NO.2 |
1 | ||
| 83430-30010 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC,NO.1 |
1 | ||
| 88430 - THERMOSWITCH ASSY, AIR CONDITIONER | ||||
| 83430-30020 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC,NO.2 |
1 | ||
| 83430-30010 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC,NO.1 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
CV10,SV1# |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
CV10,SV1# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-32010 |
SV1# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39085 |
SV10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39085 |
SV10 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-32010 |
SV1# |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-32010 |
SV1# |
1 | ||
| Common parts | ||||
| 17361-32010 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 90119-06067 | ||||
| 90179-08059 | ||||
| 90201-08084 | ||||
| 90430-18007 | ||||
| 90464-00108 | ||||
| 90464-00174 | ||||
| 91611-40620 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8716 | ||||

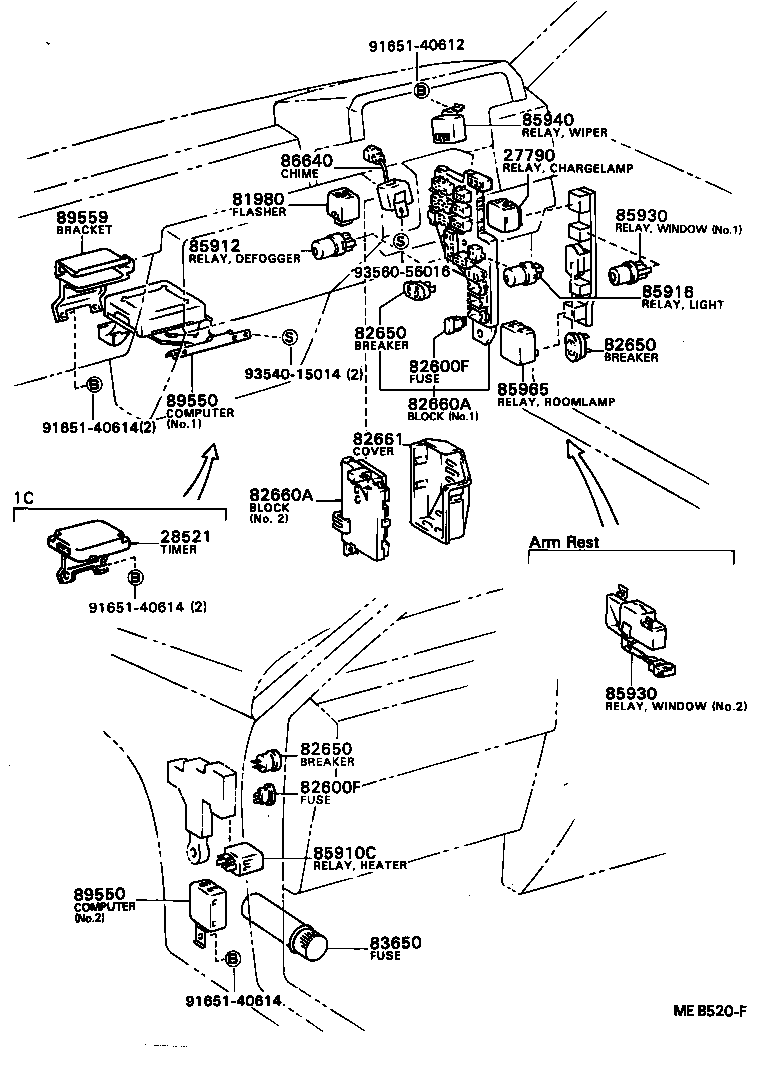

ILLUST NO. 2 OF 4(8203-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-35010 |
1SLU..SV10 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
CV1#,SV1# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,黄,20A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,黄,20A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
CV1#,SV1# 30A,TOKAIRIKA |
3 | ||
| 82650-20011 |
CV1#,SV1# 30A,MATSUSHITA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
CV1#,SV1# 30A,TOKAIRIKA |
3 | ||
| 82650-20011 |
CV1#,SV1# 30A,MATSUSHITA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
CV1#,SV1# 30A,TOKAIRIKA |
3 | ||
| 82650-20011 |
CV1#,SV1# 30A,MATSUSHITA |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-32060 |
CV10,SV1# NO.2 |
1 | ||
| 82660-32010 |
CV1#,SV1# NO.1,SUMITOMO |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-32060 |
CV10,SV1# NO.2 |
1 | ||
| 82660-32010 |
CV1#,SV1# NO.1,SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
CV10,SV1# ENGINE ROOM,UPR |
1 | ||
| 82661-32030 |
CV1#,SV1# COWL SIDE,SUMITOMO |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
CV1#,SV1# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
CV1#,SV1# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
CV1#,SV1# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CV1#,SV1# |
2 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX NO.1(POWER WINDOW OR SUN ROOF) |
1 | ||
| 85930-32010 |
SV1#..VX,ZX NO.2(POWER WINDOW) |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX NO.1(POWER WINDOW OR SUN ROOF) |
1 | ||
| 85930-32010 |
SV1#..VX,ZX NO.2(POWER WINDOW) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-32020 |
SV10..SE,VE,VR,VX,ZE,ZX;CV10,SV11,12..VF,VX,XE,ZX FR WIPER |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
SV10..SE,VE,VR,VX,ZE,ZX;CV10,SV11,12..VF,VX,XE,ZX |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-32010 |
CV1#,SV1# |
1 | ||
| 89559 - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-32010 |
SV10 |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93540-15014 | ||||
| 93560-56016 | ||||

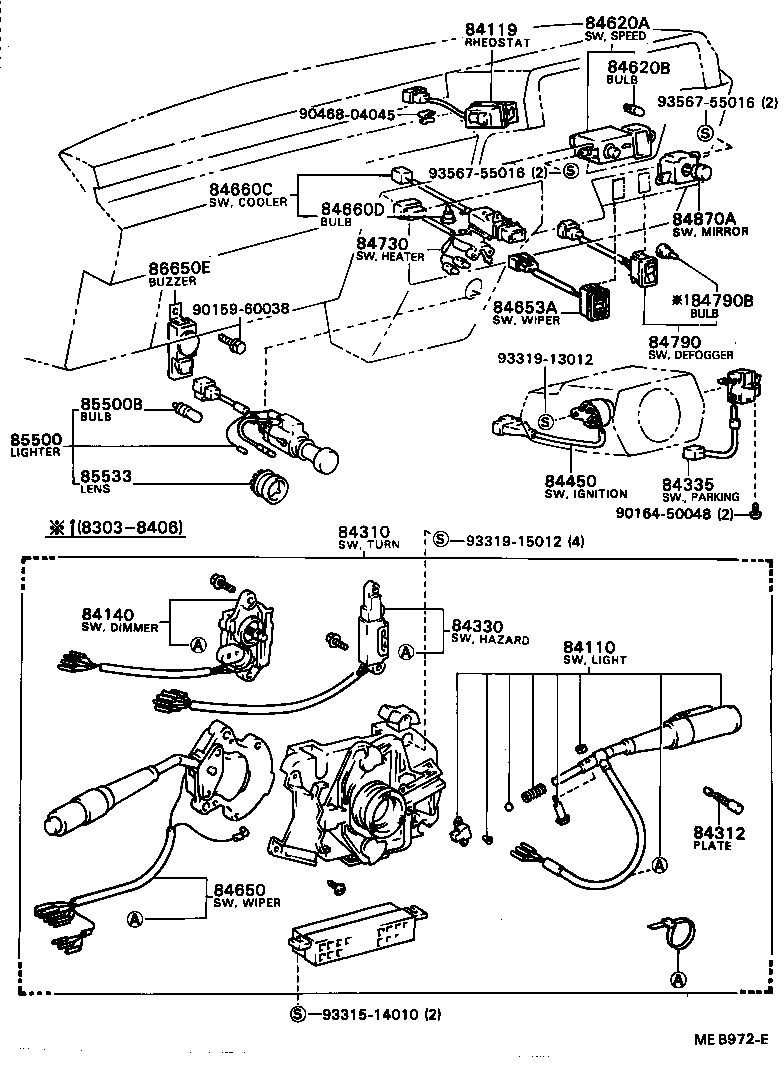

ILLUST NO. 3 OF 4(8203-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39155 |
CV10,SV1# TOKAIRIKA |
1 | ||
| 84112-39165 |
CV10,SV1# MATSUSHITA |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-3202001 |
SV1#..VX,ZX BLACK,BLACK,TRIM1#,8# |
1 | ||
| 84119-3202006 |
SV1#..VX,ZX DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 84119-3202003 |
SV1#..VX,ZX DARK GRAY,GRAY,TRIM1# |
1 | ||
| 84119-3202016 |
SV1#..VX,ZX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 84119-3202004 |
SV1#..VX,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-39085 |
CV10,SV1# TOKAIRIKA |
1 | ||
| 84140-39075 |
CV10,SV1# MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32020 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
CV10,SV1# TOKAIRIKA |
1 | ||
| 84312-32020 |
CV10,SV1# MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39135 |
CV10,SV1# TOKAIRIKA |
1 | ||
| 84332-39145 |
CV10,SV1# MATSUSHITA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-32010 |
CV10,SV1# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27040 |
CV10,SV1# |
1 | ||
| 84620A - SWITCH ASSY, SPEED WARNING | ||||
| 84620-32020 |
SV1#..VX,ZX |
1 | ||
| 84620B - BULB, SPEED WARNING SWITCH | ||||
| 84999-20070 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39225 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX MATSUSHITA |
1 | ||
| 84652-39205 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX TOKAIRIKA |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-14020 |
SV1#..5D |
1 | ||
| 84653-32010 |
CV10,SV1#..5D |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-32010 |
CV1#,SV1# |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-32010 |
CV1#,SV1# |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-32010 |
CV10,SV1# |
1 | ||
| 84732-32020 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/AUTOMATIC AIR CONDITIONER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32020 |
CV10,SV1# |
1 | ||
| 84790-32010 |
SV1# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
CV10,SV1# 12V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-32010 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32010 |
CV10,SV1# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV10,SV1# 14V 1.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-14020 |
CV1#,SV1# |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90164-50048 | ||||
| 90468-04045 | ||||
| 93315-14010 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||

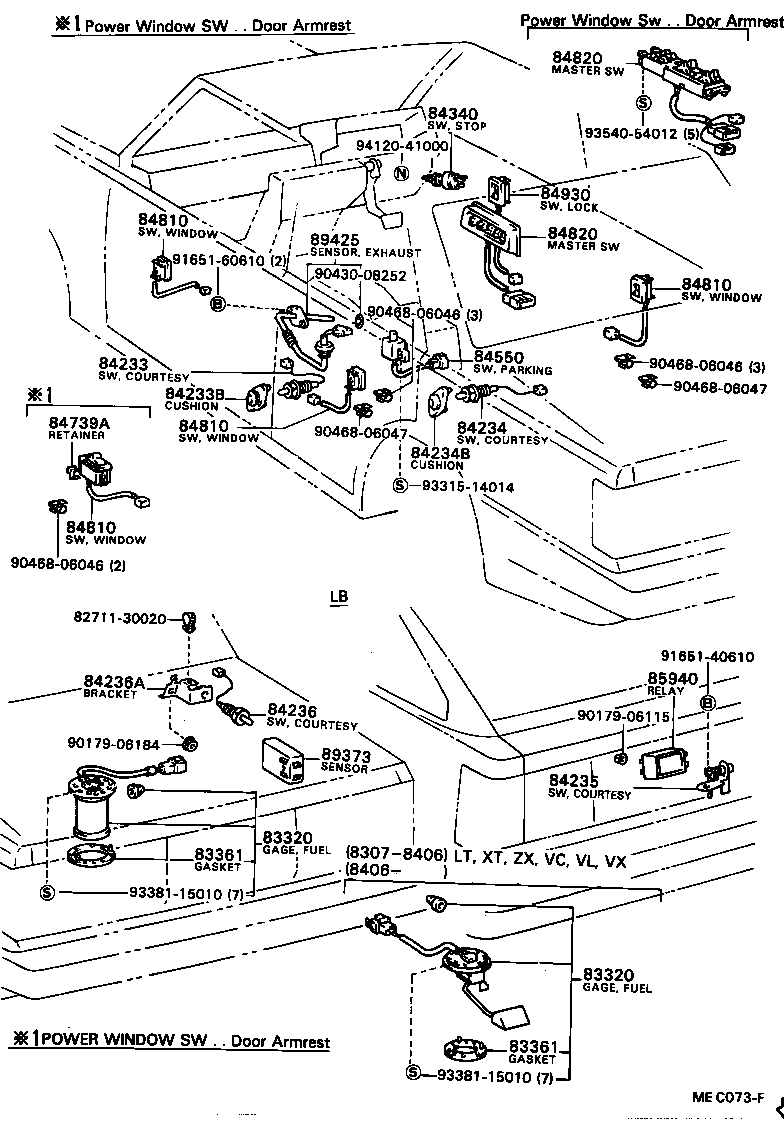

ILLUST NO. 4 OF 4(8203-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39346 |
SV1#..VX,ZX |
1 | ||
| 83320-39345 |
SV1#..VX,ZX |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39346 |
SV1#..VX,ZX |
1 | ||
| 83320-39345 |
SV1#..VX,ZX |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
CV1#,SV1# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
CV1#,SV1# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
CV10,SV1# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
CV1#,SV1# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20080 |
CV10,SV1# |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
CV1#,SV1# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16020 |
SV1#..5D |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-20030 |
SV1#..VX,ZX W/AUTO DRIVE |
1 | ||
| 84340-32010 |
CV10,SV1# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
CV10,SV1# NO.1 |
1 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-30020 |
SV1#..VX,ZX |
6 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32020 |
SV1#..VX,ZX RR |
2 | ||
| 84810-32040 |
SV1#..VX,ZX FR(LH) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32020 |
SV1#..VX,ZX RR |
2 | ||
| 84810-32040 |
SV1#..VX,ZX FR(LH) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32020 |
SV1#..VX,ZX RR |
2 | ||
| 84810-32040 |
SV1#..VX,ZX FR(LH) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32020 |
SV1#..VX,ZX RR |
2 | ||
| 84810-32040 |
SV1#..VX,ZX FR(LH) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32020 |
SV1#..VX,ZX FR(RH) |
1 | ||
| 84820-32021 |
SV1#..VX,ZX FR(RH) |
1 | ||
| 84820-32022 |
SV1#..VX,ZX FR(RH) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32020 |
SV1#..VX,ZX FR(RH) |
1 | ||
| 84820-32021 |
SV1#..VX,ZX FR(RH) |
1 | ||
| 84820-32022 |
SV1#..VX,ZX FR(RH) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-32020 |
SV10..SE,VE,VR,VX,ZE,ZX;CV10,SV11,12..VF,VX,XE,ZX FR WIPER |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32020 |
CV10,SV1#..5D |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39115 |
SV1# |
1 | ||
| Common parts | ||||
| 82711-30020 | ||||
| 90179-06115 | ||||
| 90179-06184 | ||||
| 90430-08252 | ||||
| 90468-06046 | ||||
| 90468-06047 | ||||
| 91651-40610 | ||||
| 91651-60610 | ||||
| 93315-14014 | ||||
| 93381-15010 | ||||
| 93540-54012 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
