SV10-UHPZS (1982)

Toyota Camry/Vista

Production Aug 1982 - Jun 1984
Engine 1SLU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )5D

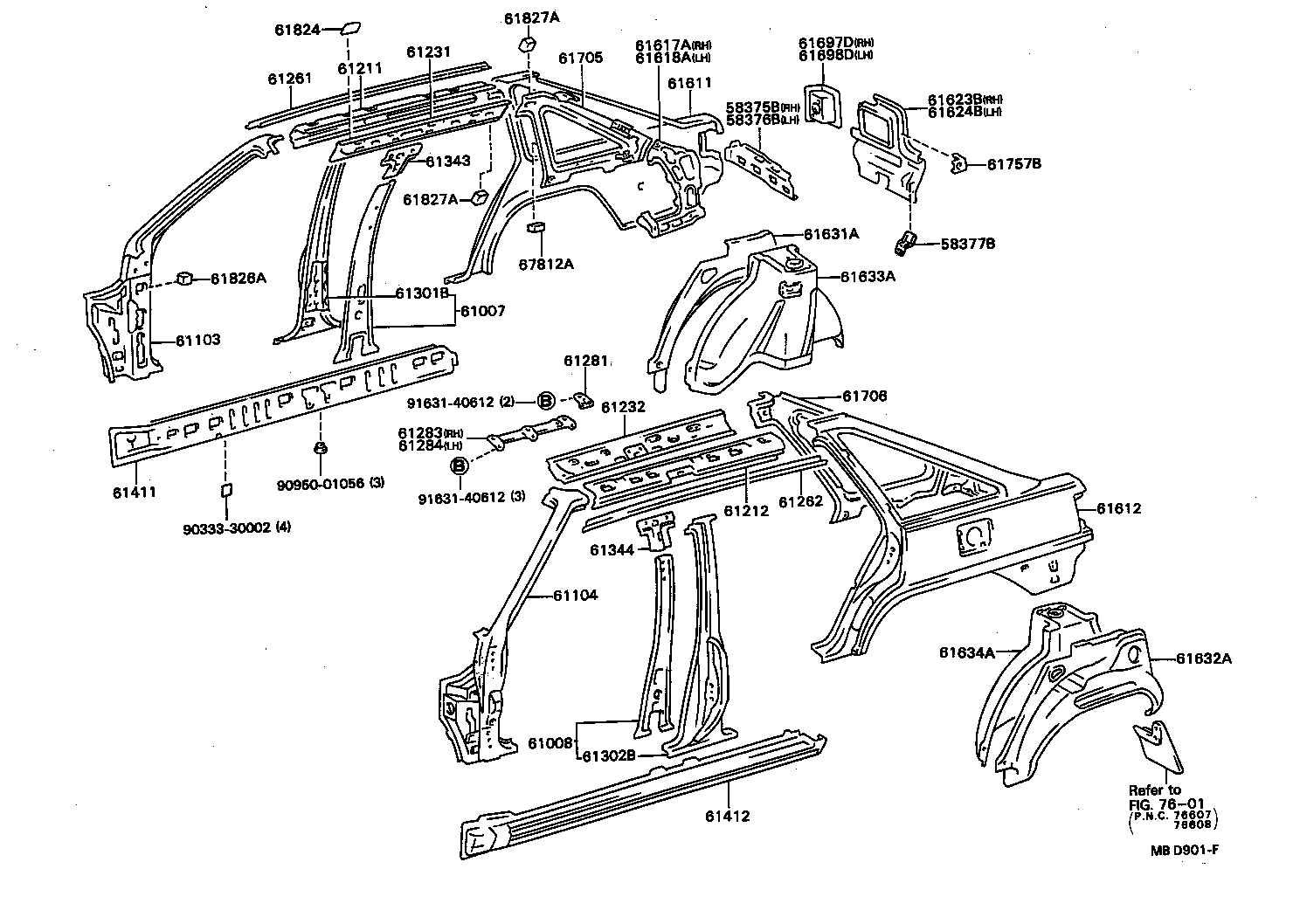

Click highlighted areas on diagram

diagram 58375B 58376B 58377B 61007 61008 61103 61104 61211 61212 61231 61232 61261 61262 61281 61283 61284 61301B 61302B 61343 61344 61411 61412 61611 61612 61617A 61618A 61623B 61624B 61631A 61632A 61633A 61634A 61697D 61698D 61705 61706 61757B 61824 61826A 61827A 61827A 67812A 7601 9033330002 9095001056 9163140612 9163140612
Part # Description Qty Price
61231 - RAIL, ROOF SIDE, INNER RH
61231-32060

SV1#..5D

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-32060

SV1#..5D

 1
61411 - PANEL, ROCKER, OUTER RH
61401-32010

CV10,SV1#

 1
61412 - PANEL, ROCKER, OUTER LH
61402-32010

CV10,SV1#

 1
61611 - PANEL, QUARTER, RH
61601-32030

CV10,SV1#..5D

 1
61612 - PANEL, QUARTER, LH
61602-32040

CV10,SV1#..5D

 1
61623B - TROUGH, BACK DOOR OPENING, REAR RH
61623-32901

CV10,SV1#..5D

 1
61624B - TROUGH, BACK DOOR OPENING, REAR LH
61624-32900

SV1#..5D

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61603-32900

CV1#,SV1#

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61604-32900

CV1#,SV1#

 1
61698D - HOUSING, QUARTER PANEL END, LH
61698-32020

CV1#,SV1#..5D

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-32902

SV1#..5D

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-32902

SV1#..5D

 1
67812A - PAD, QUARTER PANEL SILENCER
67812-32010

CV1#,SV1#

40X20

 2
Common parts
90333-30002
90950-01056
91631-40612
Linked diagrams
7601
