SV10-UHPZS (1982)
Toyota Camry/Vista
(8203-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-3201001 |
SV10 BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55011-3201006 |
SV10 DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55011-3201101 |
CV10,SV1# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55011-3201106 |
SV1# DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-32010 |
CV10,SV1# |
1 | ||
| 55330-32011 |
CV10,SV1# |
1 | ||
| 55337 - REINFORCEMENT, INSTRUMENT PANEL SUB | ||||
| 55337-32010 |
CV1#,SV1# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-32010 |
CV10,SV1# |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-32010 |
CV1#,SV1# |
1 | ||
| 55356A - PLATE, INSTRUMENT PANEL, LOWER | ||||
| 55356-32010 |
CV10,SV1# |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-32010 |
CV1#,SV1# |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-32010 |
CV1#,SV1# |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-32010 |
SV10 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55404-3201014 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55404-3201004 |
SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55404-3201013 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55404-3201003 |
SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55404-3201006 |
SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55401-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55401-3201006 |
SV10 DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55401-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55404B - CLIP, SAFETY PAD SET | ||||
| 90467-14002 |
CV1#,SV1# |
2 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55473-3201003 |
CV10,SV1# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-3201006 |
CV10,SV1# RH,BROWN,BROWN,TRIM4# |
1 | ||
| 55472-3201003 |
CV10,SV1# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-3201004 |
CV10,SV1# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-3201004 |
CV10,SV1# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-3201006 |
CV10,SV1# LH,BROWN,BROWN,TRIM4# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55473-3201003 |
CV10,SV1# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-3201006 |
CV10,SV1# RH,BROWN,BROWN,TRIM4# |
1 | ||
| 55472-3201003 |
CV10,SV1# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-3201004 |
CV10,SV1# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-3201004 |
CV10,SV1# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-3201006 |
CV10,SV1# LH,BROWN,BROWN,TRIM4# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-32010 |
CV10,SV1# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-3201001 |
SV1# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55405-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55405-3201006 |
SV1# DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55432-3201006 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 55432-3201003 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-3201006 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 55434-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55434-3201003 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-3202004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55440-3202006 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55440-3202003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 90541-03015 |
CV1#,SV1# |
3 | ||
| 55466A - RETAINER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55466-32020 |
SV1# |
4 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-14050 |
CV1#,SV1# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-3201003 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 55560-3201006 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 55560-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-32010 |
CV10,SV1# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-3202004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55550-3202003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 55550-3202006 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
CV10,SV1# |
3 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
CV10,SV1# BLACK |
3 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
CV10,SV1# BLACK |
3 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
CV10,SV1# BLACK |
3 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-3201001 |
SV1# BLACK,BLACK,TRIM1#,8# |
2 | ||
| 55548-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
2 | ||
| 55548-3201006 |
SV1# DEEP BROWN,BROWN,TRIM4# |
2 | ||
| 55548-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
2 | ||
| 55548-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
2 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-3201001 |
SV1# BLACK,BLACK,TRIM1#,8# |
2 | ||
| 55548-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
2 | ||
| 55548-3201006 |
SV1# DEEP BROWN,BROWN,TRIM4# |
2 | ||
| 55548-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
2 | ||
| 55548-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
CV10,SV1# |
4 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
CV10,SV1# |
4 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-32010 |
CV1#,SV1# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32010 |
CV1#,SV1# |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32010 |
CV1#,SV1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-3201003 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 55650-3201006 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 55650-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-3201003 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 55660-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55660-3201006 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55670-3201003 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 55670-3201006 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-3201006 |
SV1# DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55961-3201001 |
CV10,SV1# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55981-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55981-3201006 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55982-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55982-3201006 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40065 | ||||
| 90159-50184 | ||||
| 90159-50203 | ||||
| 90159-60125 | ||||
| 90167-50018 | ||||
| 90179-06070 | ||||
| 90179-08025 | ||||
| 90183-05005 | ||||
| 90183-05013 | ||||
| 90183-05094 | ||||
| 90189-05024 | ||||
| 90463-04004 | ||||
| 91655-40616 | ||||
| 91655-40618 | ||||
| 91655-60820 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||

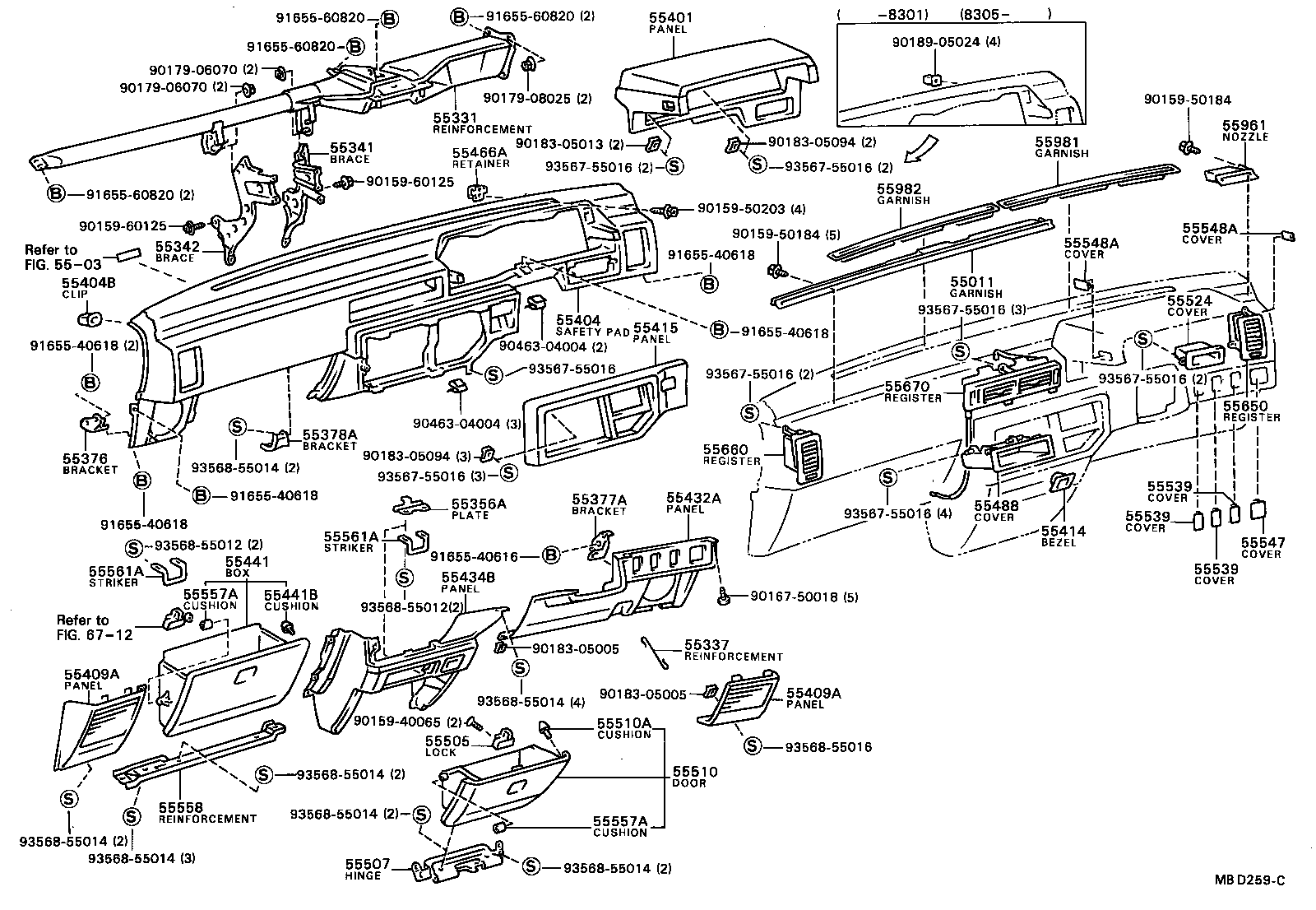

| Linked diagrams | ||||
| 5503 | ||||
| 6712 | ||||
