SV10-UHPNL (1984)
Toyota Camry/Vista

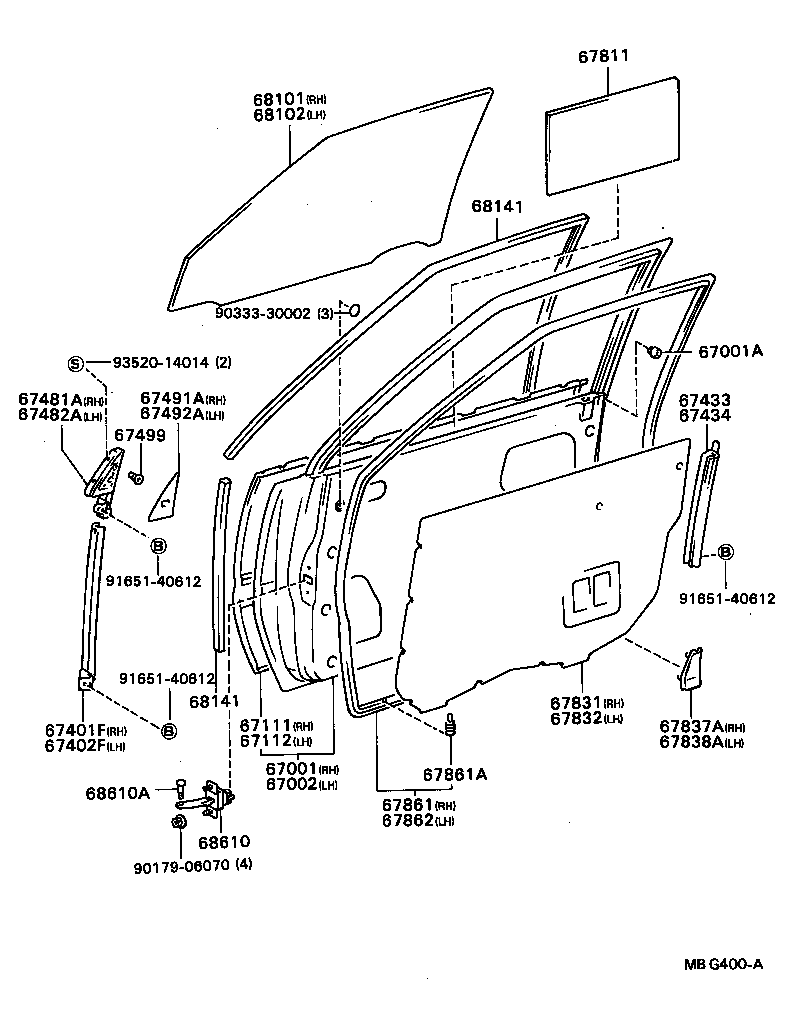

ILLUST NO. 1 OF 2(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV1#,SV1# |
4 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32010 |
CV1#,SV1# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32010 |
CV1#,SV1# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-32010 |
CV10,SV1# W/O DOOR MIRROR |
1 | ||
| 67401-32060 |
CV1#,SV1# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-32060 |
CV1#,SV1# |
1 | ||
| 67402-32010 |
CV10,SV1# W/O DOOR MIRROR |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67433-32010 |
CV1#,SV1# |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67434-32010 |
CV1#,SV1# |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-32070 |
CV1#,SV1#..5D W/DOOR MIRROR |
1 | ||
| 67481-32050 |
CV1#,SV1#..5D W/O DOOR MIRROR |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-32040 |
CV1#,SV1#..5D W/O DOOR MIRROR |
1 | ||
| 67482-32060 |
CV1#,SV1#..5D W/DOOR MIRROR |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-32010 |
CV1#,SV1# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32010 |
SV1# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32010 |
SV1# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32070 |
CV1#,SV1#..5D |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
CV1#,SV1# |
40 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32070 |
CV1#,SV1#..5D |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-32080 |
CV1#,SV10..5D..VL SUPER EXTRA,BRONZE,*TT,T=4.0 |
1 | ||
| 68111-32070 |
CV1#,SV1#..5D *TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-32070 |
CV1#,SV1#..5D *TT,T=4.0 |
1 | ||
| 68112-32080 |
CV1#,SV10..5D..VL SUPER EXTRA,BRONZE,*TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-20050 |
CV10,SV1# W/O DOOR MIRROR,SHORT |
2 | ||
| 68143-32030 |
CV1#,SV1# SHORT |
2 | ||
| 68141-32060 |
CV1#,SV1#..5D LONG |
2 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-20050 |
CV10,SV1# W/O DOOR MIRROR,SHORT |
2 | ||
| 68143-32030 |
CV1#,SV1# SHORT |
2 | ||
| 68141-32060 |
CV1#,SV1#..5D LONG |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32030 |
CV1#,SV1# |
2 | ||
| 68610-32010 |
CV10,SV1# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
CV10,SV1# |
2 | ||
| 68617-12010 |
CV10,SV1# |
2 | ||
| 68617-90A00 |
CV1#,SV1# |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 91651-40612 | ||||
| 93520-14014 | ||||

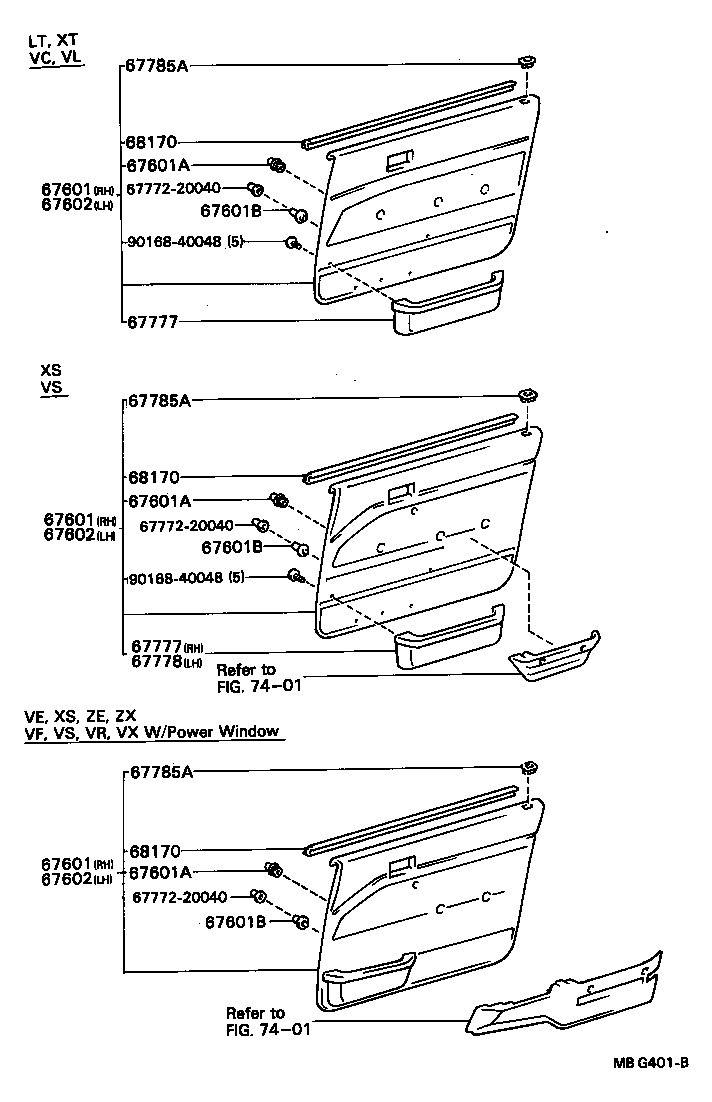

ILLUST NO. 2 OF 2(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3202003 |
SV10..VL,XT GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3202004 |
SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3202006 |
SV10..VL,XT BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3226005 |
SV10..VL,XT BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3226004 |
SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3226003 |
SV10..VL,XT SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292005 |
SV10..VL SUPER EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292605 |
SV10..VL GRAND EXTRA,BEIGE |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3202003 |
SV10..VL,XT GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3202004 |
SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3202006 |
SV10..VL,XT BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3226005 |
SV10..VL,XT BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3226004 |
SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3226003 |
SV10..VL,XT SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292005 |
SV10..VL SUPER EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292605 |
SV10..VL GRAND EXTRA,BEIGE |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3202003 |
SV10..VL,XT GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3202004 |
SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3202006 |
SV10..VL,XT BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3226005 |
SV10..VL,XT BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3226004 |
SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3226003 |
SV10..VL,XT SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3292005 |
SV10..VL SUPER EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3292605 |
SV10..VL GRAND EXTRA,BEIGE |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
SV10 TYPE A,L=20.7 |
20 | ||
| 67771-14010 |
CV10,SV1# TYPE C |
2 | ||
| 67771-22010 |
CV1#,SV1# |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
SV10 TYPE A,L=20.7 |
20 | ||
| 67771-14010 |
CV10,SV1# TYPE C |
2 | ||
| 67771-22010 |
CV1#,SV1# |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
SV10 TYPE A,L=20.7 |
20 | ||
| 67771-14010 |
CV10,SV1# TYPE C |
2 | ||
| 67771-22010 |
CV1#,SV1# |
20 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704304 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 90467-0704305 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
2 | ||
| 90467-0704303 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704304 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 90467-0704305 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
2 | ||
| 90467-0704303 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704304 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 90467-0704305 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
2 | ||
| 90467-0704303 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3202003 |
SV10..VL,XT GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3202006 |
SV10..VL,XT BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3202004 |
SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3233004 |
CV1#,SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3233003 |
CV1#,SV10..VL,XT SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3233005 |
CV1#,SV10..VL,XT BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291805 |
CV1#,SV10..VL SUPER EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292205 |
CV11,SV10..VL GRAND EXTRA,BEIGE |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3202003 |
SV10..VL,XT GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3202006 |
SV10..VL,XT BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3202004 |
SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3233004 |
CV1#,SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3233003 |
CV1#,SV10..VL,XT SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3233005 |
CV1#,SV10..VL,XT BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291805 |
CV1#,SV10..VL SUPER EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292205 |
CV11,SV10..VL GRAND EXTRA,BEIGE |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3202003 |
SV10..VL,XT GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3202006 |
SV10..VL,XT BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3202004 |
SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3233004 |
CV1#,SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3233003 |
CV1#,SV10..VL,XT SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3233005 |
CV1#,SV10..VL,XT BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3291805 |
CV1#,SV10..VL SUPER EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3292205 |
CV11,SV10..VL GRAND EXTRA,BEIGE |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2007003 |
CV1#,SV10..VL,XT SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67777-2007005 |
CV1#,SV10..VL,XT BEIGE,BEIGE,TRIM4# |
1 | ||
| 67777-2007004 |
CV1#,SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2007003 |
CV1#,SV10..VL,XT SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67777-2007005 |
CV1#,SV10..VL,XT BEIGE,BEIGE,TRIM4# |
1 | ||
| 67777-2007004 |
CV1#,SV10..VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-2006003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006005 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
2 | ||
| 69751-2006004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-2006003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006005 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
2 | ||
| 69751-2006004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-2006003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006005 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
2 | ||
| 69751-2006004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32010 |
SV1# |
2 | ||
| 68170-32020 |
CV1#,SV1# RH |
1 | ||
| 68220-32040 |
CV10,SV1# LH |
1 | ||
| 68170-32030 |
CV10,SV1# RH |
1 | ||
| 68220-32020 |
CV1#,SV1# LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32010 |
SV1# |
2 | ||
| 68170-32020 |
CV1#,SV1# RH |
1 | ||
| 68220-32040 |
CV10,SV1# LH |
1 | ||
| 68170-32030 |
CV10,SV1# RH |
1 | ||
| 68220-32020 |
CV1#,SV1# LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32010 |
SV1# |
2 | ||
| 68170-32020 |
CV1#,SV1# RH |
1 | ||
| 68220-32040 |
CV10,SV1# LH |
1 | ||
| 68170-32030 |
CV10,SV1# RH |
1 | ||
| 68220-32020 |
CV1#,SV1# LH |
1 | ||
| Common parts | ||||
| 67772-20040 | ||||
| 90168-40048 | ||||
| Linked diagrams | ||||
| 7401 | ||||
