SV10-UHPGL (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )VIS

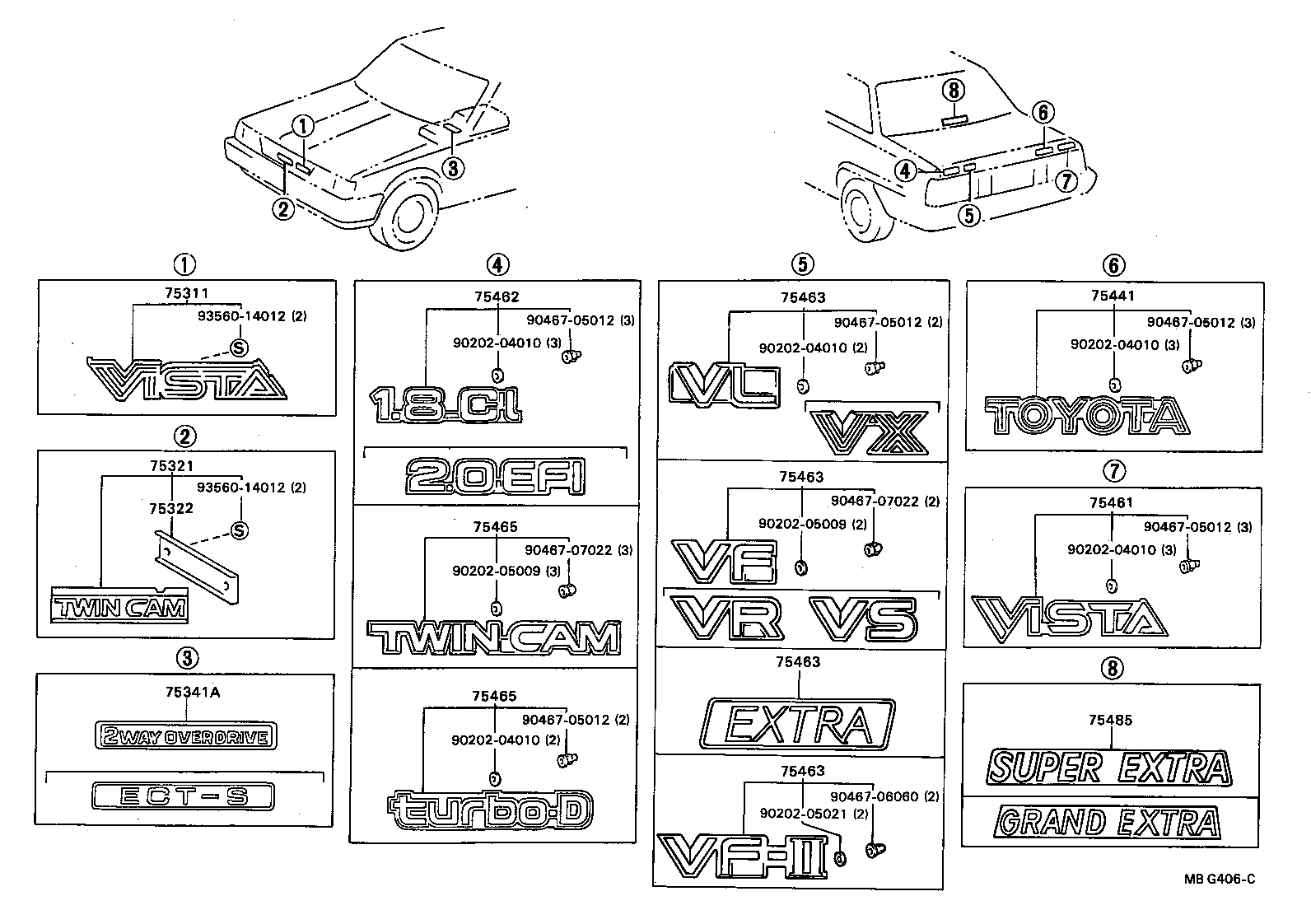

Click highlighted areas on diagram

diagram 75311 75321 75322 75341A 75441 75461 75462 75463 75463 75463 75463 75465 75465 75485 9020204010 9020204010 9020204010 9020204010 9020204010 9020205009 9020205009 9020205021 9046705012 9046705012 9046705012 9046705012 9046705012 9046706060 9046707022 9046707022 9356014012 9356014012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-39125

CV10,SV1#..VIS

 1
75311-39175

CV1#,SV1#..VIS

 1
75341A - PLATE, CONSOLE BOX NAME, NO.1
58835-32010

CV1#,SV10..4FC

 1
75441 - PLATE, REAR NAME, NO.1
75441-32010

CV1#,SV1#

TOYOTA

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75444-32040

SV10

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-32130

SV10..VR

VR

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-32130

SV10..VR

VR

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-32130

SV10..VR

VR

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-32130

SV10..VR

VR

 1
Common parts
90202-04010
90202-05009
90202-05021
90467-05012
90467-06060
90467-07022
93560-14012
