SV10-UHMZS (1982)
Toyota Camry/Vista

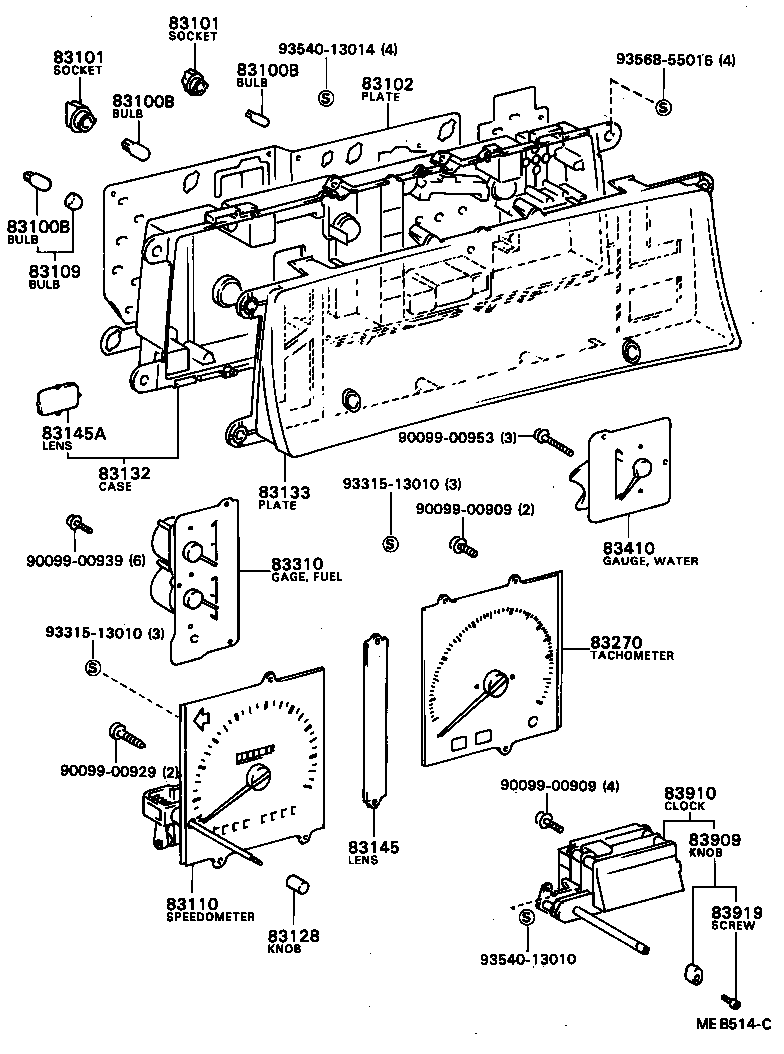

ILLUST NO. 1 OF 2(8203-8406)SE,VE,XE ; (8210-8212)VL ; (8301-8406)VL,XT ; (8406- )VF,VL,VR,VS,VX,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
CV1#,SV1# 12V 3.4W,12V 3.4W |
14 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
CV1#,SV1# 12V 3.4W,12V 3.4W |
14 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
CV1#,SV1# 12V 3.4W,12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX 12V 1.4W |
11 | ||
| 83101-32010 |
SV1#..VX,ZX 12V 1.4W,LONG |
1 | ||
| 83101-14030 |
CV1#,SV1# 12V 3.4W |
14 | ||
| 83101-12020 |
SV1#..VR,VS,VX,XS,ZE,ZX 12V 3.4W,LONG |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX 12V 1.4W |
11 | ||
| 83101-32010 |
SV1#..VX,ZX 12V 1.4W,LONG |
1 | ||
| 83101-14030 |
CV1#,SV1# 12V 3.4W |
14 | ||
| 83101-12020 |
SV1#..VR,VS,VX,XS,ZE,ZX 12V 3.4W,LONG |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-32070 |
SV1#..VX,ZX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
SV1#..VX,ZX 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
2 | ||
| 83109-24010 |
SV1#..VX,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32080 |
SV1#..VX,ZX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32030 |
SV1#..VR,VS,VX,XS,ZE,ZX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32090 |
SV1#..VX,ZX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32050 |
SV1#..VX,ZX |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-14060 |
SV1#..VX,ZX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-14080 |
SV1#..VX,ZX |
1 | ||
| 83310-14081 |
SV1#..VX,ZX |
1 | ||
| 83310-14082 |
SV1#..VX,ZX |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
SV1#..VR,VS,VX,XS,ZE,ZX W/DIGITAL SPEEDOMETER |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14270 |
SV1#..VR,VS,VX,XS,ZE,ZX W/DIGITAL SPEEDOMETER |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90099-00953 | ||||
| 93315-13010 | ||||
| 93540-13010 | ||||
| 93540-13014 | ||||
| 93568-55016 | ||||

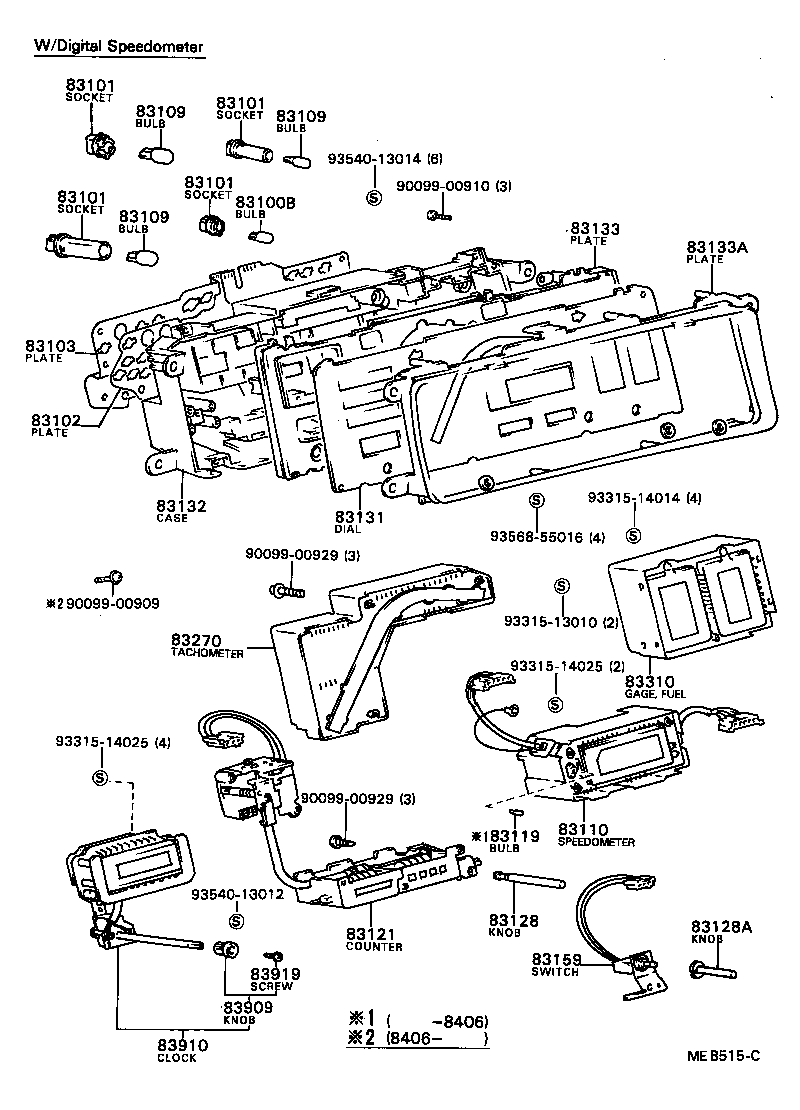

ILLUST NO. 1 OF 2(8203-8406)VX,ZX ; (8406-8412)SV1#..VR,VS,VX,XE,XS,ZX ; (8412- )VX,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
CV1#,SV1# 12V 3.4W,12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX 12V 1.4W |
11 | ||
| 83101-32010 |
SV1#..VX,ZX 12V 1.4W,LONG |
1 | ||
| 83101-14030 |
CV1#,SV1# 12V 3.4W |
14 | ||
| 83101-12020 |
SV1#..VR,VS,VX,XS,ZE,ZX 12V 3.4W,LONG |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX 12V 1.4W |
11 | ||
| 83101-32010 |
SV1#..VX,ZX 12V 1.4W,LONG |
1 | ||
| 83101-14030 |
CV1#,SV1# 12V 3.4W |
14 | ||
| 83101-12020 |
SV1#..VR,VS,VX,XS,ZE,ZX 12V 3.4W,LONG |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX 12V 1.4W |
11 | ||
| 83101-32010 |
SV1#..VX,ZX 12V 1.4W,LONG |
1 | ||
| 83101-14030 |
CV1#,SV1# 12V 3.4W |
14 | ||
| 83101-12020 |
SV1#..VR,VS,VX,XS,ZE,ZX 12V 3.4W,LONG |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX 12V 1.4W |
11 | ||
| 83101-32010 |
SV1#..VX,ZX 12V 1.4W,LONG |
1 | ||
| 83101-14030 |
CV1#,SV1# 12V 3.4W |
14 | ||
| 83101-12020 |
SV1#..VR,VS,VX,XS,ZE,ZX 12V 3.4W,LONG |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-32070 |
SV1#..VX,ZX |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-32090 |
SV1#..VX,ZX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
SV1#..VX,ZX 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
2 | ||
| 83109-24010 |
SV1#..VX,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
4 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
SV1#..VX,ZX 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
2 | ||
| 83109-24010 |
SV1#..VX,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
4 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
SV1#..VX,ZX 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
2 | ||
| 83109-24010 |
SV1#..VX,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32080 |
SV1#..VX,ZX |
1 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24010 |
SV1#..VX,ZX 12V 1.4W ｿｹｯﾄ付き,SPEED WARNING |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-32010 |
SV1#..VR,VS,VX,XS,ZE,ZX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32030 |
SV1#..VR,VS,VX,XS,ZE,ZX |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-32050 |
SV1#..VR,VS,VX,XS,ZE,ZX |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-32010 |
SV10..VX,ZX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32090 |
SV1#..VX,ZX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32050 |
SV1#..VX,ZX |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32070 |
SV1#..VR,VS,VX,XS,ZE,ZX |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-32010 |
SV1#..VR,VS,VX,XS,ZE,ZX |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-14060 |
SV1#..VX,ZX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-14080 |
SV1#..VX,ZX |
1 | ||
| 83310-14081 |
SV1#..VX,ZX |
1 | ||
| 83310-14082 |
SV1#..VX,ZX |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
SV1#..VR,VS,VX,XS,ZE,ZX W/DIGITAL SPEEDOMETER |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14270 |
SV1#..VR,VS,VX,XS,ZE,ZX W/DIGITAL SPEEDOMETER |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 93315-13010 | ||||
| 93315-14014 | ||||
| 93315-14025 | ||||
| 93540-13012 | ||||
| 93540-13014 | ||||
| 93568-55016 | ||||
