SV10-UHMNL (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )1SILU

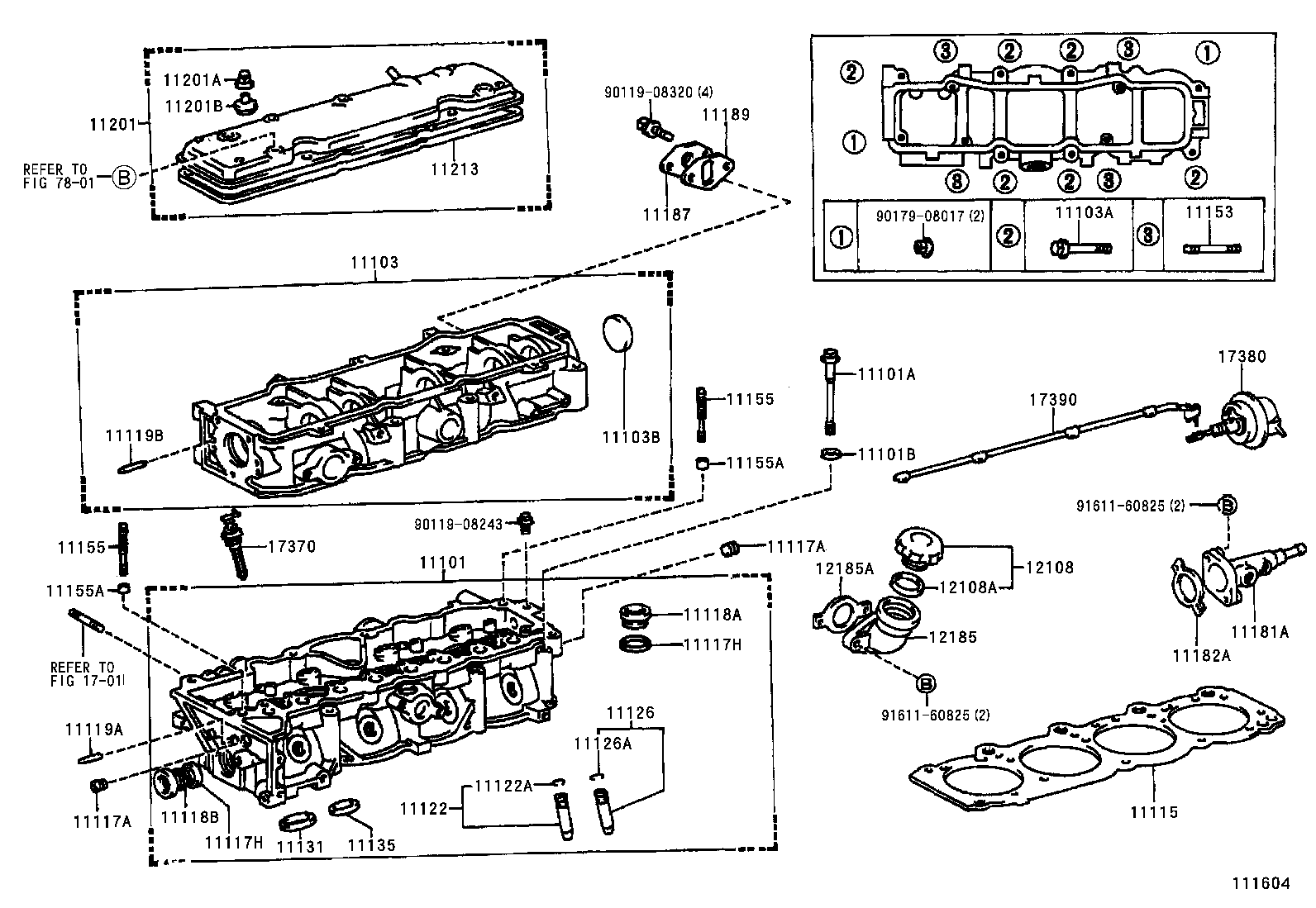

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11103 11103A 11103B 11115 11117A 11117A 11117H 11117H 11118A 11118B 11119A 11119B 11122 11122A 11126 11126A 11131 11135 11153 11155 11155 11155A 11155A 11181A 11182A 11187 11189 11201 11201A 11201B 11213 12108 12108A 12185 12185A 1701 17370 17380 17390 7801 9011908243 9011908320 9017908017 9161160825 9161160825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-63030

1SILU..SV10

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10048

1S#,2SELU..SV10,11

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

1S#,2SELU..SV10,11

 10
11103 - HOUSING SUB-ASSY, CAMSHAFT
11103-63900

1SILU,2SELU..SV10,11

 1
11103A - BOLT(FOR CAMSHAFT HOUSING SET)
91511-60865

1S#,2SELU..SV10,11

 6
11103B - PLUG, TIGHT, NO.1(FOR CAM HOUSING)
96411-45000

1S#,2SELU..SV10,11

OD=50

 1
11115 - GASKET, CYLINDER HEAD
11115-63010

1S#..SV10

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-52013

1S#,2SELU..SV10,11

 2
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-52013

1S#,2SELU..SV10,11

 2
11117H - GASKET(FOR WATER HOLE)
90430-20004

1S#,2SELU..SV10,11

PNC 11118A

 2
90430-24246

1S#,2SELU..SV10,11

PNC 11118B

 1
11117H - GASKET(FOR WATER HOLE)
90430-20004

1S#,2SELU..SV10,11

PNC 11118A

 2
90430-24246

1S#,2SELU..SV10,11

PNC 11118B

 1
11118A - PLUG, STRAIGHT, NO.1
90341-20002

1S#,2SELU..SV10,11

 2
11118B - PLUG, STRAIGHT, NO.2
90341-24090

1S#,2SELU..SV10,11

 1
11119A - PIN, STRAIGHT, NO.1
90250-06003

1S#,2SELU,3SGELU..SV1#

長さ=14,外径=6

 1
11119B - PIN, STRAIGHT, NO.2
90250-06003

1S#,2SELU..SV10,11

長さ=14,外径=6

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-63020

1S#,2SELU..SV10,11

STD,STD

 4
11123-63020

1S#,2SELU..SV10,11

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

1S#,2SELU..SV10,11

 4
90520-12049

1SILU,2SELU..SV10,11

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-63020

1S#,2SELU..SV10,11

O/S 0.05,O/S 0.05

 4
11126-63020

1S#,2SELU..SV10,11

STD,STD

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

1SILU,2SELU..SV10,11

 4
90520-12049

1S#,2SELU..SV10,11

 4
11131 - SEAT, INTAKE VALVE
11132-63010

1S#,2SELU..SV10,11

O/S 0.03,O/S 0.03

 4
11131-63010

1S#,2SELU..SV10,11

STD,STD

 4
11135 - SEAT, EXHAUST VALVE
11136-63010

1S#,2SELU..SV10,11

O/S 0.03,O/S 0.03

 4
11135-63010

1S#,2SELU..SV10,11

STD,STD

 4
11153 - BOLT, STUD(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
92122-40650

1S#,2SELU..SV10,11

 4
11155 - BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
90116-08150

1S#,2SELU..SV10,11

L=105,S=12&26

 2
11155 - BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
90116-08150

1S#,2SELU..SV10,11

L=105,S=12&26

 2
11155A - PIN, RING W/HEAD
90253-13017

1S#,2SELU..SV10,11

 2
11155A - PIN, RING W/HEAD
90253-13017

1S#,2SELU..SV10,11

 2
11181A - COVER, CYLINDER HEAD, REAR
11108-63020

1SILU..SV10

 1
11182A - GASKET, CYLINDER HEAD REAR COVER
16341-63010

1S#,2SELU..SV10,11

 1
11187 - COVER, CAMSHAFT HOUSING, REAR
11187-63020

1S#,2SELU..SV10,11

 2
11189 - GASKET, CAMSHAFT HOUSING REAR COVER
11117-63010

1S#,2SELU..SV10,11

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-69085

1S#,2SELU..SV10,11

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06008

1S#,2SELU..SV10,11

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08020

1S#,2SELU..SV10,11

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-63010

1S#,2SELU..SV10,11

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

1S#,2SELU..SV10,11

 1
12180-13030

1SILU,2SELU..SV10,11

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1S#,2SELU,3SGELU..SV1#

 1
12185 - HOUSING, OIL FILLER CAP
12185-63010

1S#,2SELU..SV10,11

 1
12185A - GASKET, OIL FILLER CAP HOUSING
16341-63010

1S#,2SELU..SV10,11

 1
17370 - VALVE ASSY, SWIRL CONTROL
17370-15010

1SILU..SV10

 4
17380 - ACTUATOR ASSY, SWIRL CONTROL
17380-63010

1SILU..SV10

 1
17380-63020

1SILU..SV10

 1
17390 - LINK ASSY, SWIRL CONTROL
17390-63010

1SILU..SV10

 1
Common parts
90119-08243
90119-08320
90179-08017
91611-60825
Linked diagrams
1701
7801
