Toyota Camry/vista SV10 VACUUM PIPING

SV10-UHMEL (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986

Engine 1SILU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

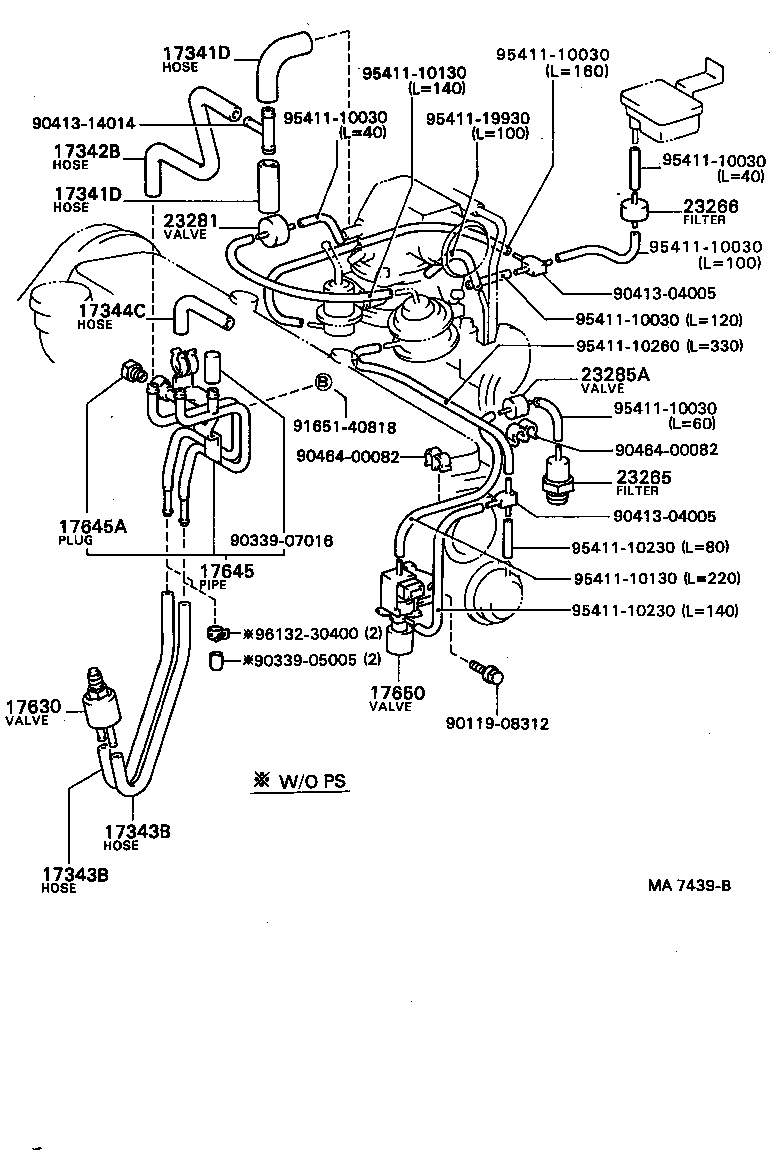

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-63030	1SILU..SV10 CONNECTOR TO 3WAY	06/1984 - 07/1986	1
90445-19002	1SILU..SV10 3WAY TO AIR VALVE	06/1984 - 07/1986	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-63030	1SILU..SV10 CONNECTOR TO 3WAY	06/1984 - 07/1986	1
90445-19002	1SILU..SV10 3WAY TO AIR VALVE	06/1984 - 07/1986	1
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-13006	1SILU..SV10	07/1984 - 07/1986	1
17344-63010	1SILU..SV10	06/1984 - 07/1984	1
17344C - HOSE, NO.4(FOR IDLE-UP)
17345-63010	1SILU..SV10	06/1984 - 07/1986	1
17630 - VALVE ASSY, AIR CONTROL
17630-70020	1SILU,2SELU,3SGELU..SV1# W/POWER STEERING	06/1984 - 07/1986	1
17645 - PIPE, IDLE UP
17645-63020	1SILU..SV10	08/1985 - 07/1986	1
17645-63010	1SILU..SV10	06/1984 - 08/1985	1
17645A - PLUG(FOR IDLE UP PIPE)
90072-34107	1SILU..SV10	06/1984 - 07/1986	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-20220	1SILU..SV10	06/1984 - 08/1985	1
90910-12011	1SILU..SV10	08/1985 - 07/1986	1
23265 - FILTER, GAS, NO.1
90917-11022	1SILU..SV10	06/1984 - 07/1986	1
23266 - FILTER, GAS, NO.2
90917-11021	1SILU..SV10	06/1984 - 07/1986	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01015	1SILU..SV10..5F	06/1984 - 08/1985	1
90925-01041	1SILU..SV10	08/1985 - 07/1986	1
23285A - VALVE, CHECK, NO.1
90917-10049	1SILU..SV10	06/1984 - 07/1986	3
Common parts
90119-08312
90339-05005
90339-07016
90413-04005
90413-14014
90464-00082
91651-40818
95411-10030
95411-10130
95411-10230
95411-10260
95411-19930
96132-30400

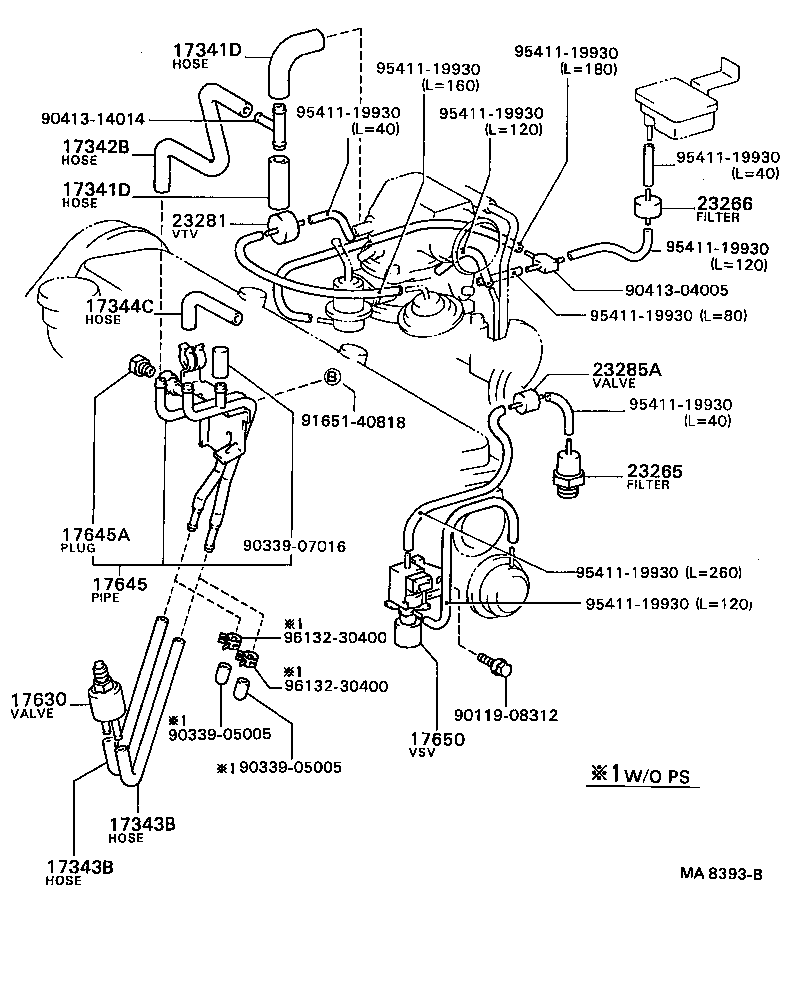

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-63030	1SILU..SV10 CONNECTOR TO 3WAY	06/1984 - 07/1986	1
90445-19002	1SILU..SV10 3WAY TO AIR VALVE	06/1984 - 07/1986	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-63030	1SILU..SV10 CONNECTOR TO 3WAY	06/1984 - 07/1986	1
90445-19002	1SILU..SV10 3WAY TO AIR VALVE	06/1984 - 07/1986	1
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-13006	1SILU..SV10	07/1984 - 07/1986	1
17344-63010	1SILU..SV10	06/1984 - 07/1984	1
17344C - HOSE, NO.4(FOR IDLE-UP)
17345-63010	1SILU..SV10	06/1984 - 07/1986	1
17630 - VALVE ASSY, AIR CONTROL
17630-70020	1SILU,2SELU,3SGELU..SV1# W/POWER STEERING	06/1984 - 07/1986	1
17645 - PIPE, IDLE UP
17645-63020	1SILU..SV10	08/1985 - 07/1986	1
17645-63010	1SILU..SV10	06/1984 - 08/1985	1
17645A - PLUG(FOR IDLE UP PIPE)
90072-34107	1SILU..SV10	06/1984 - 07/1986	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-20220	1SILU..SV10	06/1984 - 08/1985	1
90910-12011	1SILU..SV10	08/1985 - 07/1986	1
23265 - FILTER, GAS, NO.1
90917-11022	1SILU..SV10	06/1984 - 07/1986	1
23266 - FILTER, GAS, NO.2
90917-11021	1SILU..SV10	06/1984 - 07/1986	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01015	1SILU..SV10..5F	06/1984 - 08/1985	1
90925-01041	1SILU..SV10	08/1985 - 07/1986	1
23285A - VALVE, CHECK, NO.1
90917-10049	1SILU..SV10	06/1984 - 07/1986	3
Common parts
90119-08312
90339-05005
90339-07016
90413-04005
90413-14014
91651-40818
95411-19930
96132-30400
