SV10-UEPNS (1982)

Toyota Camry/Vista

Production Jul 1982 - Jun 1984
Engine 1SLU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)4D ; (8406- )VIS..4D

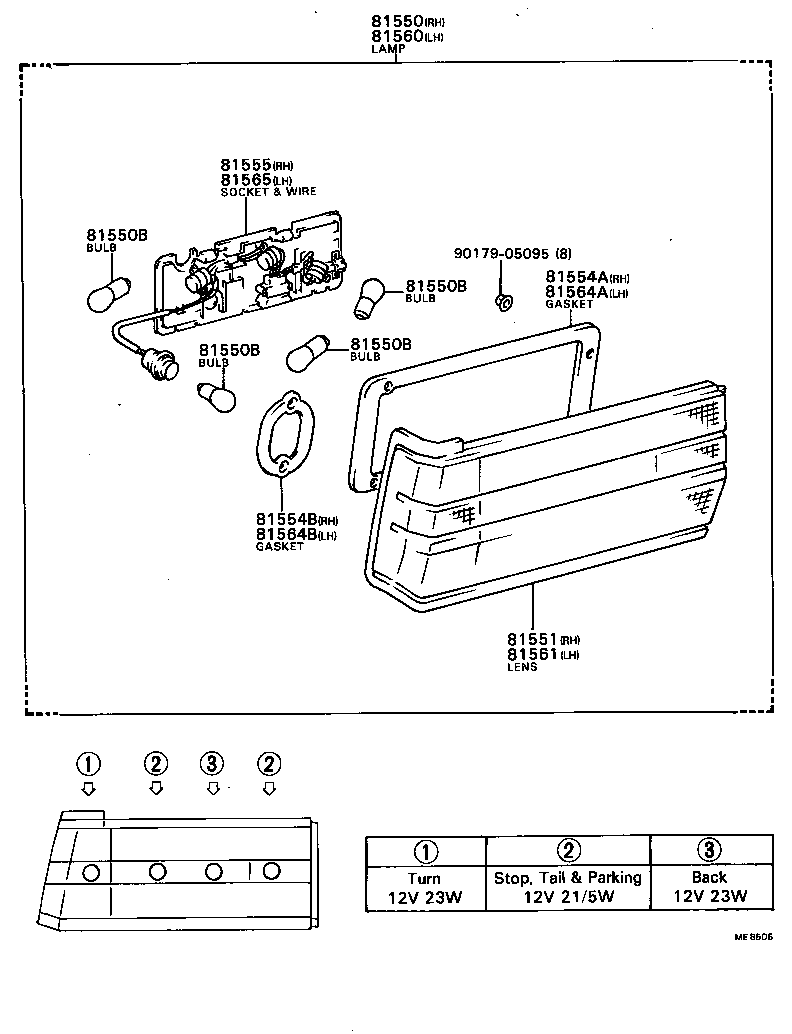

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81554A 81554B 81555 81560 81561 81564A 81564B 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-39655

CV10,SV1#..VIS..4D

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CV1#,SV1#

12V 21/5W,12V 21/5W

 4
99132-11230

CV1#,SV1#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CV1#,SV1#

12V 21/5W,12V 21/5W

 4
99132-11230

CV1#,SV1#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CV1#,SV1#

12V 21/5W,12V 21/5W

 4
99132-11230

CV1#,SV1#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CV1#,SV1#

12V 21/5W,12V 21/5W

 4
99132-11230

CV1#,SV1#

12V 23W,12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-32010

CV10,SV1#..VIS..4D

 1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81552-32010

CV1#,SV1#..VIS..4D

 1
81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH
81554-32010

CV1#,SV1#..VIS..4D

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-32010

CV10,SV1#..VIS..4D

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-39615

CV10,SV1#..VIS..4D

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-32010

CV10,SV1#..VIS..4D

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81552-32010

CV1#,SV1#..VIS..4D

 1
81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH
81554-32010

CV1#,SV1#..VIS..4D

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-32010

CV10,SV1#..VIS..4D

 1
Common parts
90179-05095
