SV10-UEPGL (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )

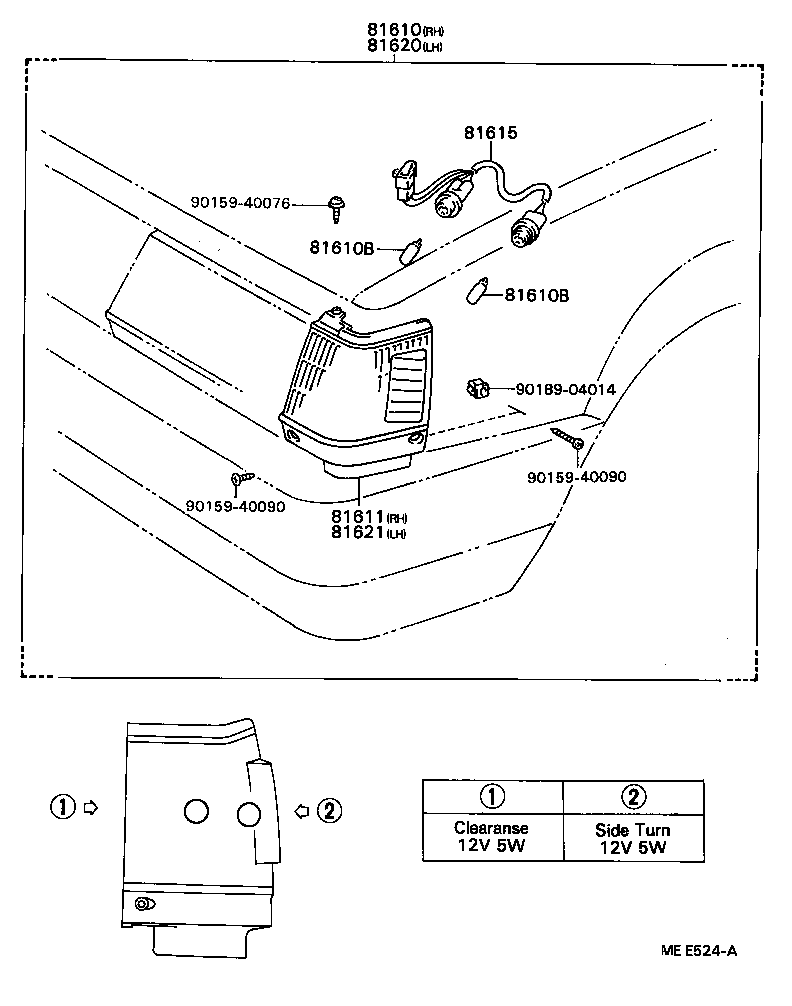

Click highlighted areas on diagram

diagram 81610 81610B 81610B 81611 81615 81620 81621 9015940076 9015940090 9015940090 9018904014
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-39696

CV1#,SV1#..VIS

 1
81610-39695

CV10,SV1#..VIS

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CV10,SV1#

12V 5W,12V 5W,NO.2

 2
90981-12010

CV1#,SV1#

12V 5W,12V 5W

 4
99132-11050

CV10,SV1#

12V 5W,12V 5W,NO.1

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CV10,SV1#

12V 5W,12V 5W,NO.2

 2
90981-12010

CV1#,SV1#

12V 5W,12V 5W

 4
99132-11050

CV10,SV1#

12V 5W,12V 5W,NO.1

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-32020

CV10,SV1#..VIS

 1
81611-32021

CV1#,SV1#..VIS

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-32020

CV10,SV1#

 2
81615-32010

CV1#,SV1#

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-39695

CV10,SV1#..VIS

 1
81620-39696

CV1#,SV1#..VIS

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-32021

CV1#,SV1#..VIS

 1
81621-32020

CV10,SV1#..VIS

 1
Common parts
90159-40076
90159-40090
90189-04014
