SV10-UEPGL (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )VIS

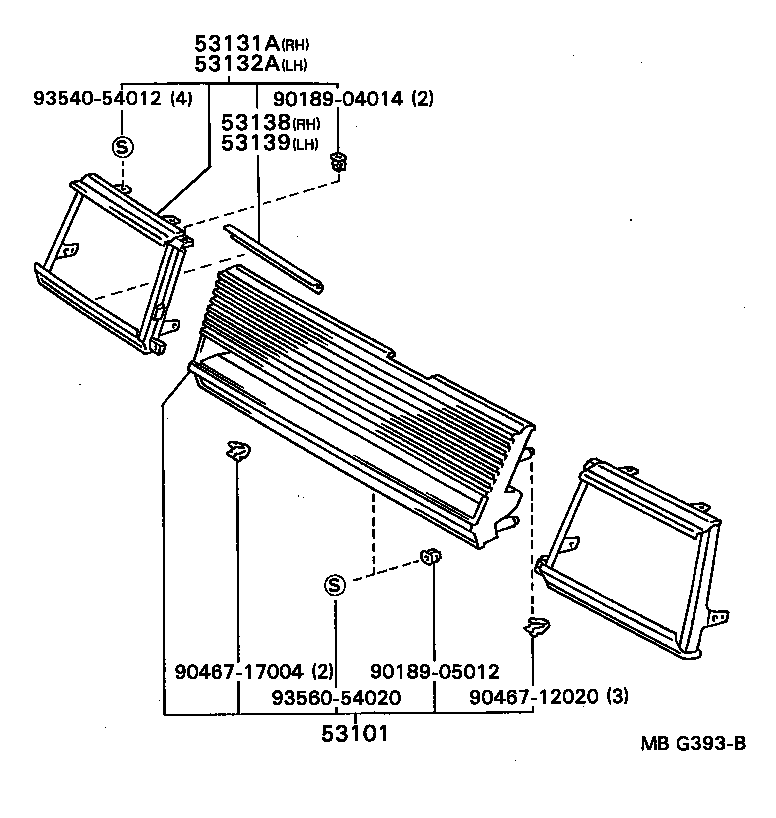

Click highlighted areas on diagram

diagram 53101 53131A 53132A 53138 53139 9018904014 9018905012 9046712020 9046717004 9354054012 9356054020
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-3903507

SV1#..VIS

SHADE GREEN-M,SHADOW GREEN M,6G1

 1
53101-3903508

SV1#..VIS

WHITE,WHITE,033

 1
53101-3903516

SV1#..VIS

LIGHT BROWN-M,LIGHT BROWN M,2E3

 1
53101-3903506

SV10..VIS

ORANGE-M,ORANGE M,3B3

 1
53101-3903517

SV1#..VIS

MINT GREEN-M,MINT GREEN M,6E9

 1
53101-3903502

SV10..VIS

BRICK RED-M,BRICK RED M,4B9

 1
53101-39075

CV1#,SV1#..VIS

 1
53101-3903503

SV1#..VIS

SILVER,SILVER,145

 1
53131A - DOOR, HEADLAMP, RH
53131-39215

CV1#,SV1#..VIS

 1
53131-39105

CV10,SV1#..VIS

 1
53132A - DOOR, HEADLAMP, LH
53132-39105

CV10,SV1#..VIS

 1
53132-39215

CV1#,SV1#..VIS

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53139-32030

CV1#,SV1#..VIS

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-32030

CV1#,SV1#..VIS

 1
Common parts
90189-04014
90189-05012
90467-12020
90467-17004
93540-54012
93560-54020
