SV10-UEMZS (1982)

Toyota Camry/Vista

Production Mar 1982 - Jun 1984
Engine 1SLU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)

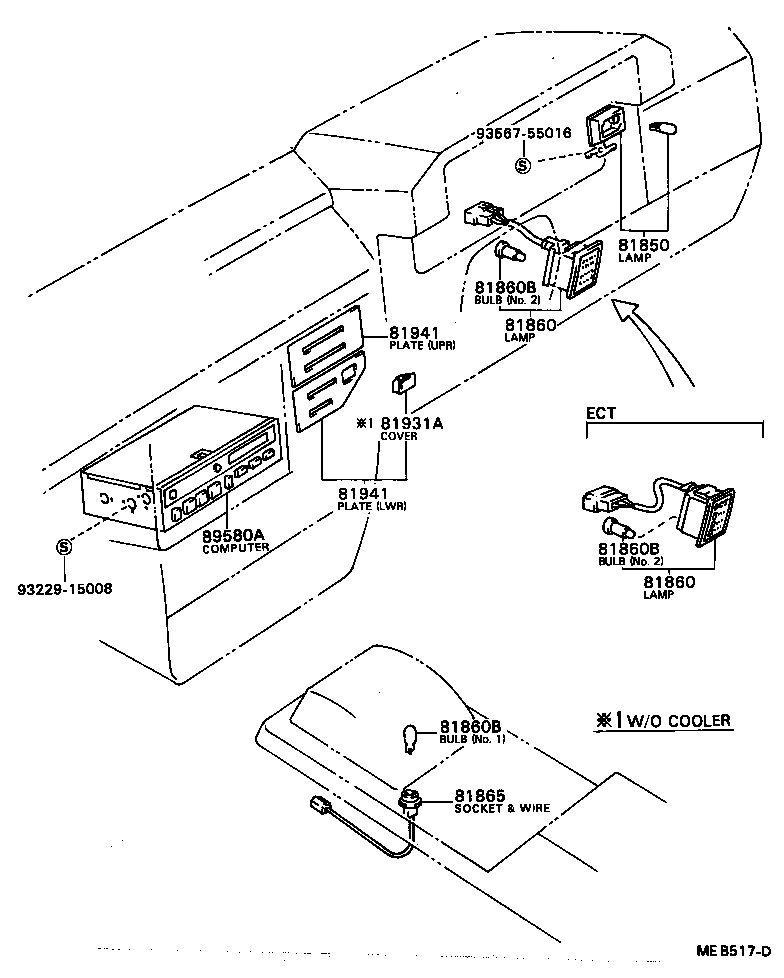

Click highlighted areas on diagram

diagram 81850 81860 81860 81860B 81860B 81860B 81865 81931A 81941 81941 89580A 9322915008 9356755016
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-32010

CV10,SV1#..SE,VE,VF,VX,XE,ZX

 1
81931A - COVER, COOLER SWITCH HOLE
55538-32010

CV1#,SV1#

 1
81941 - PLATE, HEATER CONTROL NAME
55519-32030

CV10,SV1#..SE,VE,VF,VX,XE,ZX

UPR,W/*AAC

 1
55519-32040

CV10,SV1#..SE,VE,VF,VX,XE,ZX

LWR,W/*AAC

 1
55519-32020

CV10,SV1#

LWR

 1
55519-32010

CV10,SV1#

UPR

 1
81941 - PLATE, HEATER CONTROL NAME
55519-32030

CV10,SV1#..SE,VE,VF,VX,XE,ZX

UPR,W/*AAC

 1
55519-32040

CV10,SV1#..SE,VE,VF,VX,XE,ZX

LWR,W/*AAC

 1
55519-32020

CV10,SV1#

LWR

 1
55519-32010

CV10,SV1#

UPR

 1
Common parts
93229-15008
93567-55016
