SV10-UEMZS (1982)

Toyota Camry/Vista

Production Mar 1982 - Jun 1984
Engine 1SLU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

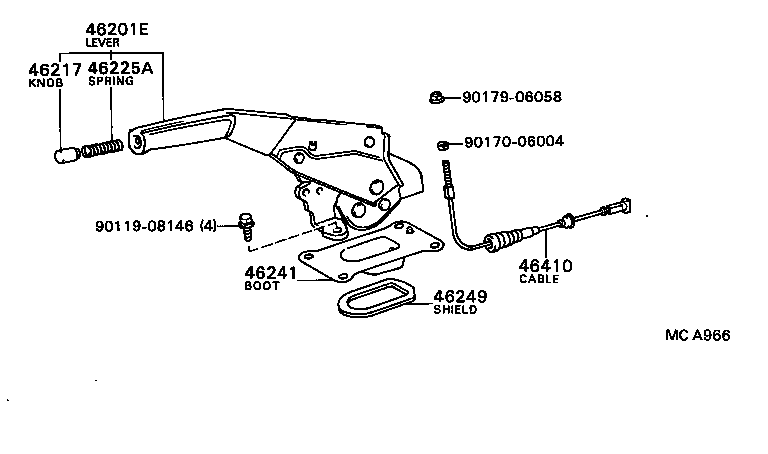

ILLUST NO. 1 OF 2(8203-8406) ; (8406- )VS,XS ; (8406- )5F..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46249 46410 9011908146 9017006004 9017906058
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-3202301

SV1#..SE,VE,VF,VX,XE,ZX

BLACK,BLACK,TRIM1#,8#

 1
46201-3202206

SV1#..SE,VE,VF,VX,XE,ZX

DEEP BROWN,BROWN,TRIM4#

 1
46201-3202201

SV1#..SE,VE,VF,VX,XE,ZX

BLACK,BLACK,TRIM1#,8#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002014

CV10,SV1#

BLUE,BLUE,TRIM8#

 1
46217-1002046

SV1#

DEEP BROWN,BROWN,TRIM4#

 1
46217-1002001

SV1#

BLACK,BLACK,TRIM1#,8#

 1
46217-1002026

CV10,SV1#

DARK BROWN,BROWN,TRIM4#

 1
46217-1002043

CV10,SV1#

DARK GRAY,GRAY,TRIM1#

 1
46217-2002013

CV10,SV1#

DARK GRAY,DARK GRAY,TRIM1#

 1
46217-2002004

CV10,SV1#

BLUE,BLUE,TRIM8#

 1
46217-2002016

CV10,SV1#

DARK BROWN,DARK BROWN,TRIM4#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10069

CV10,SV1#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-32010

CV10,SV1#

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-32010

CV1#,SV1#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-32010

CV10,SV1#

 1
Common parts
90119-08146
90170-06004
90179-06058

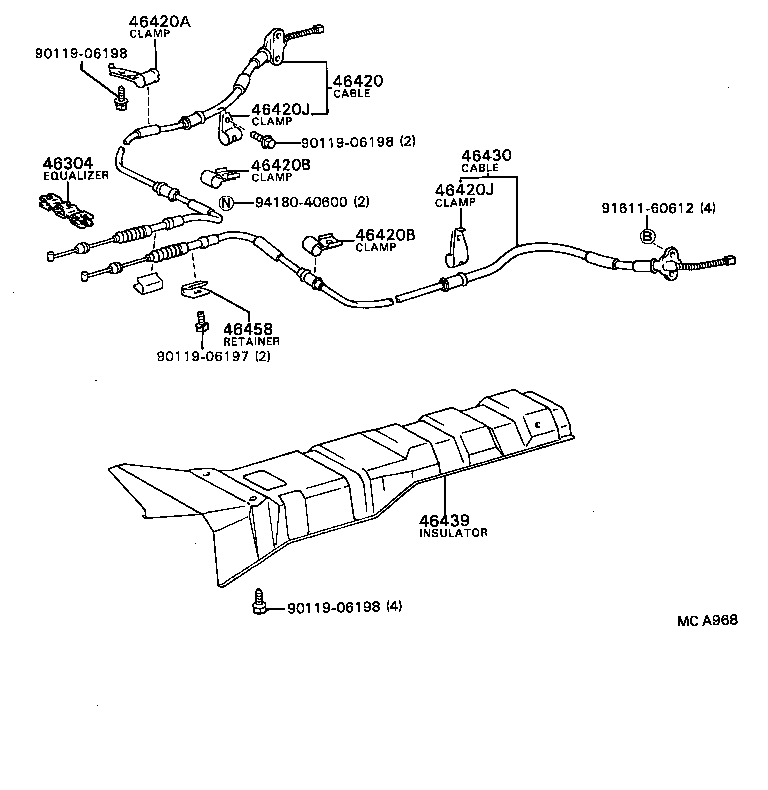

ILLUST NO. 2 OF 2(8203- )

Click highlighted areas on diagram

diagram 46304 46420 46420A 46420B 46420B 46420J 46420J 46430 46439 46458 9011906197 9011906198 9011906198 9011906198 9161160612 9418040600
Part # Description Qty Price
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-12010

CV10,SV1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-39015

CV10,SV1#

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01017

CV1#,SV1#

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01016

CV1#,SV1#

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01016

CV1#,SV1#

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01015

CV1#,SV1#

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01015

CV1#,SV1#

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-39015

CV10,SV1#

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-32010

SV1#

 1
46458 - RETAINER, CABLE
46458-20020

CV1#,SV1#

 2
Common parts
90119-06197
90119-06198
91611-60612
94180-40600
