SV10-UEMZS (1982)
Toyota Camry/Vista
(8203- )1SLU,2SELU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

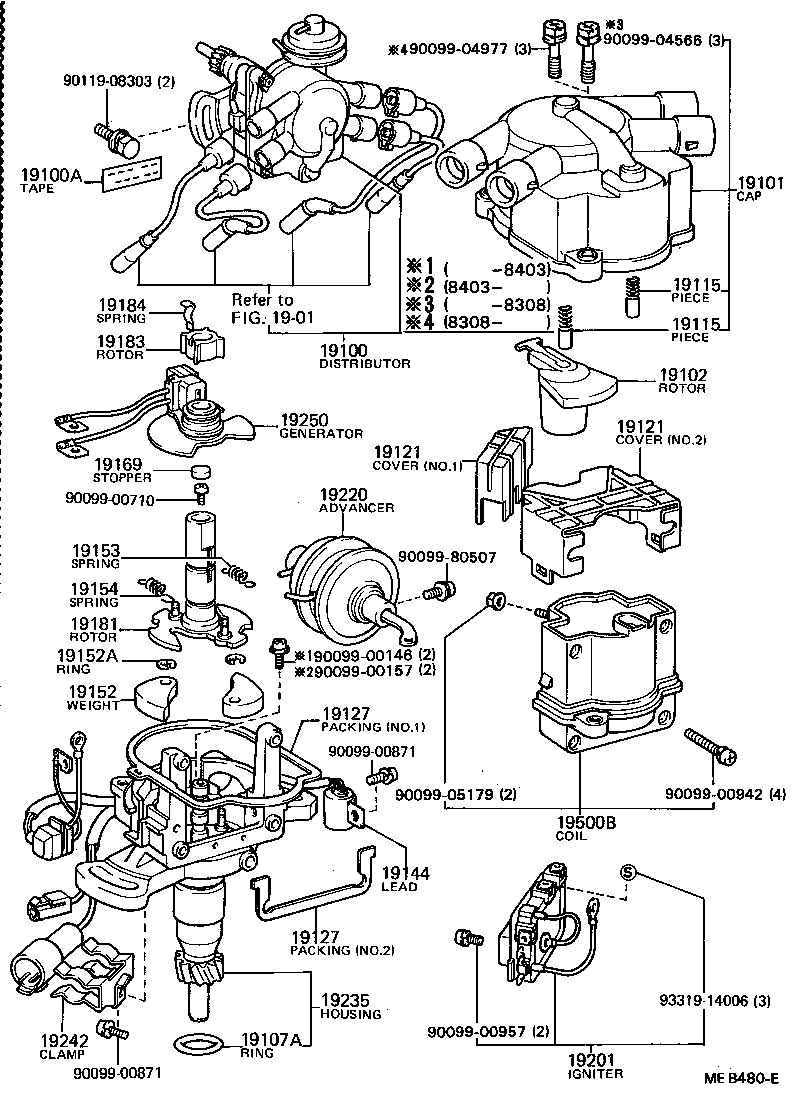

| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-63021 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 19030-63020 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
1S#,2SELU,3SGELU..SV1# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-63010 |
1SLU,2SELU..SV1# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-63010 |
1S#,2SELU..SV10,11 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
1S#,2SELU,3SGELU..SV1# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
1SLU,2SELU..SV1# |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
1SLU,2SELU..SV1# |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63020 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX NO.2 |
1 | ||
| 19121-63010 |
1SLU,2SELU..SV10,11..SE,VE,VF,VL,VX,XE,XT,ZX NO.1 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63020 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX NO.2 |
1 | ||
| 19121-63010 |
1SLU,2SELU..SV10,11..SE,VE,VF,VL,VX,XE,XT,ZX NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63020 |
1S#,2SELU..SV10,11 NO.2 |
1 | ||
| 19127-63010 |
1S#,2SELU..SV10,11 NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63020 |
1S#,2SELU..SV10,11 NO.2 |
1 | ||
| 19127-63010 |
1S#,2SELU..SV10,11 NO.1 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-63020 |
1SLU,2SELU..SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
1SLU..SV10 |
2 | ||
| 19152-63010 |
1SLU..SV10 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
1SLU,2SELU..SV1# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-63020 |
1SLU..SV10 |
1 | ||
| 19153-63021 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 19153-63021 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-63021 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 19154-63020 |
1SLU..SV10 |
1 | ||
| 19154-63021 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
1SLU,2SELU..SV10,11 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-63020 |
1SLU..SV10 |
1 | ||
| 19181-63021 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-63010 |
1SLU,2SELU..SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| 19183-63030 |
1SLU..SV10 |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
1SLU,2SELU..SV10,11 |
1 | ||
| 19201 - IGNITER | ||||
| 89620-32020 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 89620-14210 |
1SLU,2SELU..SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-63020 |
1SLU..SV10 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-63013 |
1SLU..SV10 |
1 | ||
| 19235-63011 |
1SLU..SV10 |
1 | ||
| 19235-63010 |
1SLU..SV10 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-63020 |
1S#,2SELU..SV10,11 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-63010 |
1SLU,2SELU..SV1# |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02139 |
1SLU..SV10 |
1 | ||
| 90919-02135 |
1SLU,2SELU..SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| Common parts | ||||
| 90099-00146 | ||||
| 90099-00157 | ||||
| 90099-00710 | ||||
| 90099-00871 | ||||
| 90099-00942 | ||||
| 90099-00957 | ||||
| 90099-04566 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08303 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||
