SV10-UEMNS (1982)

Toyota Camry/Vista

Production Mar 1982 - Jun 1984
Engine 1SLU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)

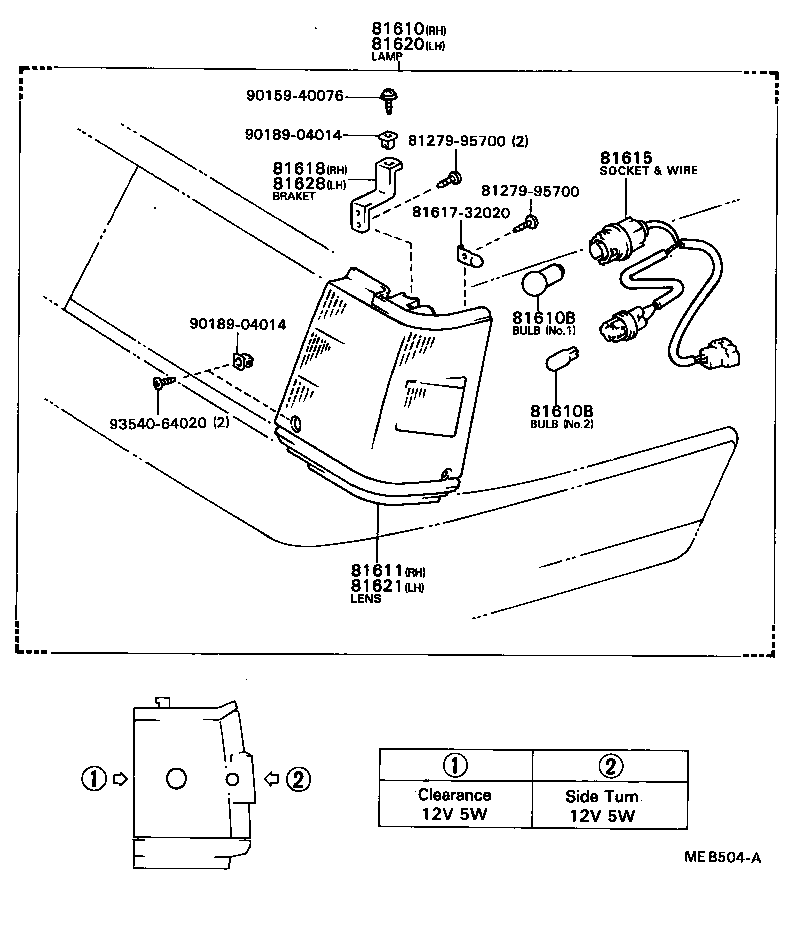

Click highlighted areas on diagram

diagram 8127995700 8127995700 81610 81610B 81610B 81611 81615 8161732020 81618 81620 81621 81628 9015940076 9018904014 9018904014 9354064020
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-39695

CV10,SV1#..VIS

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CV10,SV1#

12V 5W,12V 5W,NO.2

 2
99132-11050

CV10,SV1#

12V 5W,12V 5W,NO.1

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CV10,SV1#

12V 5W,12V 5W,NO.2

 2
99132-11050

CV10,SV1#

12V 5W,12V 5W,NO.1

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-32020

CV10,SV1#..VIS

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-32020

CV10,SV1#

 2
81618 - BRACKET, PARKING AND CLEARANCE LAMP, RH
81618-32020

CV10,SV1#..VIS

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-39695

CV10,SV1#..VIS

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-32020

CV10,SV1#..VIS

 1
81628 - BRACKET, PARKING AND CLEARANCE LAMP, LH
81628-32020

CV10,SV1#..VIS

 1
Common parts
81279-95700
81617-32020
90159-40076
90189-04014
93540-64020
