SV10-UEMNS (1982)

Toyota Camry/Vista

Production Mar 1982 - Jun 1984
Engine 1SLU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203- )

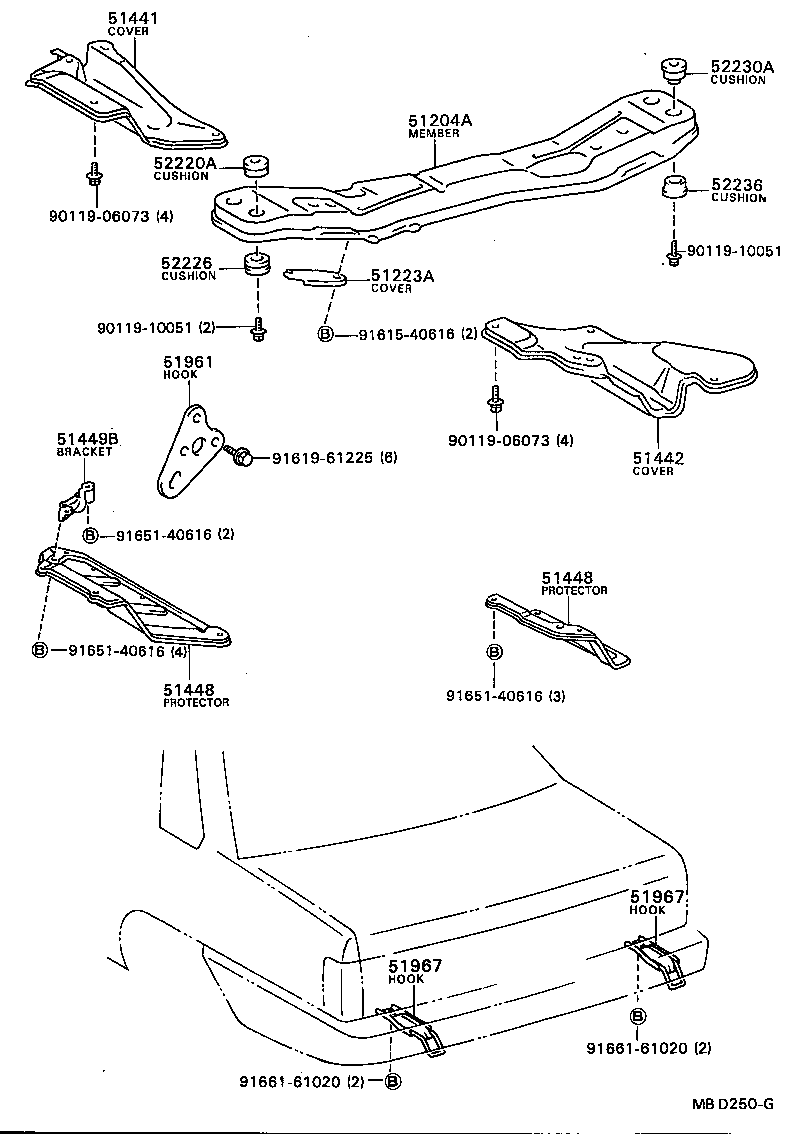

Click highlighted areas on diagram

diagram 51204A 51223A 51441 51442 51448 51448 51449B 51961 51967 51967 52220A 52226 52230A 52236 9011906073 9011906073 9011910051 9011910051 9161540616 9161961225 9165140616 9165140616 9165140616 9166161020 9166161020
Part # Description Qty Price
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-32010

CV1#,SV1#

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-32010

CV1#,SV1#

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-32010

SV10,11

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-32010

CV1#,SV1#..5F

 1
51448 - PROTECTOR, OIL PAN
51448-32010

CV1#,SV1#

LH

 1
51447-32010

CV1#,SV1#

RH

 1
51448 - PROTECTOR, OIL PAN
51448-32010

CV1#,SV1#

LH

 1
51447-32010

CV1#,SV1#

RH

 1
51449B - BRACKET, OIL PAN PROTECTOR
51449-32010

CV1#,SV1#

 1
51961 - HOOK, NO.1
51963-32010

CV10,SV1#

 2
52220A - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER
52220-32010

SV10,11

 2
52226 - CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER
52226-32010

SV10,11

 2
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-32010

SV10,11

 2
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-32010

SV10,11

 2
Common parts
90119-06073
90119-10051
91615-40616
91619-61225
91651-40616
91661-61020
