SV10-UEMNS (1982)
Toyota Camry/Vista

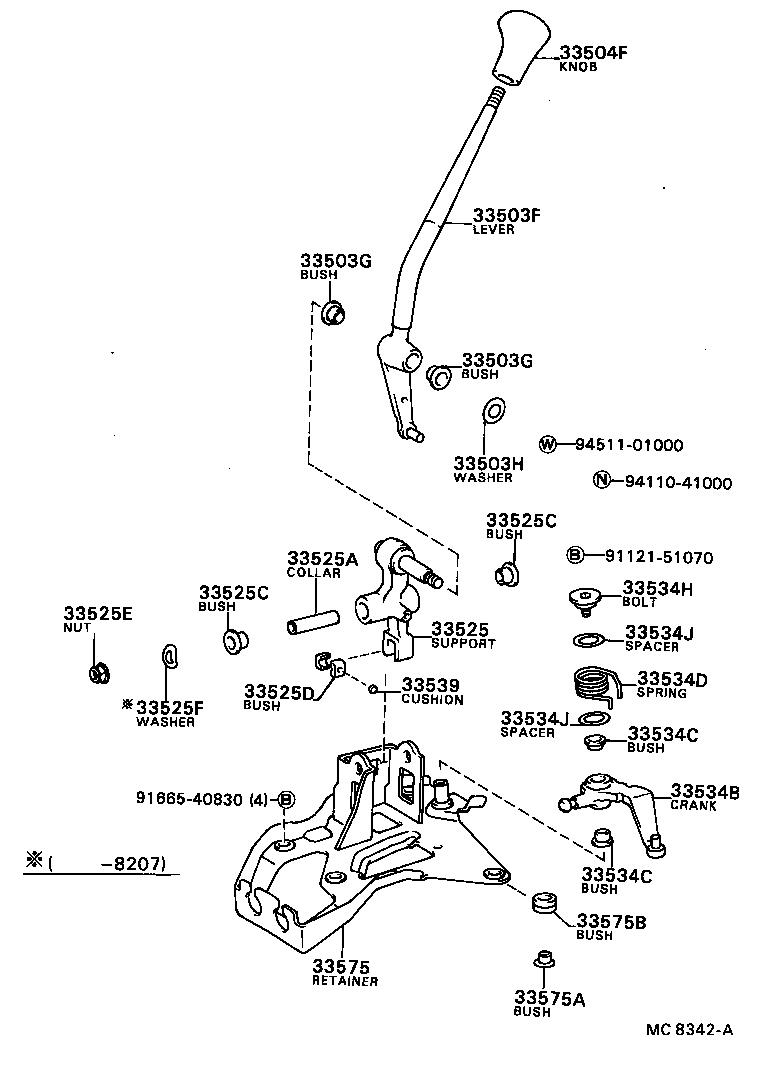

ILLUST NO. 1 OF 2(8203- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-32010 |
CV1#,SV1#..5F |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-14005 |
SV10 |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-14005 |
SV10 |
2 | ||
| 33503H - WASHER, PLATE(FOR SHIFT LEVER SUB-ASSY) | ||||
| 90201-10180 |
CV1#,SV1#..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401001 |
SV1#..4D..5F..VL BLACK,EXTRA,BLACK,TRIM1#,8# |
1 | ||
| 33504-1407001 |
SV1#..5F..(LT,VC,VL,XT) BLACK,BLACK,TRIM1#,8# |
1 | ||
| 33504-1407026 |
SV1#..5F..(LT,VC,VL,XT) DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 33504-2401001 |
SV1#..5F..VL BLACK,EXTRA,BLACK,TRIM1#,8# |
1 | ||
| 33504-1405023 |
CV10,SV1#..5F..(LT,VC,VL,XT) DARK GRAY,GRAY,TRIM1# |
1 | ||
| 33504-1407006 |
CV10,SV1#..5F..(LT,VC,VL,XT) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33525 - SUPPORT, SHIFT LEVER | ||||
| 33525-32010 |
CV1#,SV1#..5F |
1 | ||
| 33525A - COLLAR (FOR SHIFT LEVER SUPPORT) | ||||
| 90387-10047 |
CV1#,SV1#..5F |
1 | ||
| 33525C - BUSH, NO.1 (FOR SHIFT LEVER SUPPORT) | ||||
| 90386-14005 |
SV10 |
2 | ||
| 33525C - BUSH, NO.1 (FOR SHIFT LEVER SUPPORT) | ||||
| 90386-14005 |
SV10 |
2 | ||
| 33525D - BUSH, NO.2 (FOR SHIFT LEVER SUPPORT) | ||||
| 90389-10007 |
CV1#,SV1#..5F |
2 | ||
| 33525E - NUT (FOR SHIFT LEVER SUPPORT) | ||||
| 90179-10043 |
CV1#,SV1#..5F |
1 | ||
| 33525F - WASHER, WAVE (FOR SHIFT LEVER SUPPORT) | ||||
| 90206-14083 |
SV10 |
1 | ||
| 33534B - CRANK, SELECTING BELL, NO.1 | ||||
| 33534-32010 |
CV1#,SV1#..5F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
CV1#,SV1#..5F |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
CV1#,SV1#..5F |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-26044 |
CV1#,SV1#..5F |
1 | ||
| 33534H - BOLT (FOR SELECTING BELLCRANK NO.1) | ||||
| 90109-08057 |
CV1#,SV1#..5F |
1 | ||
| 33534J - SPACER (FOR SELECTING BELLCRNK NO.1) | ||||
| 90560-23008 |
CV1#,SV1#..5F |
2 | ||
| 33534J - SPACER (FOR SELECTING BELLCRNK NO.1) | ||||
| 90560-23008 |
CV1#,SV1#..5F |
2 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-32010 |
CV1#,SV1#..5F |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-32010 |
CV1#,SV1#..5F |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
CV1#,SV1#..5F |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10010 |
CV1#,SV1#..5F |
4 | ||
| Common parts | ||||
| 91121-51070 | ||||
| 91665-40830 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||

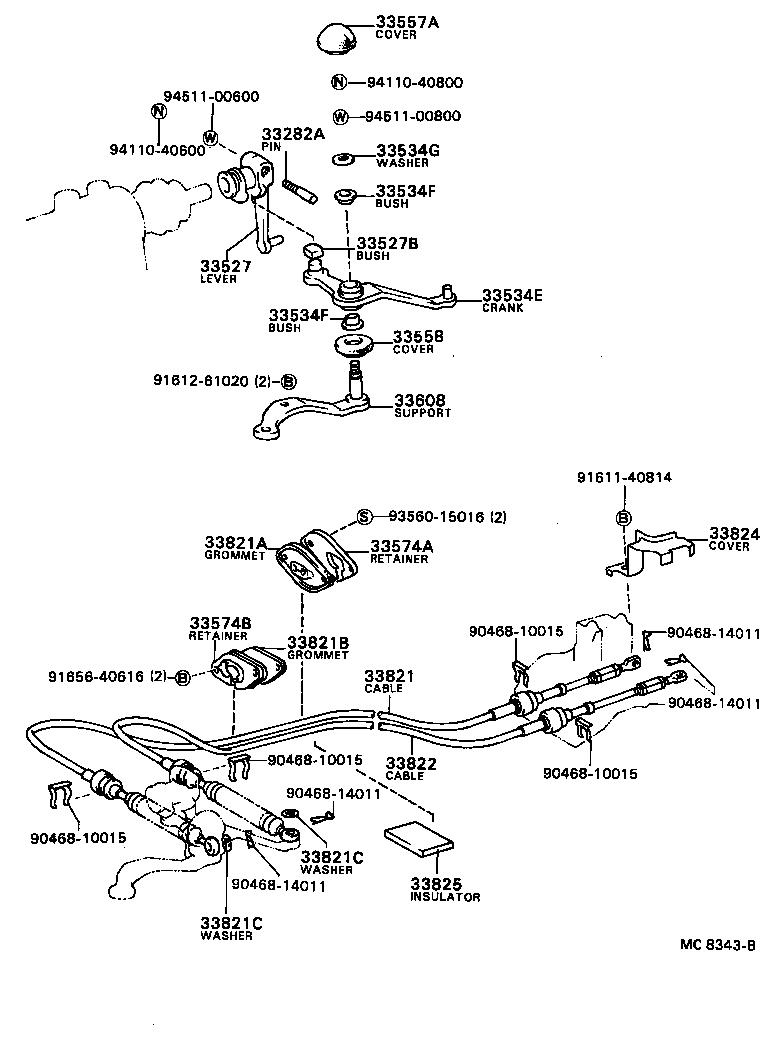

ILLUST NO. 2 OF 2(8203- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER) | ||||
| 33282-35010 |
CV1#,SV1#..5F |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-32010 |
CV1#,SV1#..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
CV1#,SV1#..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-32020 |
CV1#,SV1#..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CV1#,SV1#..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CV1#,SV1#..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
CV1#,SV1#..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
CV1#,SV1#..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-32010 |
CV1#,SV1#..5F |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-32010 |
CV1#,SV1# |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-32020 |
CV1#,SV1# |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-32010 |
CV1#,SV1#..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-32010 |
CV10,SV1#..5F |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01177 |
CV1#,SV1#..5F |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01154 |
CV1#,SV1#..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
CV1#,SV1#..5F 外径=28 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
CV1#,SV1#..5F 外径=28 |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-32010 |
CV10,SV1#..5F |
1 | ||
| 33824 - COVER, TRANSMISSION CONTROL CABLE | ||||
| 33824-32010 |
CV1#,SV1#..5F |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-32010 |
CV1#,SV1# |
1 | ||
| Common parts | ||||
| 90468-10015 | ||||
| 90468-14011 | ||||
| 91611-40814 | ||||
| 91612-61020 | ||||
| 91656-40616 | ||||
| 93560-15016 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
