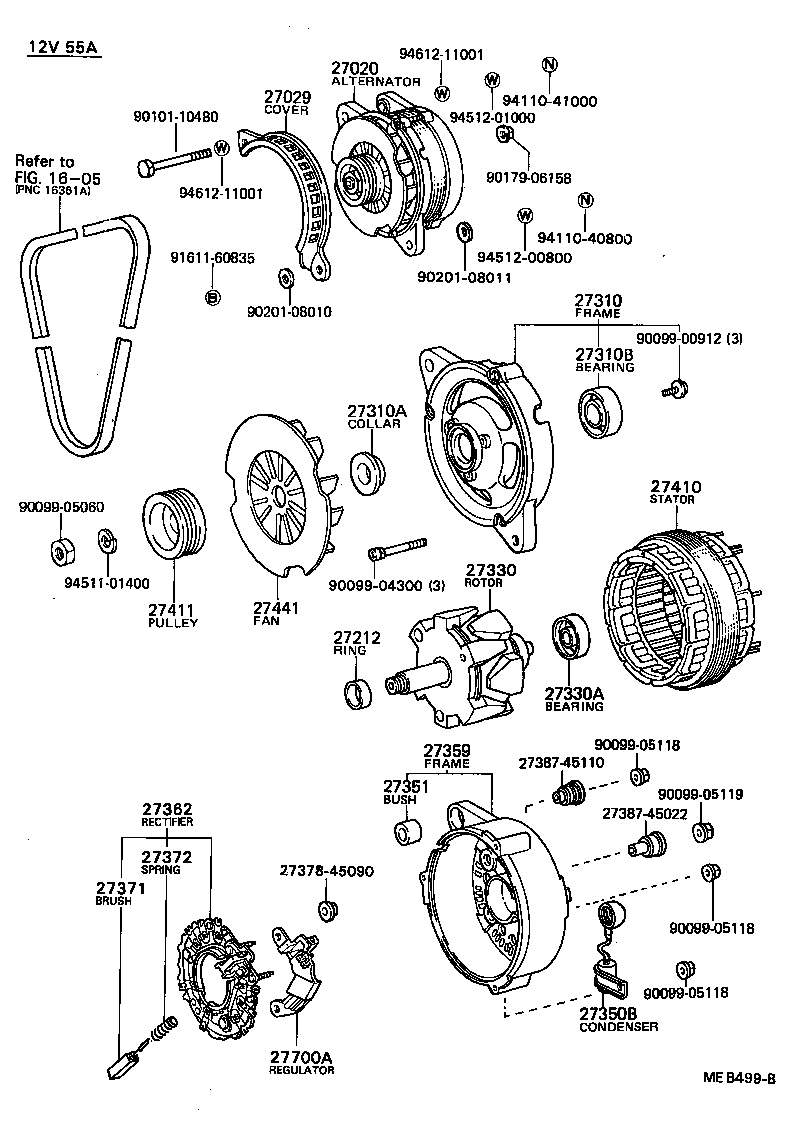

SV10-UEMNS (1982)
Toyota Camry/Vista
(8203-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-63020 |
1S#,2SELU..SV10,11 12V 70A,12V 70A |
1 | ||
| 27060-63010 |
1SLU..SV10 12V 55A |
1 | ||
| 27029 - COVER, ALTERNATOR | ||||
| 27029-63010 |
1SLU..SV10 12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
1SLU..SV10 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-63020 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
1 | ||
| 27310-63030 |
1SLU..SV10 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-63030 |
1SLU..SV10 12V 55A |
1 | ||
| 27412-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10141 |
1SLU,2SELU..SV1# 12V 70A,6302 |
1 | ||
| 90099-10142 |
1SLU..SV10 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27330-15070 |
1SLU..SV10 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
1 | ||
| 90099-10116 |
1SLU..SV10 12V 55A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
1SLU..SV10 12V 55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
1SLU..SV10 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-63030 |
1SLU..SV10 12V 55A |
1 | ||
| 27359-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-63030 |
1SLU..SV10 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
2 | ||
| 27371-31011 |
1SLU..SV10 12V 55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
2 | ||
| 27372-31011 |
1SLU..SV10 12V 55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
1SLU..SV10 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-63030 |
1SLU..SV10 12V 55A |
1 | ||
| 27411-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-63030 |
1SLU..SV10 12V 55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27700-63030 |
1SLU..SV10 12V 55A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10480 | ||||
| 90179-06158 | ||||
| 90201-08010 | ||||
| 90201-08011 | ||||
| 91611-60835 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1605 | ||||

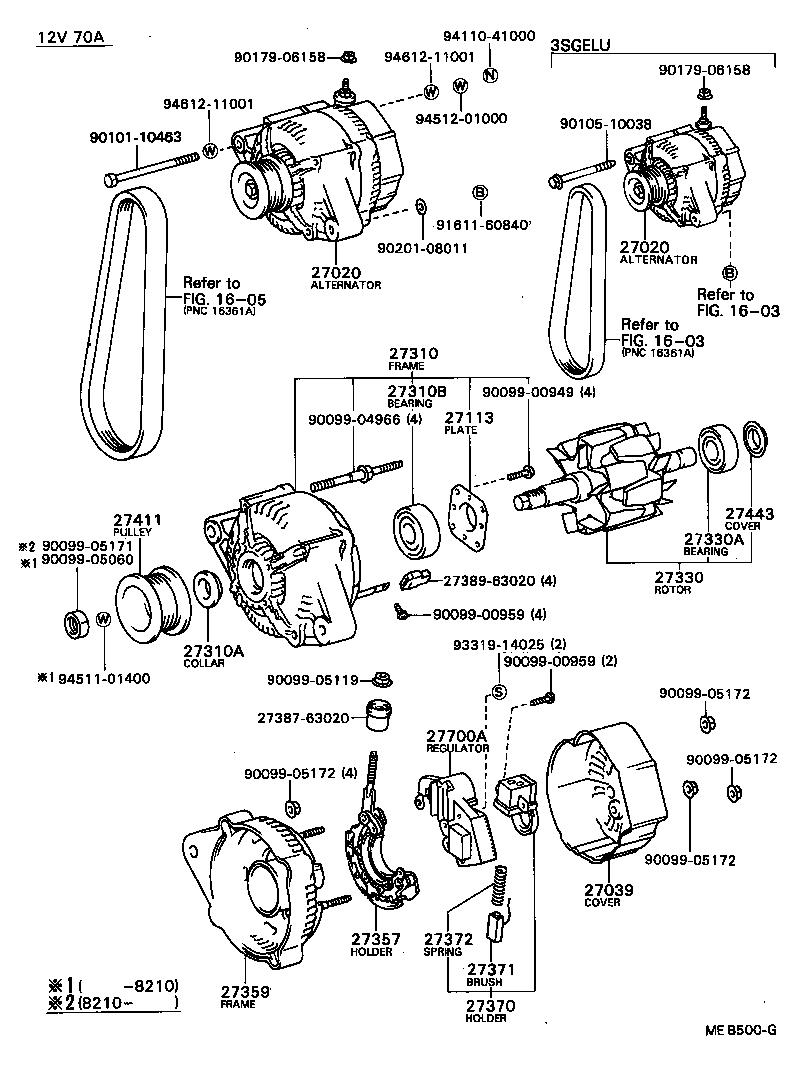

(8203- )1S#,2SELU,3SGELU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-63020 |
1S#,2SELU..SV10,11 12V 70A,12V 70A |
1 | ||
| 27060-63010 |
1SLU..SV10 12V 55A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-63020 |
1S#,2SELU..SV10,11 12V 70A,12V 70A |
1 | ||
| 27060-63010 |
1SLU..SV10 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-63020 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-63020 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
1 | ||
| 27310-63030 |
1SLU..SV10 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-63030 |
1SLU..SV10 12V 55A |
1 | ||
| 27412-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10141 |
1SLU,2SELU..SV1# 12V 70A,6302 |
1 | ||
| 90099-10142 |
1SLU..SV10 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27330-15070 |
1SLU..SV10 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
1 | ||
| 90099-10116 |
1SLU..SV10 12V 55A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-63030 |
1SLU..SV10 12V 55A |
1 | ||
| 27359-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
2 | ||
| 27371-31011 |
1SLU..SV10 12V 55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
2 | ||
| 27372-31011 |
1SLU..SV10 12V 55A |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-63030 |
1SLU..SV10 12V 55A |
1 | ||
| 27411-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1S#,2SELU,3SGELU..SV1# 12V 70A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63020 |
1SLU,2SELU..SV1# 12V 70A |
1 | ||
| 27700-63030 |
1SLU..SV10 12V 55A |
1 | ||
| Common parts | ||||
| 27387-63020 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05060 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90101-10463 | ||||
| 90105-10038 | ||||
| 90179-06158 | ||||
| 90201-08011 | ||||
| 91611-60840 | ||||
| 93319-14025 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1605 | ||||
