SV10-UEMNL (1984)
Toyota Camry/Vista

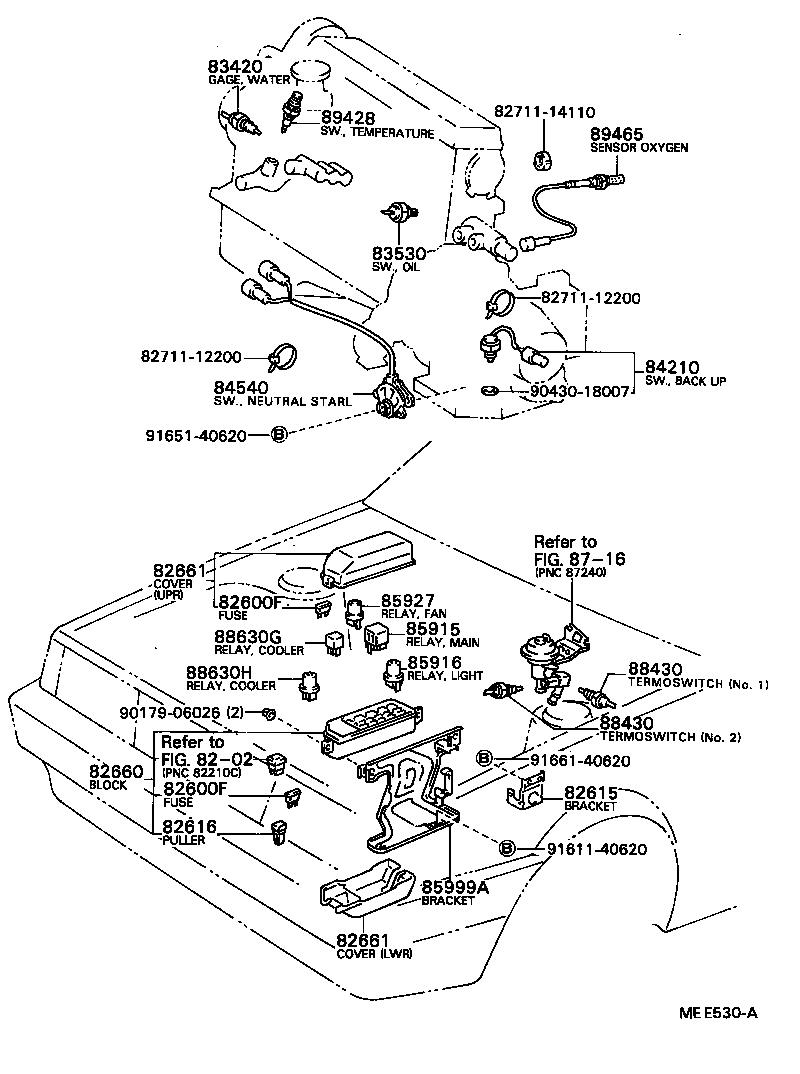

ILLUST NO. 1 OF 4(8406- )SV10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,黄,20A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,黄,20A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-32020 |
SV10 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CV1#,SV1# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-32030 |
SV1# |
1 | ||
| 82660-32030 |
SV1#;CV10..5F |
1 | ||
| 82660-32040 |
SV1# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
CV10,SV1# ENGINE ROOM,UPR |
1 | ||
| 82661-32010 |
SV1# ENGINE ROOM,UPR |
1 | ||
| 82661-32030 |
CV1#,SV1# COWL SIDE,SUMITOMO |
1 | ||
| 82661-32020 |
CV1#,SV10 ENGINE ROOM,LWR |
1 | ||
| 82661-32110 |
CV1#,SV1# COWL SIDE,YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
CV10,SV1# ENGINE ROOM,UPR |
1 | ||
| 82661-32010 |
SV1# ENGINE ROOM,UPR |
1 | ||
| 82661-32030 |
CV1#,SV1# COWL SIDE,SUMITOMO |
1 | ||
| 82661-32020 |
CV1#,SV10 ENGINE ROOM,LWR |
1 | ||
| 82661-32110 |
CV1#,SV1# COWL SIDE,YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CV1#,SV1# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
SV1# |
1 | ||
| 83530-14020 |
SV10,11 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
CV10,SV1#..5F |
1 | ||
| 84210-60021 |
CV1#,SV1#..5F |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85913-30020 |
CV1#,SV1# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CV1#,SV1# |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
CV10,SV1# |
1 | ||
| 90987-03001 |
SV1#;CV1#..5F |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-32060 |
CV1#,SV10 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
CV10,SV1# |
1 | ||
| 88630-32010 |
SV1# |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
CV10,SV1# |
1 | ||
| 90987-02004 |
SV1# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-32010 |
SV1# |
1 | ||
| 89428-32010 |
SV10 |
1 | ||
| 89428-32010 |
SV1# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-49015 |
SV10..5F |
1 | ||
| 89465-20050 |
SV10 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 90179-06026 | ||||
| 90430-18007 | ||||
| 91611-40620 | ||||
| 91651-40620 | ||||
| 91661-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8716 | ||||

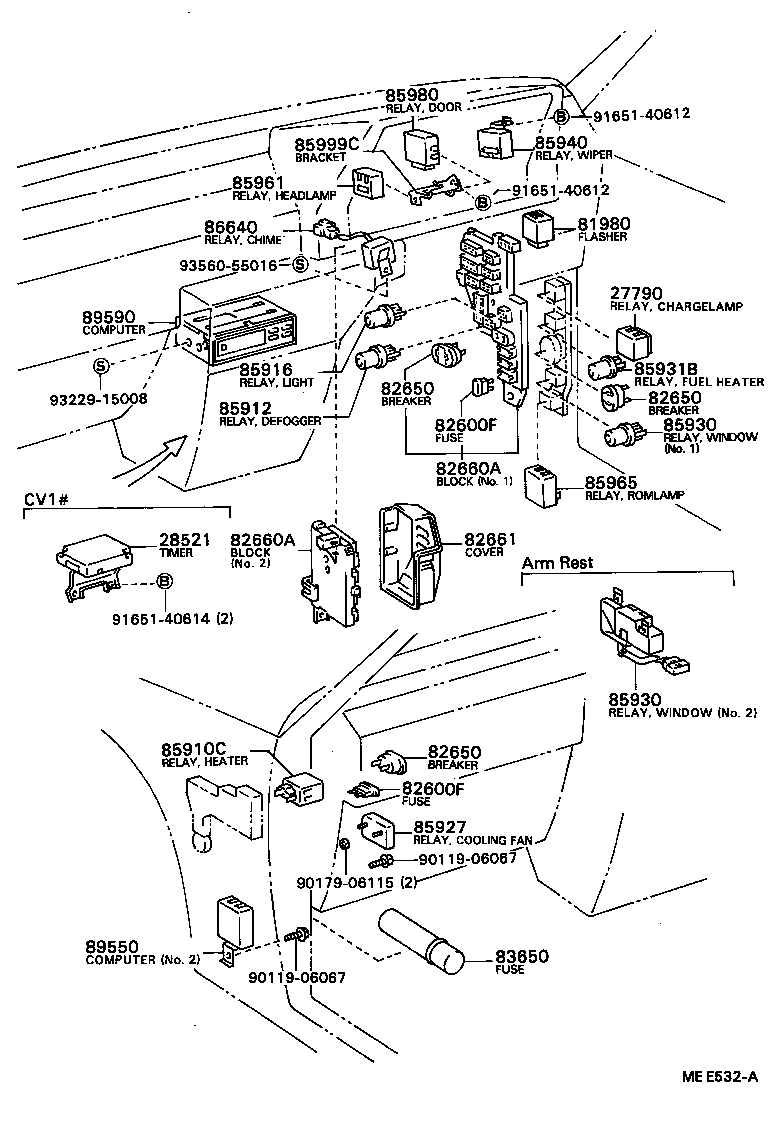

ILLUST NO. 2 OF 4(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
CV1#,SV1# |
1 | ||
| 81980-16010 |
CV11,SV1# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,黄,20A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,黄,20A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
CV1#,SV1# 30A,TOKAIRIKA |
3 | ||
| 82650-20011 |
CV1#,SV1# 30A,MATSUSHITA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
CV1#,SV1# 30A,TOKAIRIKA |
3 | ||
| 82650-20011 |
CV1#,SV1# 30A,MATSUSHITA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
CV1#,SV1# 30A,TOKAIRIKA |
3 | ||
| 82650-20011 |
CV1#,SV1# 30A,MATSUSHITA |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-32060 |
CV10,SV1# NO.2 |
1 | ||
| 82660-32061 |
CV1#,SV1# NO.2,SUMITOMO |
1 | ||
| 82660-32251 |
CV1#,SV1# NO.2,YAZAKI |
1 | ||
| 82660-32010 |
CV1#,SV1# NO.1,SUMITOMO |
1 | ||
| 82660-32240 |
CV1#,SV1# NO.1,YAZAKI |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-32060 |
CV10,SV1# NO.2 |
1 | ||
| 82660-32061 |
CV1#,SV1# NO.2,SUMITOMO |
1 | ||
| 82660-32251 |
CV1#,SV1# NO.2,YAZAKI |
1 | ||
| 82660-32010 |
CV1#,SV1# NO.1,SUMITOMO |
1 | ||
| 82660-32240 |
CV1#,SV1# NO.1,YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
CV10,SV1# ENGINE ROOM,UPR |
1 | ||
| 82661-32010 |
SV1# ENGINE ROOM,UPR |
1 | ||
| 82661-32030 |
CV1#,SV1# COWL SIDE,SUMITOMO |
1 | ||
| 82661-32020 |
CV1#,SV10 ENGINE ROOM,LWR |
1 | ||
| 82661-32110 |
CV1#,SV1# COWL SIDE,YAZAKI |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
CV1#,SV1# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
CV1#,SV1# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
CV1#,SV1# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CV1#,SV1# |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
CV10,SV1# |
1 | ||
| 90987-03001 |
SV1#;CV1#..5F |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV10,SV10..VL NO.1,EXTRA |
1 | ||
| 90987-02004 |
CV11,SV10..VL NO.1,GRAND EXTRA |
1 | ||
| 85939-32010 |
CV10,SV10..VL NO.2(POWER WINDOW),EXTRA |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV10,SV10..VL NO.1,EXTRA |
1 | ||
| 90987-02004 |
CV11,SV10..VL NO.1,GRAND EXTRA |
1 | ||
| 85939-32010 |
CV10,SV10..VL NO.2(POWER WINDOW),EXTRA |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-32010 |
CV10,SV1#..LT,VC,VL,XT FR WIPER |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-32010 |
CV10,SV10..VL EXTRA |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-32070 |
CV10,SV10..VL EXTRA |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-32010 |
CV1#,SV1# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-32010 |
SV10..5F NO.1 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90179-06115 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93229-15008 | ||||
| 93560-55016 | ||||

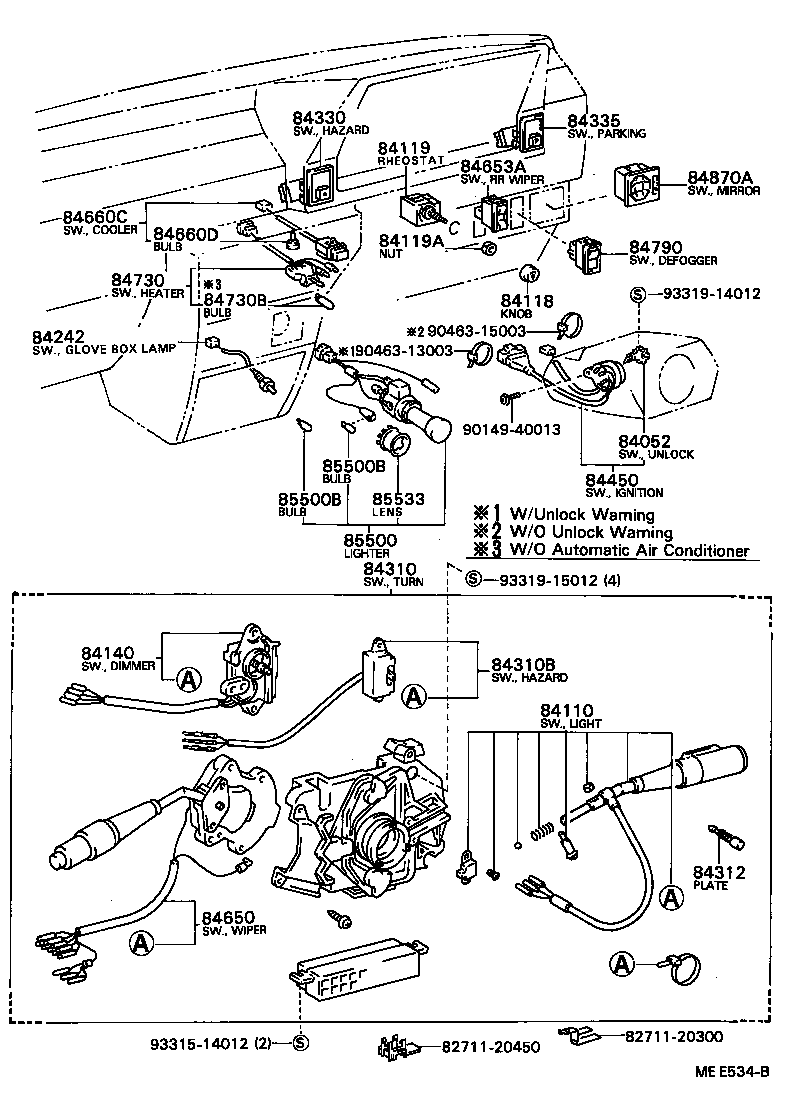

ILLUST NO. 3 OF 4(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39155 |
CV10,SV1# TOKAIRIKA |
1 | ||
| 84112-29375 |
CV1#,SV1# |
1 | ||
| 84112-39165 |
CV10,SV1# MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29215 |
CV1#,SV1# |
1 | ||
| 84140-39085 |
CV10,SV1# TOKAIRIKA |
1 | ||
| 84140-39075 |
CV10,SV1# MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32280 |
CV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT |
1 | ||
| 84310-32190 |
CV10,SV1#..LT,VC,VF,VL,VS,XE,XS,XT |
1 | ||
| 84310-32010 |
CV10,SV1#..LT,VC,VL,XT |
1 | ||
| 84310B - SWITCH, TURN SIGNAL | ||||
| 84332-39235 |
CV1#,SV1# |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
CV10,SV1# TOKAIRIKA |
1 | ||
| 84312-32020 |
CV1#,SV1# |
1 | ||
| 84312-32020 |
CV10,SV1# MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-3205003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84332-39135 |
CV10,SV1# TOKAIRIKA |
1 | ||
| 84332-39145 |
CV10,SV1# MATSUSHITA |
1 | ||
| 84332-3205004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 84332-3205005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-3202004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 84330-32010 |
CV10,SV1# |
1 | ||
| 84330-3202005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 84330-3202003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27040 |
CV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT |
1 | ||
| 84450-27040 |
CV10,SV1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39215 |
CV10,SV1#..LT,VC,VL,XT MATSUSHITA |
1 | ||
| 84652-39585 |
CV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT |
1 | ||
| 84652-39415 |
CV10,SV1#..LT,VC,VF,VL,VS,XE,XS,XT |
1 | ||
| 84652-39195 |
CV10,SV1#..LT,VC,VL,XT TOKAIRIKA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-32010 |
CV1#,SV1# |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-32010 |
CV1#,SV1# |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-32010 |
CV10,SV1# |
1 | ||
| 84732-32040 |
CV1#,SV1# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
CV1#,SV1# 14V 1.4W,W/O AUTOMATIC AIR CONDITIONER |
2 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32010 |
SV1# |
1 | ||
| 84790-32060 |
CV10,SV10,11 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-17010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 84870-32010 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32030 |
CV1#,SV1# |
1 | ||
| 85500-32010 |
CV10,SV1# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV10,SV1# 14V 1.4W |
1 | ||
| 90981-11014 |
CV1#,SV1# 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV10,SV1# 14V 1.4W |
1 | ||
| 90981-11014 |
CV1#,SV1# 14V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-14020 |
CV1#,SV1# |
1 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 82711-20450 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

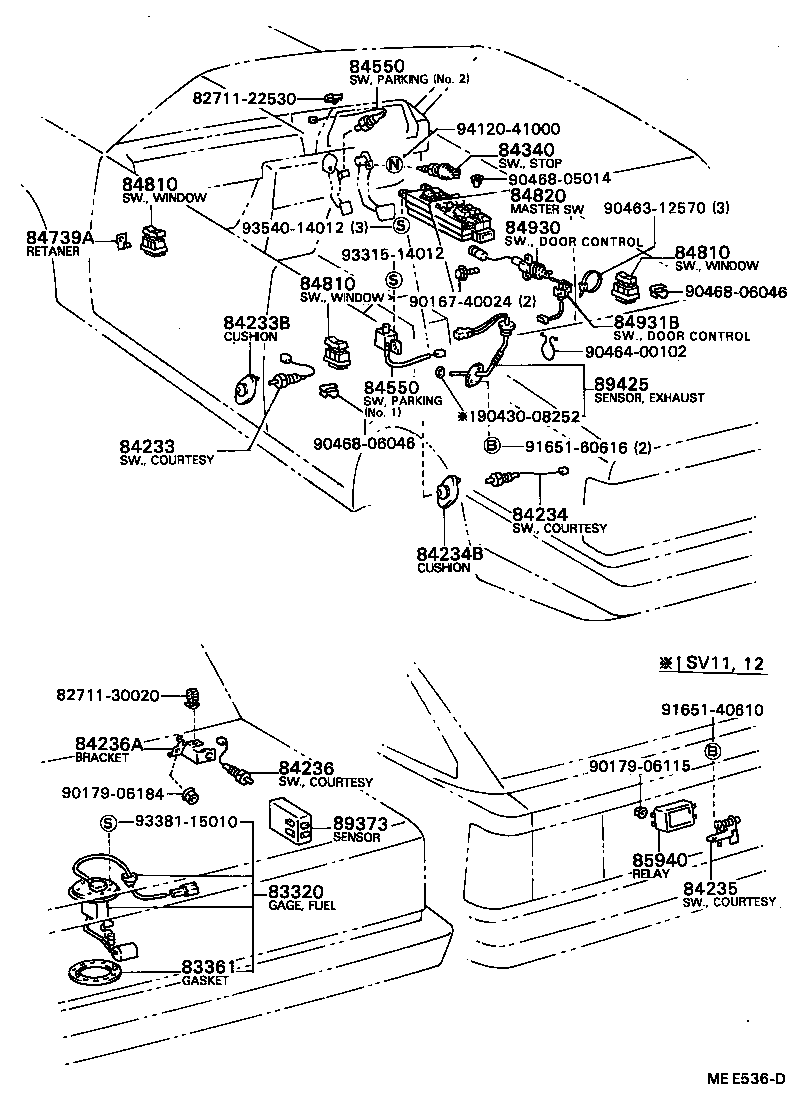

ILLUST NO. 4 OF 4(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39325 |
SV1#..LT,VC,VL,XT |
1 | ||
| 83320-39327 |
SV1# |
1 | ||
| 83320-39328 |
SV1# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
CV1#,SV1# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
CV10,SV1# |
2 | ||
| 84230-12120 |
CV1#,SV1# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
CV1#,SV1# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20080 |
CV10,SV1# |
2 | ||
| 84230-12120 |
CV1#,SV1# |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
CV1#,SV1# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84230-32010 |
CV10,SV1#..4D..(SE,VE,VF,VL,VX,XE,XT,ZX) |
1 | ||
| 84236A - BRACKET, COURTESY SWITCH(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84233-32010 |
CV10,SV1#..4D..(SE,VE,VF,VL,VX,XE,XT,ZX) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
CV1#,SV1# TOKAIRIKA |
1 | ||
| 84340-32010 |
CV10,SV1# |
1 | ||
| 84340-30030 |
CV1#,SV1# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
CV10,SV1# NO.1 |
1 | ||
| 84550-16010 |
CV1#,SV1#..5F NO.1 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
CV10,SV1# NO.1 |
1 | ||
| 84550-16010 |
CV1#,SV1#..5F NO.1 |
1 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-30020 |
CV10,SV10..VL EXTRA |
6 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-3203005 |
CV11,SV10..VL GRAND EXTRA,FR(LH),BEIGE,BEIGE,TRIM4# |
1 | ||
| 84810-32050 |
CV10,SV10..VL FR(LH),RR,EXTRA |
3 | ||
| 84810-3201005 |
CV11,SV10..VL GRAND EXTRA,RR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-3203005 |
CV11,SV10..VL GRAND EXTRA,FR(LH),BEIGE,BEIGE,TRIM4# |
1 | ||
| 84810-32050 |
CV10,SV10..VL FR(LH),RR,EXTRA |
3 | ||
| 84810-3201005 |
CV11,SV10..VL GRAND EXTRA,RR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-3203005 |
CV11,SV10..VL GRAND EXTRA,FR(LH),BEIGE,BEIGE,TRIM4# |
1 | ||
| 84810-32050 |
CV10,SV10..VL FR(LH),RR,EXTRA |
3 | ||
| 84810-3201005 |
CV11,SV10..VL GRAND EXTRA,RR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32060 |
CV10,SV10..VL FR(RH),EXTRA |
1 | ||
| 84820-3201105 |
CV11,SV10..VL GRAND EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84931-32010 |
CV10,SV10..VL EXTRA |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-32020 |
CV10,SV10..VL EXTRA |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-32010 |
CV10,SV1#..LT,VC,VL,XT FR WIPER |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32010 |
CV10,SV1#..4D |
1 | ||
| 89373-32060 |
CV1#,SV1#..4D |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12190 |
SV10 |
1 | ||
| 89425-39115 |
SV1# |
1 | ||
| 89425-12140 |
SV10 |
1 | ||
| Common parts | ||||
| 82711-22530 | ||||
| 82711-30020 | ||||
| 90167-40024 | ||||
| 90179-06115 | ||||
| 90179-06184 | ||||
| 90430-08252 | ||||
| 90463-12570 | ||||
| 90464-00102 | ||||
| 90468-05014 | ||||
| 90468-06046 | ||||
| 91651-40610 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 93381-15010 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
