SV10-UEMES (1982)
Toyota Camry/Vista

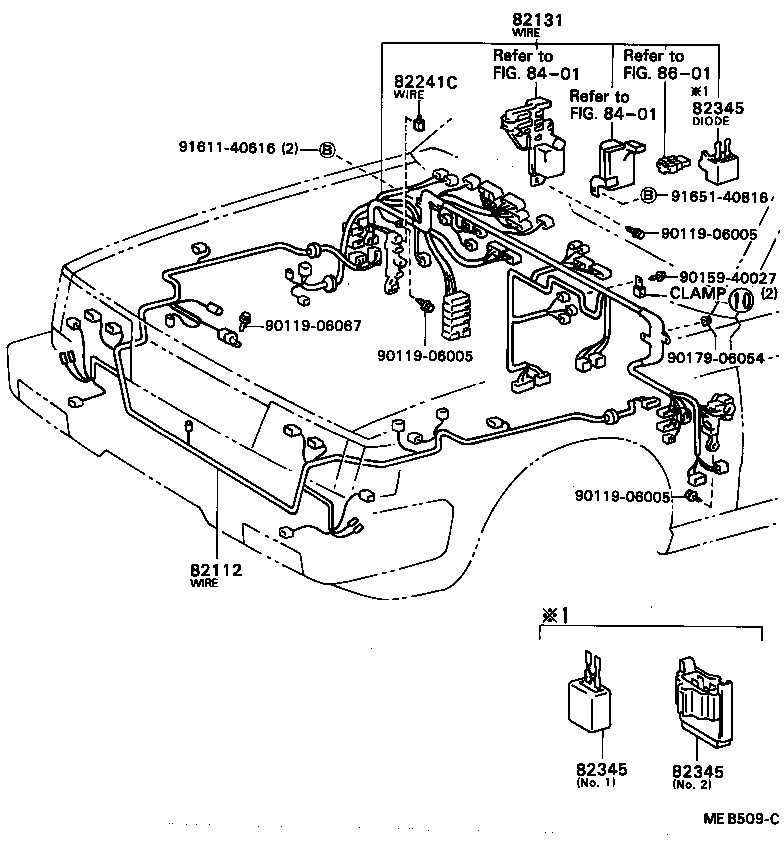

ILLUST NO. 1 OF 5(8203- )SV1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-32100 |
SV1# |
1 | ||
| 82112-32010 |
SV10 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-32030 |
SV10..SE,VE W/POWER WINDOW OR *SNR |
1 | ||
| 82131-32020 |
SV10..SE,VE |
1 | ||
| 82131-32090 |
SV10..4D..(SE,VE) |
1 | ||
| 82131-32290 |
SV1#..SE,VE,VF,XE W/POWER WINDOW OR *SNR |
1 | ||
| 82131-32091 |
SV10..4D..(SE,VE) |
1 | ||
| 82131-32292 |
SV1#..SE,VE,VF,XE W/POWER WINDOW OR *SNR |
1 | ||
| 82131-32291 |
SV1#..SE,VE,VF,XE W/POWER WINDOW OR *SNR |
1 | ||
| 82131-32092 |
SV10..4D..(SE,VE) |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32010 |
SV10 COLD SPEC |
1 | ||
| 82241-32010 |
SV1# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90159-40027 | ||||
| 90179-06054 | ||||
| 91611-40616 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

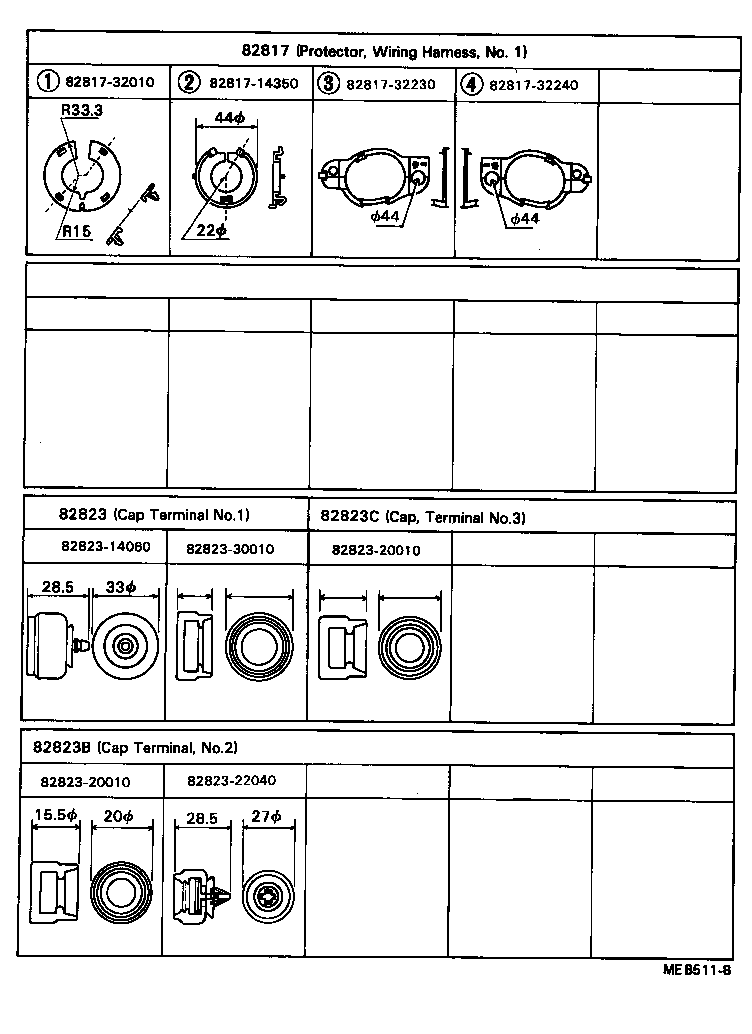

ILLUST NO. 3 OF 5(8203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32010 |
CV1#,SV1# |
2 | ||
| 82817-14350 |
SV1#..SE,VE,VF,VX,XE,ZX |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-30010 |
SV10 |
1 | ||
| 82823-14060 |
SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 82823C - CAP, TERMINAL, NO.4 | ||||
| 82823-20010 |
SV10..SE,VE,VL,VX,XT,ZX |
2 | ||
| Common parts | ||||
| 82817-14350 | ||||
| 82817-32010 | ||||
| 82817-32230 | ||||
| 82817-32240 | ||||
| 82823-14060 | ||||
| 82823-20010 | ||||
| 82823-22040 | ||||
| 82823-30010 | ||||
ILLUST NO. 4 OF 5(8203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12500 | ||||
| 82711-14110 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-22270 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-32030 | ||||
| 82711-32060 | ||||
| 82711-32090 | ||||
| 82711-32100 | ||||
| 82711-32110 | ||||
| 82711-32160 | ||||
| 82711-32180 | ||||
| 82819-32060 | ||||
| 90461-08039 | ||||
| 90461-08202 | ||||
| 90461-08309 | ||||
| 90461-08365 | ||||
| 90461-10223 | ||||
| 90462-10074 | ||||
| 90463-10337 | ||||
| 90464-00248 | ||||
| 90467-09031 | ||||

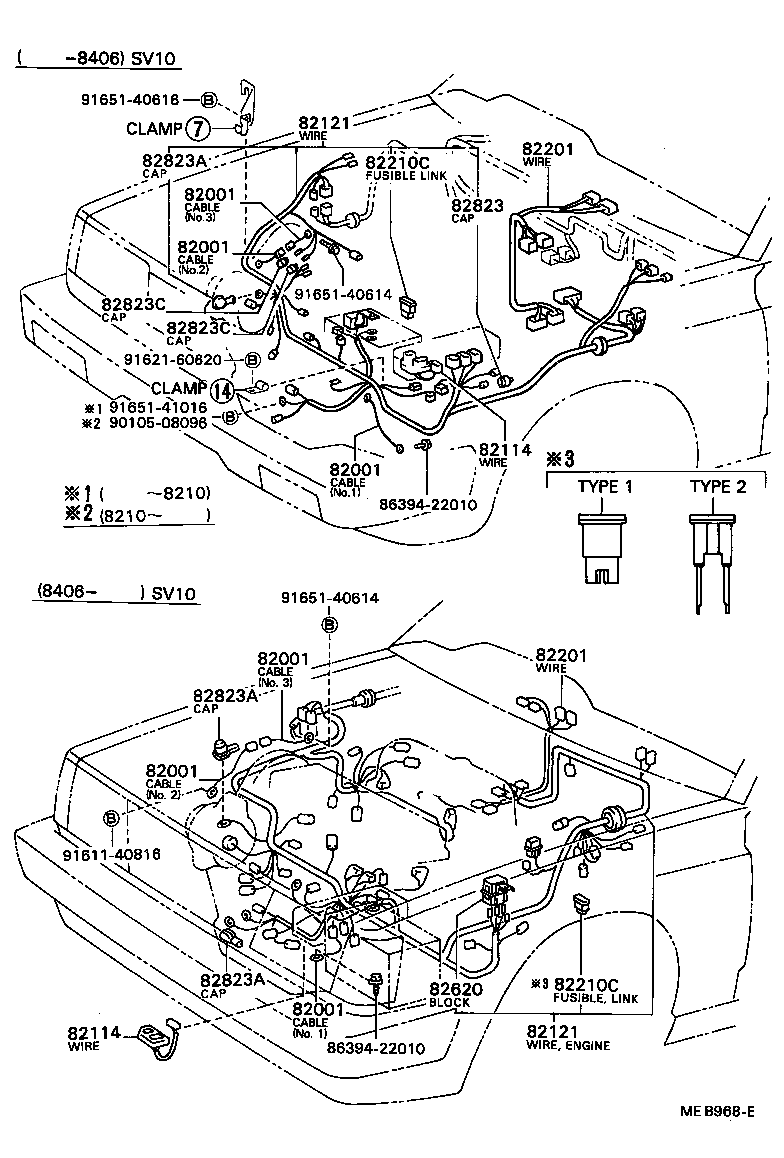

ILLUST NO. 1 OF 5(8203- )SV10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV10,11 NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV10,11 NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV10,11 NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV10,11 NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV10,11 NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV10,11 NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32010 |
CV1#,SV1# W/COOLER |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32010 |
CV1#,SV1# W/COOLER |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-32060 |
SV10..SE,VE,VX,ZX |
1 | ||
| 82121-32020 |
SV10..SE,VE,VX,ZX |
1 | ||
| 82121-32061 |
SV10..SE,VE,VX,ZX |
1 | ||
| 82121-32063 |
SV10..SE,VE,VX,ZX |
1 | ||
| 82121-32062 |
SV10..SE,VE,VX,ZX |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-32060 |
SV10..SE,VE,VX,ZX |
1 | ||
| 82121-32020 |
SV10..SE,VE,VX,ZX |
1 | ||
| 82121-32061 |
SV10..SE,VE,VX,ZX |
1 | ||
| 82121-32063 |
SV10..SE,VE,VX,ZX |
1 | ||
| 82121-32062 |
SV10..SE,VE,VX,ZX |
1 | ||
| 82201 - WIRING SUB-ASSY, INSTRUMENT PANEL | ||||
| 82201-32010 |
CV10,SV1#..SE,VE,VF,XE |
1 | ||
| 82201 - WIRING SUB-ASSY, INSTRUMENT PANEL | ||||
| 82201-32010 |
CV10,SV1#..SE,VE,VF,XE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
CV1#,SV1# 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,TYPE 1 |
2 | ||
| 90982-08190 |
SV1#..SE,VE,VF,VL,VX,XE,XT,ZX 60A,ﾒｽ端子,黄,60A |
1 | ||
| 90982-08223 |
CV10,SV10 30A,ｵｽ端子,ﾋﾟﾝｸ,30A,TYPE 2 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
CV1#,SV1# 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,TYPE 1 |
2 | ||
| 90982-08190 |
SV1#..SE,VE,VF,VL,VX,XE,XT,ZX 60A,ﾒｽ端子,黄,60A |
1 | ||
| 90982-08223 |
CV10,SV10 30A,ｵｽ端子,ﾋﾟﾝｸ,30A,TYPE 2 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-30010 |
SV10 |
1 | ||
| 82823-14060 |
SV10..SE,VE,VL,VX,XT,ZX |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-32020 |
SV10 ALTERNATOR |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-32020 |
SV10 ALTERNATOR |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-32020 |
SV10 ALTERNATOR |
1 | ||
| 82823C - CAP, TERMINAL, NO.4 | ||||
| 82823-20010 |
SV10..SE,VE,VL,VX,XT,ZX |
2 | ||
| 82823C - CAP, TERMINAL, NO.4 | ||||
| 82823-20010 |
SV10..SE,VE,VL,VX,XT,ZX |
2 | ||
| Common parts | ||||
| 86394-22010 | ||||
| 90105-08096 | ||||
| 91611-40816 | ||||
| 91621-60620 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-41016 | ||||

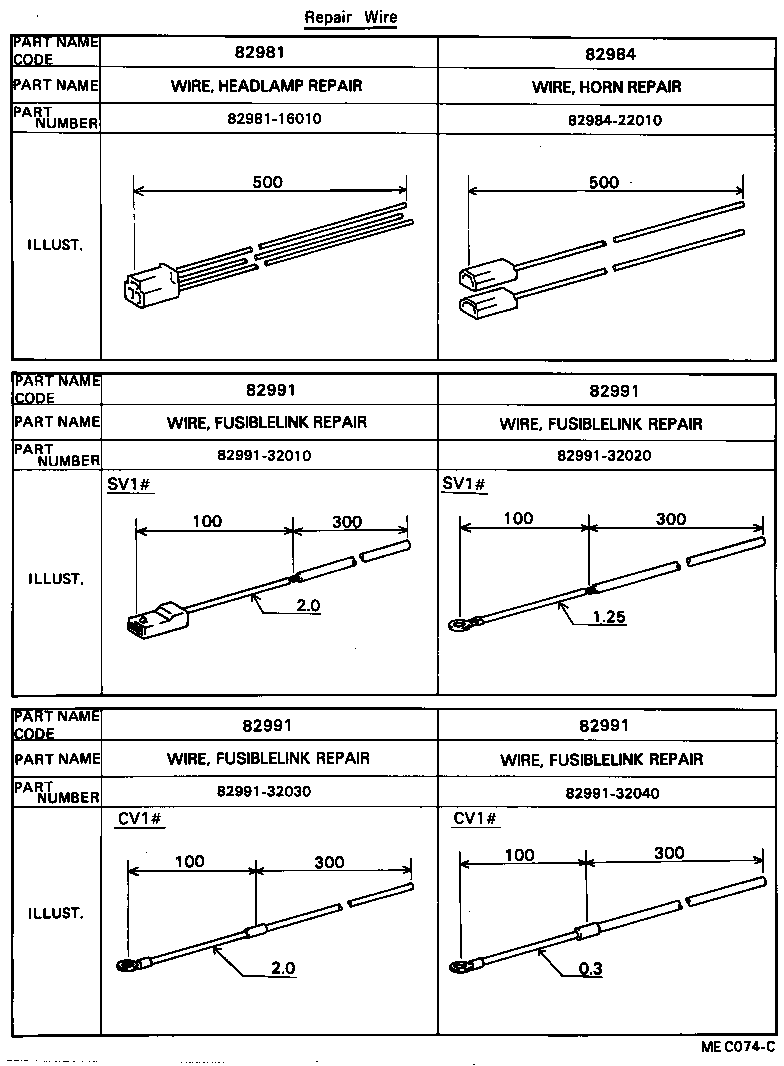

ILLUST NO. 5 OF 5(8203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
CV1#,SV1# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
CV1#,SV1# |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82984-22010 | ||||
| 82991-32010 | ||||
| 82991-32020 | ||||
| 82991-32030 | ||||
| 82991-32040 | ||||

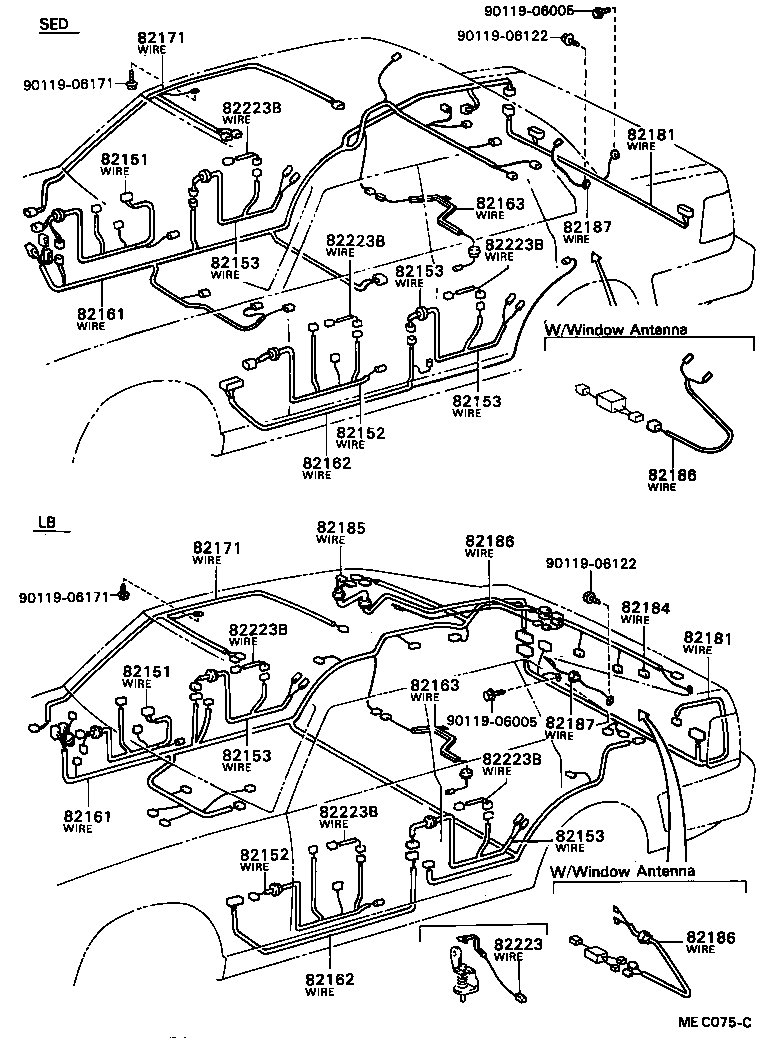

ILLUST NO. 2 OF 5(8203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-32030 |
SV1#..VE,VF EXTRA |
1 | ||
| 82151-32020 |
SV1#..SE,VE,VF,XE |
1 | ||
| 82151-32110 |
CV10,SV1#..SE,VE,VF,XE W/*PW OR W/*PW & DOOR MIRROR |
1 | ||
| 82151-32100 |
CV10,SV1#..SE,VE,VF,VL,XE,XT W/DOOR MIRROR |
1 | ||
| 82151-32120 |
CV10,SV1#..VE,VF EXTRA |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-32030 |
SV1#..VE,VF EXTRA |
1 | ||
| 82151-32020 |
SV1#..SE,VE,VF,XE |
1 | ||
| 82151-32110 |
CV10,SV1#..SE,VE,VF,XE W/*PW OR W/*PW & DOOR MIRROR |
1 | ||
| 82151-32100 |
CV10,SV1#..SE,VE,VF,VL,XE,XT W/DOOR MIRROR |
1 | ||
| 82151-32120 |
CV10,SV1#..VE,VF EXTRA |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-32110 |
CV10,SV1#..SE,VE,VF,XE W/*PW OR W/*PW & DOOR MIRROR |
1 | ||
| 82152-32030 |
SV1#..VE,VF EXTRA |
1 | ||
| 82152-32120 |
CV10,SV1#..VE,VF EXTRA |
1 | ||
| 82152-32100 |
CV10,SV1#..SE,VE,VF,VL,XE,XT W/DOOR MIRROR |
1 | ||
| 82152-32020 |
SV1#..SE,VE,VF,XE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-32110 |
CV10,SV1#..SE,VE,VF,XE W/*PW OR W/*PW & DOOR MIRROR |
1 | ||
| 82152-32030 |
SV1#..VE,VF EXTRA |
1 | ||
| 82152-32120 |
CV10,SV1#..VE,VF EXTRA |
1 | ||
| 82152-32100 |
CV10,SV1#..SE,VE,VF,VL,XE,XT W/DOOR MIRROR |
1 | ||
| 82152-32020 |
SV1#..SE,VE,VF,XE |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32030 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
2 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32030 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
2 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32030 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
2 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32030 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
2 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32030 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
2 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-32030 |
SV10..SE,VE |
1 | ||
| 82161-32020 |
SV10..SE,VE,VX,ZX W/POWER WINDOW |
1 | ||
| 82161-32050 |
CV10,SV1#..4D..(SE,VE,VF,XE) |
1 | ||
| 82161-32060 |
CV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX) W/POWER WINDOW |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-32030 |
SV10..SE,VE |
1 | ||
| 82161-32020 |
SV10..SE,VE,VX,ZX W/POWER WINDOW |
1 | ||
| 82161-32050 |
CV10,SV1#..4D..(SE,VE,VF,XE) |
1 | ||
| 82161-32060 |
CV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX) W/POWER WINDOW |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-32020 |
CV10,SV10..SE,VE,VF,VX,XE,ZX |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-32020 |
CV10,SV10..SE,VE,VF,VX,XE,ZX |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32020 |
CV1#,SV1#..SE,VE,VF,VR,VX,XE,ZE,ZX |
1 | ||
| 82171-32030 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/SUN ROOF |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32020 |
CV1#,SV1#..SE,VE,VF,VR,VX,XE,ZE,ZX |
1 | ||
| 82171-32030 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/SUN ROOF |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32010 |
CV10,SV1#..4D |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32010 |
CV10,SV1#..4D |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-32020 |
SV10..4D..(SE,VE,VR,VX,ZE,ZX);CV10,SV11,12..4D..(VF,VX,XE,ZX) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-32020 |
SV10..4D..(SE,VE,VR,VX,ZE,ZX);CV10,SV11,12..4D..(VF,VX,XE,ZX) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-32020 |
SV10..4D..(SE,VE,VR,VX,ZE,ZX);CV10,SV11,12..4D..(VF,VX,XE,ZX) |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06122 | ||||
| 90119-06171 | ||||

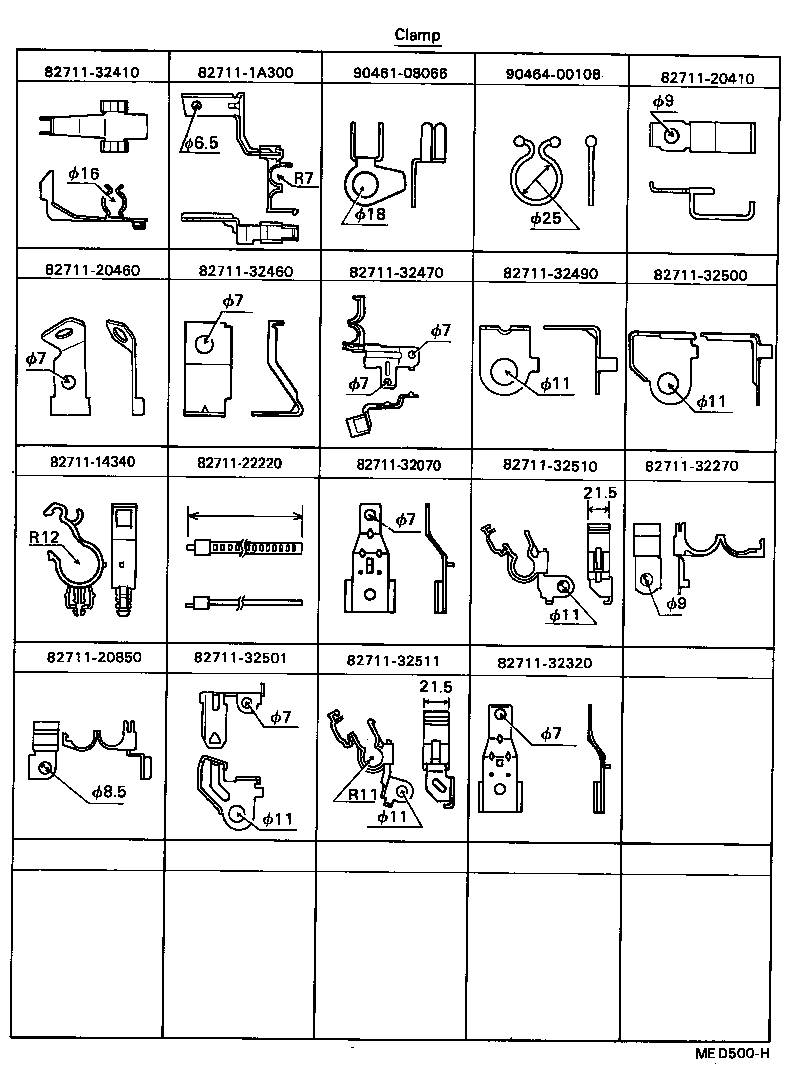

ILLUST NO. 4 OF 5(8203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14340 | ||||
| 82711-1A300 | ||||
| 82711-20410 | ||||
| 82711-20460 | ||||
| 82711-20850 | ||||
| 82711-22220 | ||||
| 82711-32070 | ||||
| 82711-32270 | ||||
| 82711-32320 | ||||
| 82711-32410 | ||||
| 82711-32460 | ||||
| 82711-32470 | ||||
| 82711-32490 | ||||
| 82711-32500 | ||||
| 82711-32501 | ||||
| 82711-32510 | ||||
| 82711-32511 | ||||
| 90461-08066 | ||||
| 90464-00108 | ||||
