SV10-UEMDS (1982)

Toyota Camry/Vista

Production Mar 1982 - Jun 1984
Engine 1SLU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)1SLU

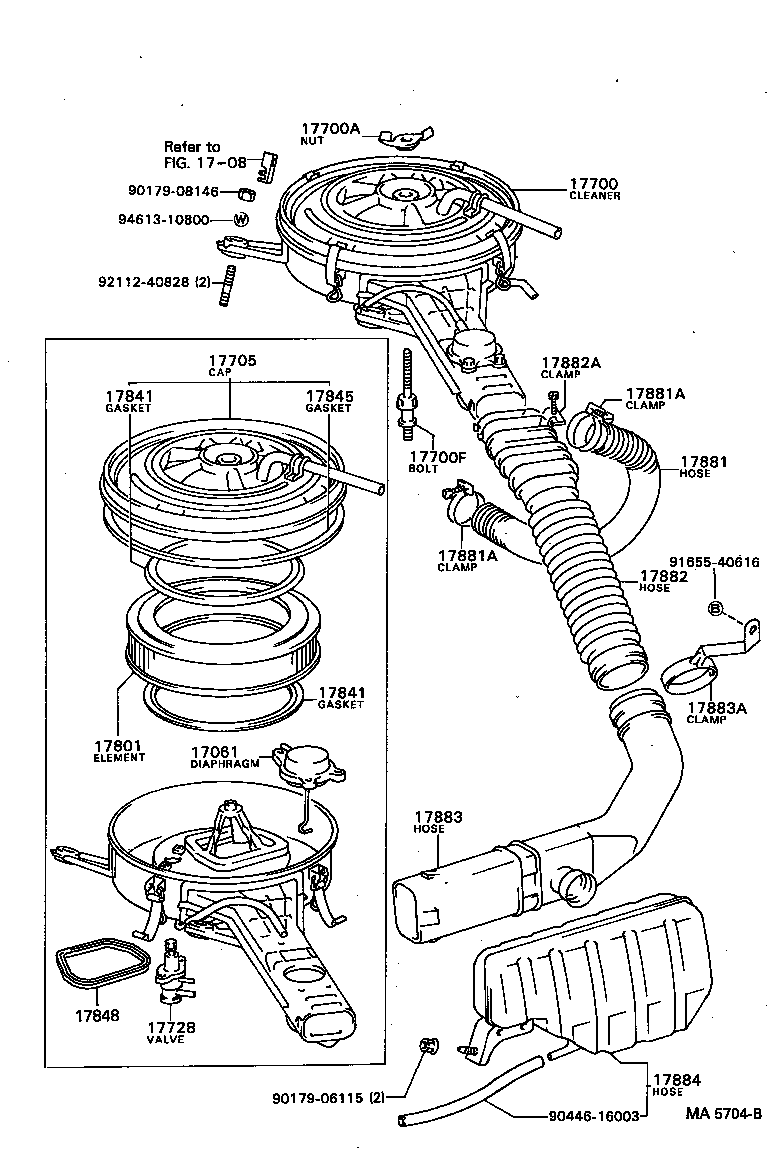

Click highlighted areas on diagram

diagram 17061 1708 17700 17700A 17700F 17705 17728 17801 17841 17841 17845 17848 17881 17881A 17881A 17882 17882A 17883 17883A 17884 9017906115 9017908146 9044616003 9165540616 9211240828 9461310800
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-63020

1SLU..SV10

 1
17700 - CLEANER ASSY, AIR
17700-63020

1SLU..SV10

 1
17700-63022

1SLU..SV10

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06011

1SLU..SV10

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06026

1SLU..SV10

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-63020

1SLU..SV10

 1
17728 - VALVE, THERMOSTATIC
17728-63020

1SLU..SV10

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25010

1SLU..SV10

 1
17841 - GASKET, FILTER ELEMENT
17841-63010

1SLU..SV10

 2
17841 - GASKET, FILTER ELEMENT
17841-63010

1SLU..SV10

 2
17845 - GASKET, AIR CLEANER CAP
17845-63020

1SLU..SV10

 1
17845-37020

1SLU..SV10

*G,L=980

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-37011

1SLU..SV10

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-63020

1SLU..SV10

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

1SLU..SV10

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

1SLU..SV10

 2
17882 - HOSE, AIR CLEANER, NO.2
17881-32010

1SLU..SV10

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01005

1SLU..SV10

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-32010

1SLU..SV10

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-60002

1SLU..SV10

 1
17884 - HOSE, AIR CLEANER, NO.4
17883-32010

1SLU..SV10

 1
Common parts
90179-06115
90179-08146
90446-16003
91655-40616
92112-40828
94613-10800
Linked diagrams
1708
