SV10-UEMDL (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )LT,VC,VL,XT

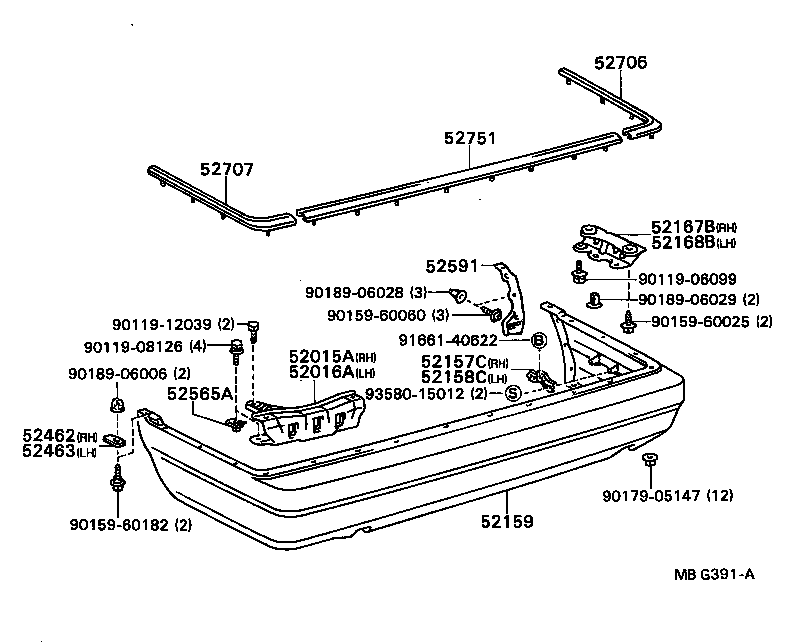

Click highlighted areas on diagram

diagram 52015A 52016A 52157C 52158C 52159 52167B 52168B 52462 52463 52565A 52591 52706 52707 52751 9011906099 9011908126 9011912039 9015960025 9015960060 9015960182 9017905147 9018906006 9018906028 9018906029 9166140622 9358015012
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-32040

CV1#,SV10..LT,VC,VL,XT

W/P.P. BUMPER

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52015-32040

CV1#,SV10..LT,VC,VL,XT

W/P.P. BUMPER

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-32030

CV1#,SV10..LT,VC,VL,XT

W/P.P. BUMPER

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52157-32030

CV1#,SV10..LT,VC,VL,XT

W/P.P. BUMPER

 1
52159 - COVER, REAR BUMPER
52159-32020

CV10,SV1#..LT,VC,VL,XT

BLACK

 1
52159-32100

CV1#,SV10..LT,VC,VL,XT

P.P. BUMPER

 1
52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH
52167-32010

CV1#,SV1#

 1
52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH
52168-32010

CV1#,SV1#

 1
52462 - PAD, REAR BUMPER, RH
52462-32010

CV1#,SV1#

 1
52463 - PAD, REAR BUMPER, LH
52463-32010

CV1#,SV1#

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-16020

CV1#,SV10..LT,VC,VL,XT

W/P.P. BUMPER

 8
52565-32010

CV10,SV1#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-32010

CV1#,SV1#

 1
52706 - MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
52706-32020

CV1#,SV10..LT,VC,VL,XT

W/P.P. BUMPER

 1
52707 - MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
52707-32020

CV1#,SV10..LT,VC,VL,XT

W/P.P. BUMPER

 1
52751 - MOULDING, REAR BUMPER
52751-32020

CV1#,SV10..LT,VC,VL,XT

W/P.P. BUMPER

 1
Common parts
90119-06099
90119-08126
90119-12039
90159-60025
90159-60060
90159-60182
90179-05147
90189-06006
90189-06028
90189-06029
91661-40622
93580-15012
