SV10-UEMDL (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )1SILU

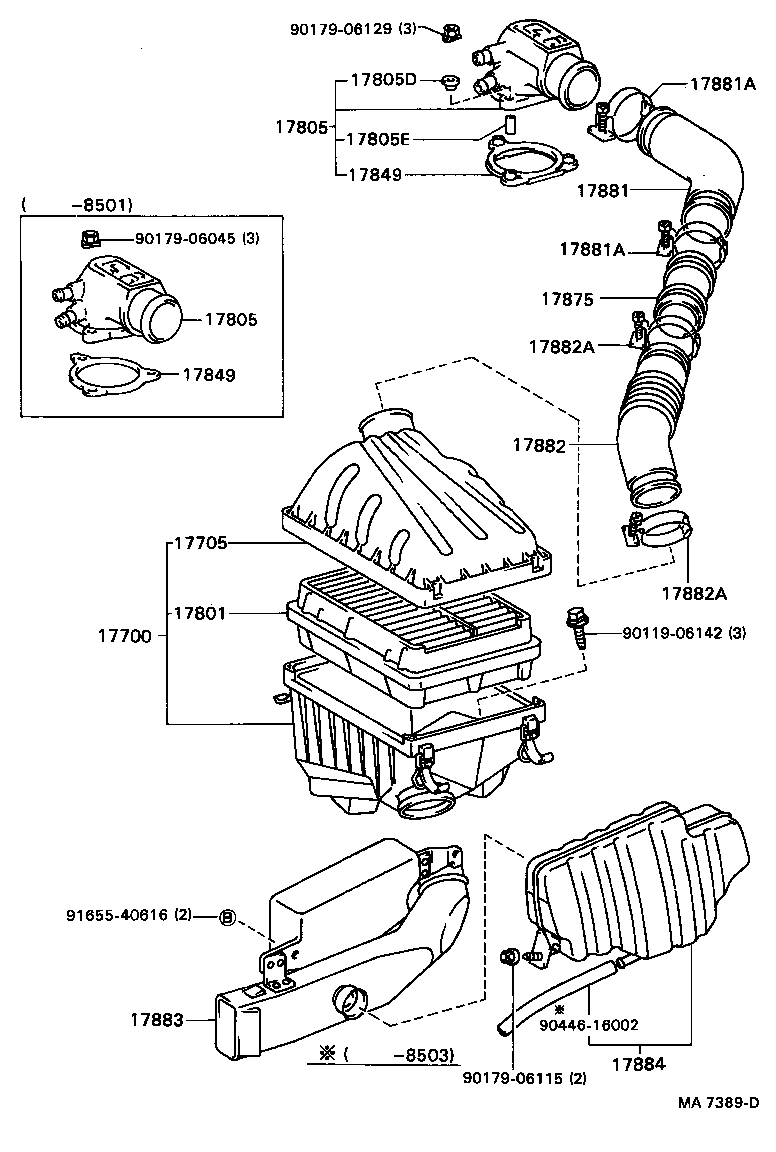

Click highlighted areas on diagram

diagram 17700 17705 17801 17805 17805 17805D 17805E 17849 17849 17875 17881 17881A 17881A 17882 17882A 17882A 17883 17884 9011906142 9017906045 9017906115 9017906129 9044616002 9165540616
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-63080

1SILU..SV10

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-63060

1SILU..SV10

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-63010

1SILU..SV10

 1
17860-63010

1SILU..SV10

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-63010

1SILU..SV10

 1
17860-63010

1SILU..SV10

 1
17805D - GROMMET(FOR INTAKE AIR CONNECTOR)
90480-12011

1SILU..SV10

 3
17805E - COLLAR(FOR INTAKE AIR CONNECTOR)
90387-06029

1SILU..SV10

 3
17849 - GASKET, INTAKE AIR CONNECTOR
17849-63010

1SILU..SV10

 1
17849-63011

1SILU..SV10

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-63010

1SILU..SV10

 1
17849-63011

1SILU..SV10

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-63010

1SILU..SV10

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-63030

1SILU..SV10

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-63050

1SILU..SV10

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1SILU..SV10

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1SILU..SV10

 2
17883 - HOSE, AIR CLEANER, NO.3
17880-32020

1SILU..SV10

 1
17884 - HOSE, AIR CLEANER, NO.4
17883-32030

1SILU,2SELU..SV10,11

 1
Common parts
90119-06142
90179-06045
90179-06115
90179-06129
90446-16002
91655-40616
