SV10-JEPNS (1982)
Toyota Camry/Vista

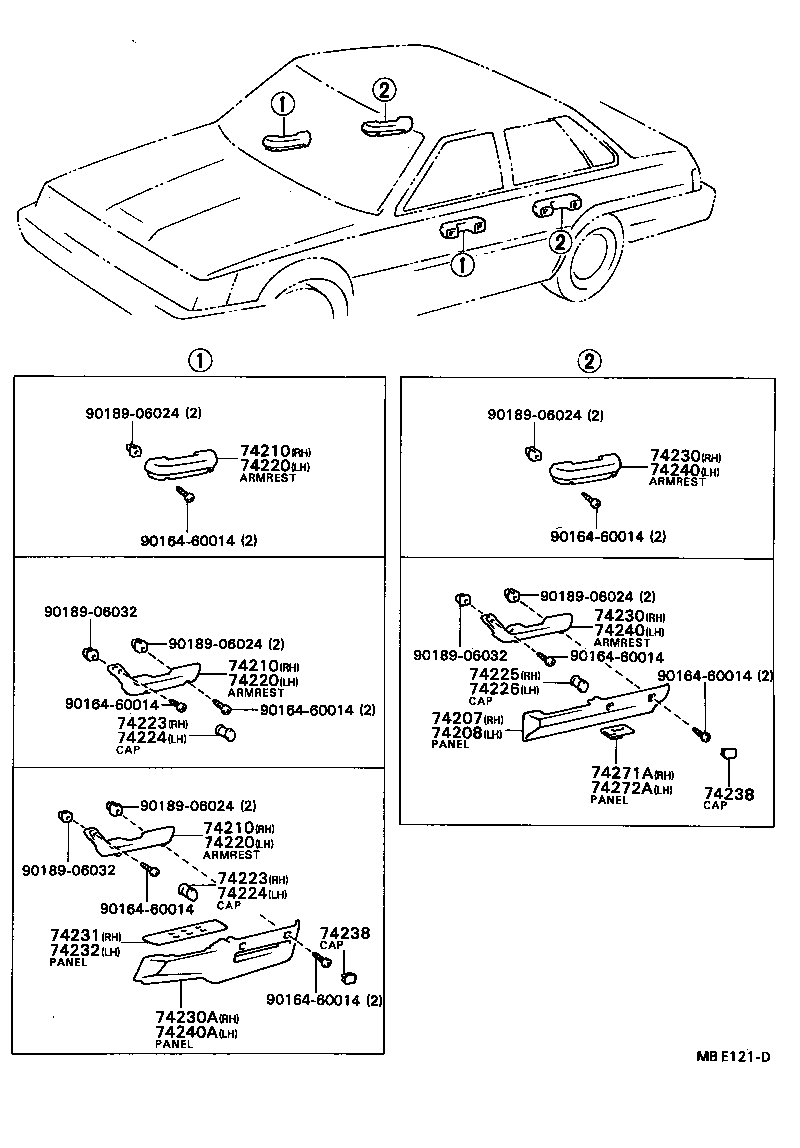

ILLUST NO. 2 OF 2(8203-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3201006 |
CV10,SV1#..SE,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3201003 |
CV10,SV1#..SE,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74210-3201004 |
CV10,SV11..VF,VL,XE,XT;CV11,SV10..SE,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3201006 |
CV10,SV1#..SE,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3201003 |
CV10,SV1#..SE,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74210-3201004 |
CV10,SV11..VF,VL,XE,XT;CV11,SV10..SE,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3201006 |
CV10,SV1#..SE,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74210-3201003 |
CV10,SV1#..SE,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74210-3201004 |
CV10,SV11..VF,VL,XE,XT;CV11,SV10..SE,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3201003 |
CV10,SV1#..SE,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74220-3201006 |
CV10,SV1#..SE,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3201004 |
CV10,SV11..VF,VL,XE,XT;CV11,SV10..SE,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3201003 |
CV10,SV1#..SE,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74220-3201006 |
CV10,SV1#..SE,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3201004 |
CV10,SV11..VF,VL,XE,XT;CV11,SV10..SE,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3201003 |
CV10,SV1#..SE,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74220-3201006 |
CV10,SV1#..SE,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74220-3201004 |
CV10,SV11..VF,VL,XE,XT;CV11,SV10..SE,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-2001003 |
CV10,SV1#..SE,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74223-2001004 |
CV10,SV11..VF,VL,XE,XT;CV11,SV10..SE,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74223-2001016 |
CV10,SV1#..SE,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-2001003 |
CV10,SV1#..SE,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74223-2001004 |
CV10,SV11..VF,VL,XE,XT;CV11,SV10..SE,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74223-2001016 |
CV10,SV1#..SE,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74224-2001003 |
CV10,SV1#..SE,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74224-2001016 |
CV10,SV1#..SE,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74224-2001004 |
CV10,SV11..VF,VL,XE,XT;CV11,SV10..SE,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74224-2001003 |
CV10,SV1#..SE,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74224-2001016 |
CV10,SV1#..SE,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74224-2001004 |
CV10,SV11..VF,VL,XE,XT;CV11,SV10..SE,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-2206016 |
CV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206013 |
CV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-2206016 |
CV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74210-2206013 |
CV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-2206013 |
CV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74210-2206016 |
CV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV11..VF,VL,XE,XT;SV10..LT,SE,VC,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-2206013 |
CV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT GRAY,GRAY,TRIM1# |
1 | ||
| 74210-2206016 |
CV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT BROWN,BROWN,TRIM4# |
1 | ||
| 74210-2206004 |
CV10,SV11..VF,VL,XE,XT;SV10..LT,SE,VC,VE,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90189-06024 | ||||
| 90189-06032 | ||||
