SV10-JEPNS (1982)
Toyota Camry/Vista
Production
Jul 1982
-
Jun 1984
Engine
1SLU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 4(8207- )CV1#,SV10..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-10055 |
SV1#..4FC |
1 | ||
| Common parts | ||||
| 94542-00600 | ||||
ILLUST NO. 3 OF 4(8207- )CV1#,SV10..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-07021 |
SV10..4FC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-32010 |
CV10,SV1#..4FC |
1 | ||

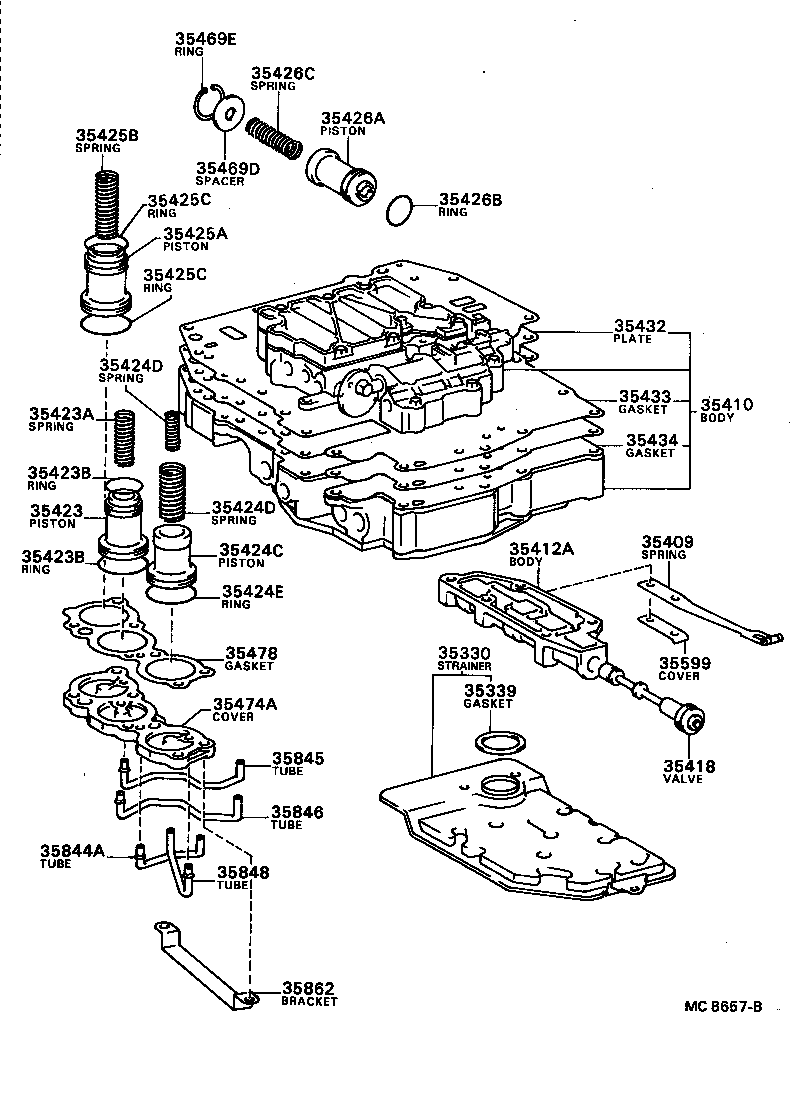

ILLUST NO. 1 OF 4(8207- )CV1#,SV10..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-32020 |
SV10..4FC |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-20052 |
SV10..4FC |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23045 |
CV10,SV1#..4FC OUTER |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23045 |
CV10,SV1#..4FC OUTER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-23037 |
SV10..4FC |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-32011 |
CV10,SV10..4FC |
1 | ||
| 35432-32010 |
CV10,SV10..4FC |
1 | ||
ILLUST NO. 4 OF 4(8207- )CV1#,SV10..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05010 | ||||
| 90105-05011 | ||||
| 90105-06017 | ||||
| 90105-06025 | ||||
| 90105-06026 | ||||
| 90105-06028 | ||||
| 90105-06029 | ||||
| 90105-06030 | ||||
