SV10-JEPNS (1982)

Toyota Camry/Vista

Production Jul 1982 - Jun 1984
Engine 1SLU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8207- )4FC

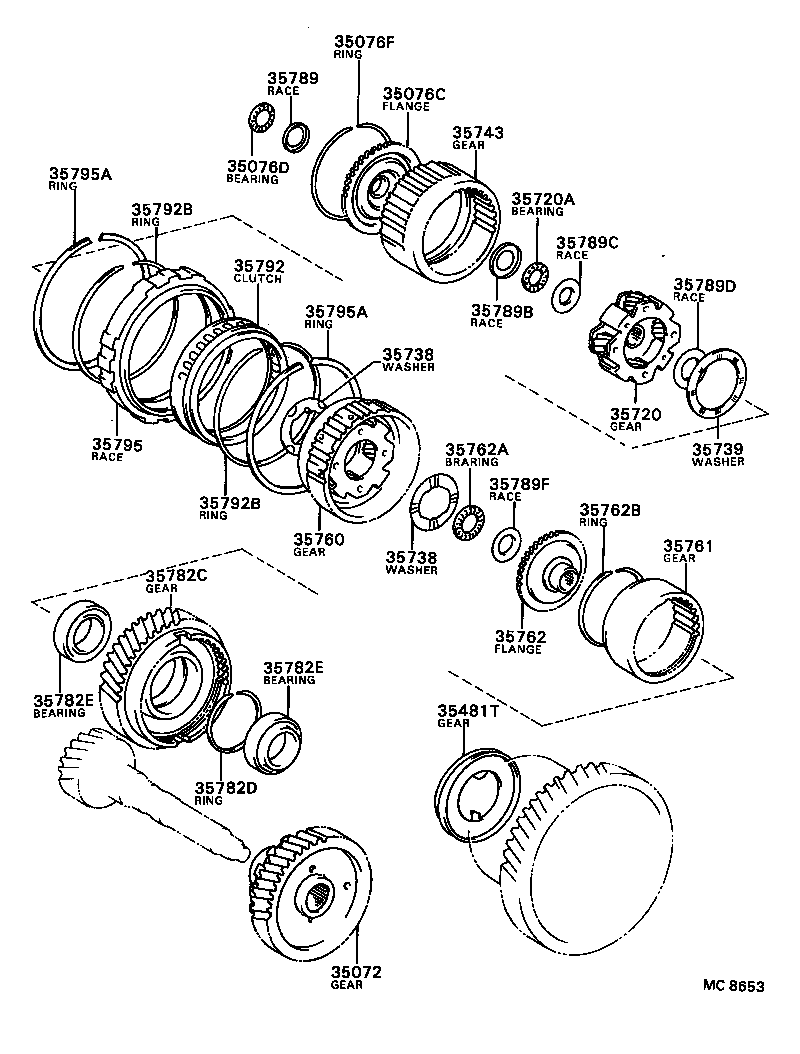

Click highlighted areas on diagram

diagram 35072 35076C 35076D 35076F 35481T 35720 35720A 35738 35738 35739 35743 35760 35761 35762 35762A 35762B 35782C 35782D 35782E 35782E 35789 35789B 35789C 35789D 35789F 35792 35792B 35792B 35795 35795A 35795A
Part # Description Qty Price
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-32010

CV10,SV1#..4FC

 1
35743 - GEAR, FRONT PLANETARY RING
35743-32010

CV10,SV1#..4FC

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-32010

CV10,SV1#..4FC

 1
