SV10-JEPNS (1982)

Toyota Camry/Vista

Production Jul 1982 - Jun 1984
Engine 1SLU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8207- )4FC

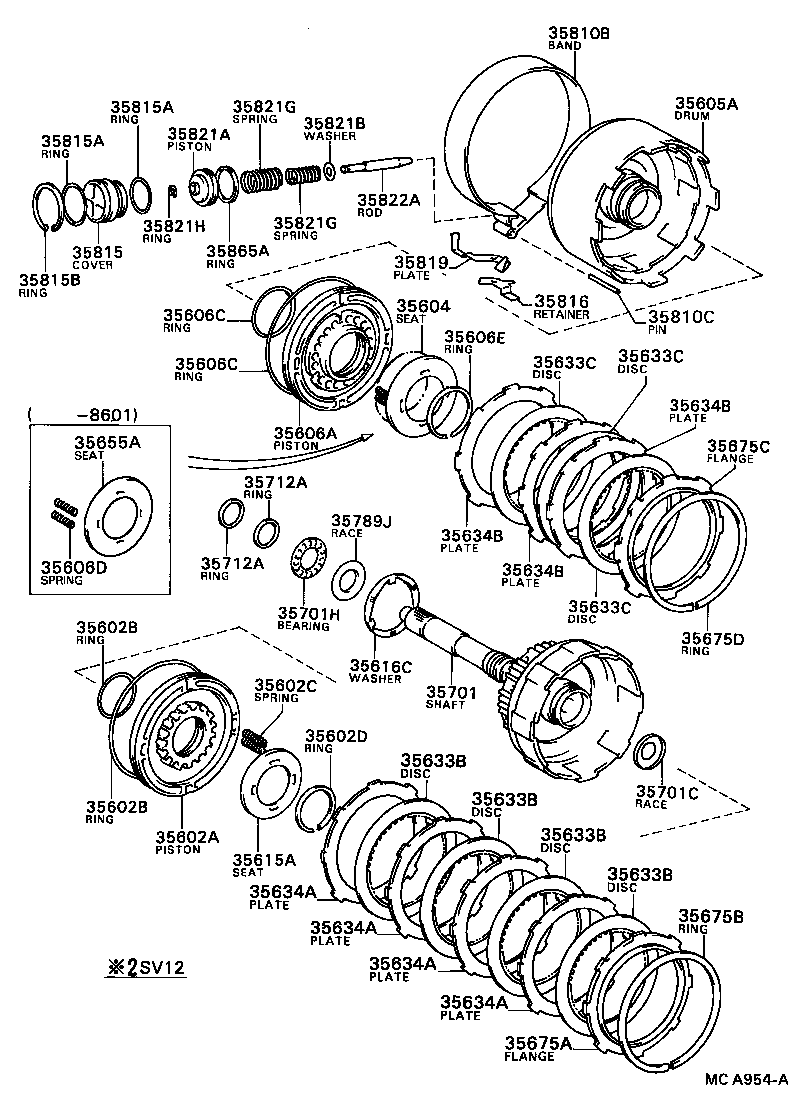

Click highlighted areas on diagram

diagram 35602A 35602B 35602B 35602C 35602D 35604 35605A 35606A 35606C 35606C 35606D 35606E 35615A 35616C 35633B 35633B 35633B 35633B 35633C 35633C 35633C 35634A 35634A 35634A 35634A 35634B 35634B 35634B 35655A 35675A 35675B 35675C 35675D 35701 35701C 35701H 35712A 35712A 35789J 35810B 35810C 35815 35815A 35815A 35815B 35816 35819 35821A 35821B 35821G 35821G 35821H 35822A 35865A
Part # Description Qty Price
35602A - PISTON SUB-ASSY, FORWARD CLUTCH
35602-32010

CV10,SV1#..4FC

 1
35602C - SPRING, COMPRESSION (FOR FORWARD CLUTCH PISTON RETURN)
90501-10671

CV10,SV1#..4FC

 18
35605A - DRUM SUB-ASSY, DIRECT CLUTCH
35605-32020

CV10,SV10..4FC

 1
35606A - PISTON SUB-ASSY, DIRECT CLUTCH
35606-32010

CV10,SV1#..4FC

 1
35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)
35616-32020

CV10,SV1#..4FC

 1
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-32010

CV10,SV1#..4FC

 3
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-32010

CV10,SV1#..4FC

 3
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-32010

CV10,SV1#..4FC

 3
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-32010

CV10,SV1#..4FC

 3
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35633-32010

CV10,SV1#..4FC

 3
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35633-32010

CV10,SV1#..4FC

 3
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35633-32010

CV10,SV1#..4FC

 3
35701 - SHAFT SUB-ASSY, INPUT
35701-32020

CV10,SV1#..4FC

 1
35701-32010

CV10,SV1#..4FC

 1
35810B - BAND ASSY, 2ND COAST BRAKE
35810-32010

CV10,SV1#..4FC

 1
