SV10-JEPNS (1982)
Toyota Camry/Vista
Production
Jul 1982
-
Jun 1984
Engine
1SLU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8203-8406)1SLU

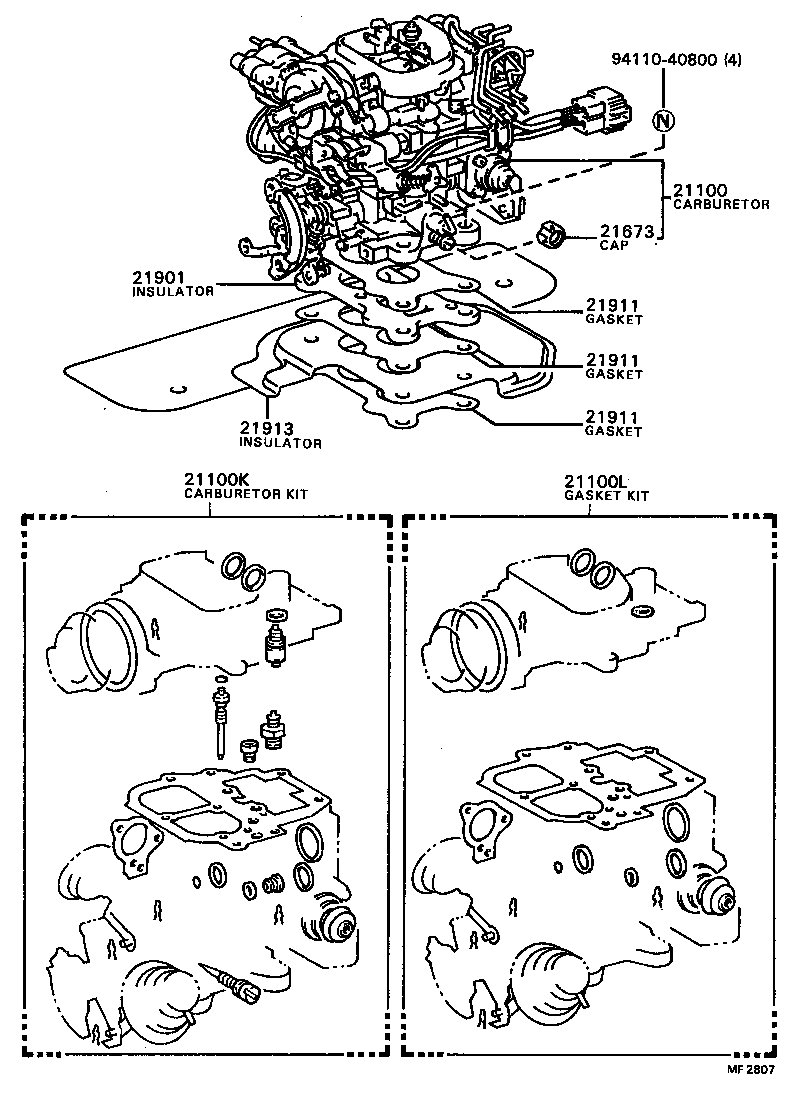

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21100 - CARBURETOR ASSY | ||||
| 21100-63060 |
1SLU..SV10..4FC |
1 | ||
| 21100-63130 |
1SLU..SV10..4FC COLD SPEC |
1 | ||
| 21100-63130 |
1SLU..SV10..4FC |
1 | ||
| 21100-63061 |
1SLU..SV10..4FC |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-63021 |
1SLU..SV10..4FC |
1 | ||
| 04211-63022 |
1SLU..SV10 |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-63010 |
1SLU..SV10 |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-38020 |
1SLU..SV10 |
1 | ||
| 21673-13280 |
1SLU..SV10 |
1 | ||
| 21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1 | ||||
| 21901-63020 |
1SLU..SV10 |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-63010 |
1SLU..SV10 |
3 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-63010 |
1SLU..SV10 |
3 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-63010 |
1SLU..SV10 |
3 | ||
| 21913 - INSULATOR, CARBURETOR HEAT, NO.2 | ||||
| 21902-63020 |
1SLU..SV10 |
1 | ||
| 21902-63021 |
1SLU..SV10 |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
