SV10-JEPNL (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )

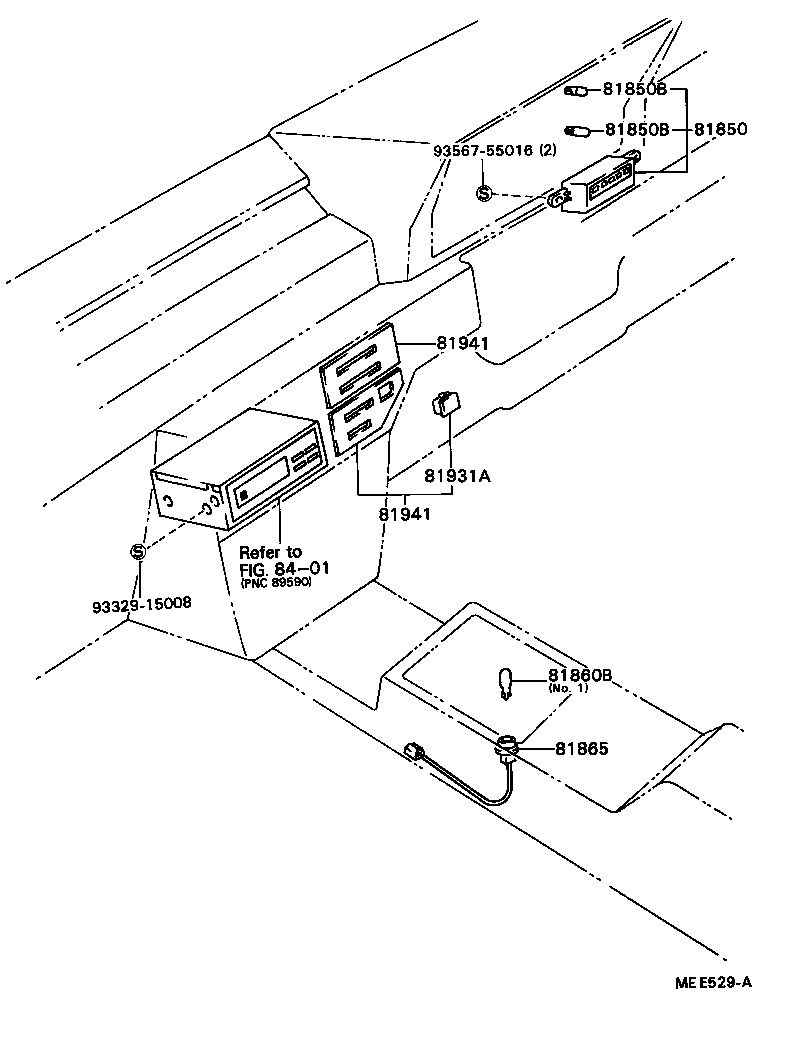

Click highlighted areas on diagram

diagram 81850 81850B 81850B 81860B 81865 81931A 81941 81941 8401 9332915008 9356755016
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-32020

CV1#,SV10..4FC

 1
81850B - BULB, INDICATOR LAMP
84999-20040

CV1#,SV1#..4FC

BASE=BLUE

 1
84999-20020

CV1#,SV1#..4FC

BASE=BLACK

 10
81850B - BULB, INDICATOR LAMP
84999-20040

CV1#,SV1#..4FC

BASE=BLUE

 1
84999-20020

CV1#,SV1#..4FC

BASE=BLACK

 10
81865 - SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP
35906-32030

CV1#,SV1#..4FC

 1
81931A - COVER, COOLER SWITCH HOLE
55538-32010

CV1#,SV1#

 1
81941 - PLATE, HEATER CONTROL NAME
55519-32021

CV1#,SV1#

LWR

 1
55519-32020

CV10,SV1#

LWR

 1
55519-32011

CV1#,SV1#

UPR

 1
55519-32010

CV10,SV1#

UPR

 1
81941 - PLATE, HEATER CONTROL NAME
55519-32021

CV1#,SV1#

LWR

 1
55519-32020

CV10,SV1#

LWR

 1
55519-32011

CV1#,SV1#

UPR

 1
55519-32010

CV10,SV1#

UPR

 1
Common parts
93329-15008
93567-55016
Linked diagrams
8401
