SV10-JEPNL (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

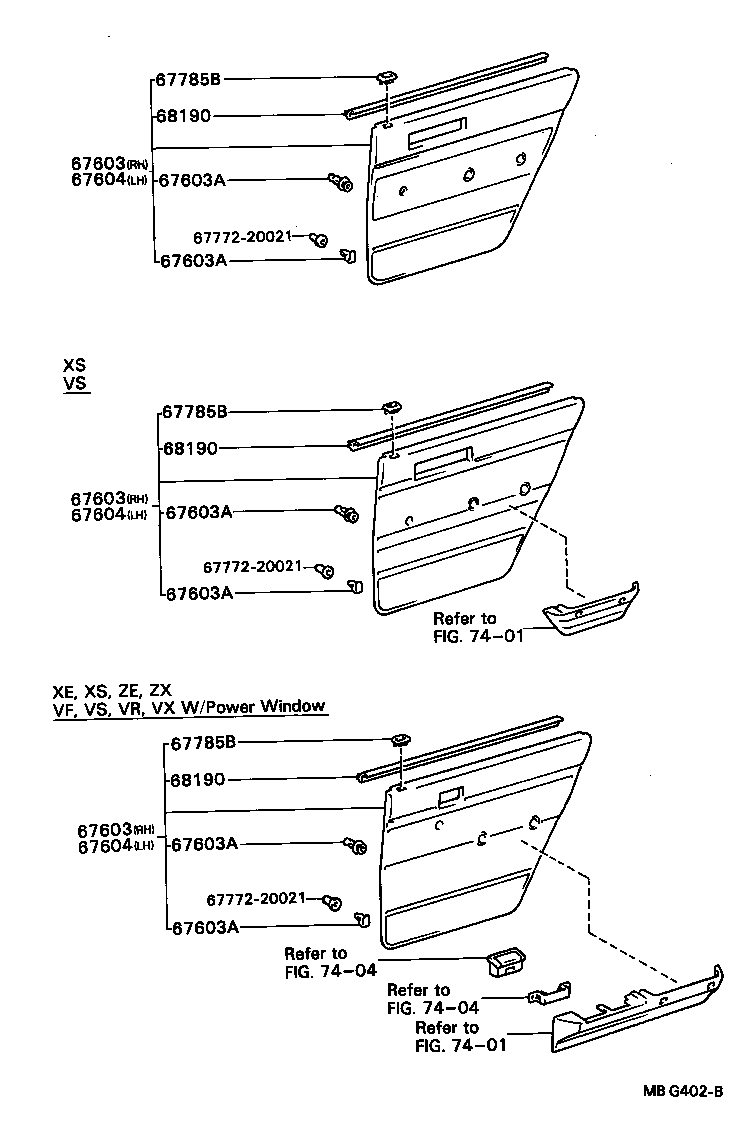

ILLUST NO. 2 OF 2(8406- )

Click highlighted areas on diagram

diagram 67603 67603 67603 67603A 67603A 67603A 67603A 67603A 67603A 67604 67604 67604 6777220021 6777220021 6777220021 67785B 67785B 67785B 68190 68190 68190 7401 7401 7404 7404
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-3202004

SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67630-3202003

SV10..VL,XT

GRAY,GRAY,TRIM1#

 1
67630-3202006

SV10..VL,XT

BROWN,BROWN,TRIM4#

 1
67630-3217004

CV1#,SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67630-3217005

CV1#,SV10..VL,XT

BEIGE,BEIGE,TRIM4#

 1
67630-3217003

CV1#,SV10..VL,XT

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-3202004

SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67630-3202003

SV10..VL,XT

GRAY,GRAY,TRIM1#

 1
67630-3202006

SV10..VL,XT

BROWN,BROWN,TRIM4#

 1
67630-3217004

CV1#,SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67630-3217005

CV1#,SV10..VL,XT

BEIGE,BEIGE,TRIM4#

 1
67630-3217003

CV1#,SV10..VL,XT

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-3202004

SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67630-3202003

SV10..VL,XT

GRAY,GRAY,TRIM1#

 1
67630-3202006

SV10..VL,XT

BROWN,BROWN,TRIM4#

 1
67630-3217004

CV1#,SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67630-3217005

CV1#,SV10..VL,XT

BEIGE,BEIGE,TRIM4#

 1
67630-3217003

CV1#,SV10..VL,XT

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-14010

CV1#,SV1#

 2
67771-12010

SV10

TYPE A,L=20.7

 18
67771-14010

CV10,SV1#

TYPE C

 2
67771-22010

CV1#,SV1#

L=21.4

 18
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-14010

CV1#,SV1#

 2
67771-12010

SV10

TYPE A,L=20.7

 18
67771-14010

CV10,SV1#

TYPE C

 2
67771-22010

CV1#,SV1#

L=21.4

 18
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-14010

CV1#,SV1#

 2
67771-12010

SV10

TYPE A,L=20.7

 18
67771-14010

CV10,SV1#

TYPE C

 2
67771-22010

CV1#,SV1#

L=21.4

 18
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-14010

CV1#,SV1#

 2
67771-12010

SV10

TYPE A,L=20.7

 18
67771-14010

CV10,SV1#

TYPE C

 2
67771-22010

CV1#,SV1#

L=21.4

 18
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-14010

CV1#,SV1#

 2
67771-12010

SV10

TYPE A,L=20.7

 18
67771-14010

CV10,SV1#

TYPE C

 2
67771-22010

CV1#,SV1#

L=21.4

 18
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-14010

CV1#,SV1#

 2
67771-12010

SV10

TYPE A,L=20.7

 18
67771-14010

CV10,SV1#

TYPE C

 2
67771-22010

CV1#,SV1#

L=21.4

 18
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-3202004

SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67640-3202006

SV10..VL,XT

BROWN,BROWN,TRIM4#

 1
67640-3202003

SV10..VL,XT

GRAY,GRAY,TRIM1#

 1
67640-3217003

CV1#,SV10..VL,XT

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
67640-3217005

CV1#,SV10..VL,XT

BEIGE,BEIGE,TRIM4#

 1
67640-3217004

CV1#,SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-3202004

SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67640-3202006

SV10..VL,XT

BROWN,BROWN,TRIM4#

 1
67640-3202003

SV10..VL,XT

GRAY,GRAY,TRIM1#

 1
67640-3217003

CV1#,SV10..VL,XT

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
67640-3217005

CV1#,SV10..VL,XT

BEIGE,BEIGE,TRIM4#

 1
67640-3217004

CV1#,SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-3202004

SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67640-3202006

SV10..VL,XT

BROWN,BROWN,TRIM4#

 1
67640-3202003

SV10..VL,XT

GRAY,GRAY,TRIM1#

 1
67640-3217003

CV1#,SV10..VL,XT

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
67640-3217005

CV1#,SV10..VL,XT

BEIGE,BEIGE,TRIM4#

 1
67640-3217004

CV1#,SV10..VL,XT

BLUE,BLUE,TRIM8#

 1
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-2006004

CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX

BLUE,BLUE,TRIM8#

 2
69751-2006003

CV1#,SV1#

SHADOW GRAY,SHADOW GRAY,TRIM1#

 2
69751-2006005

CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX

BEIGE,BEIGE,TRIM4#

 2
69751-20040

CV10,SV1#

 2
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-2006004

CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX

BLUE,BLUE,TRIM8#

 2
69751-2006003

CV1#,SV1#

SHADOW GRAY,SHADOW GRAY,TRIM1#

 2
69751-2006005

CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX

BEIGE,BEIGE,TRIM4#

 2
69751-20040

CV10,SV1#

 2
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-2006004

CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX

BLUE,BLUE,TRIM8#

 2
69751-2006003

CV1#,SV1#

SHADOW GRAY,SHADOW GRAY,TRIM1#

 2
69751-2006005

CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX

BEIGE,BEIGE,TRIM4#

 2
69751-20040

CV10,SV1#

 2
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-32010

CV1#,SV1#

 2
68190-32020

CV10,SV1#

 2
68190-32010

CV10,SV1#

 2
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-32010

CV1#,SV1#

 2
68190-32020

CV10,SV1#

 2
68190-32010

CV10,SV1#

 2
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-32010

CV1#,SV1#

 2
68190-32020

CV10,SV1#

 2
68190-32010

CV10,SV1#

 2
Common parts
67772-20021
Linked diagrams
7401
7404
