SV10-JEMZS (1982)

Toyota Camry/Vista

Production Mar 1982 - Jun 1984
Engine 1SLU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203- )CAM

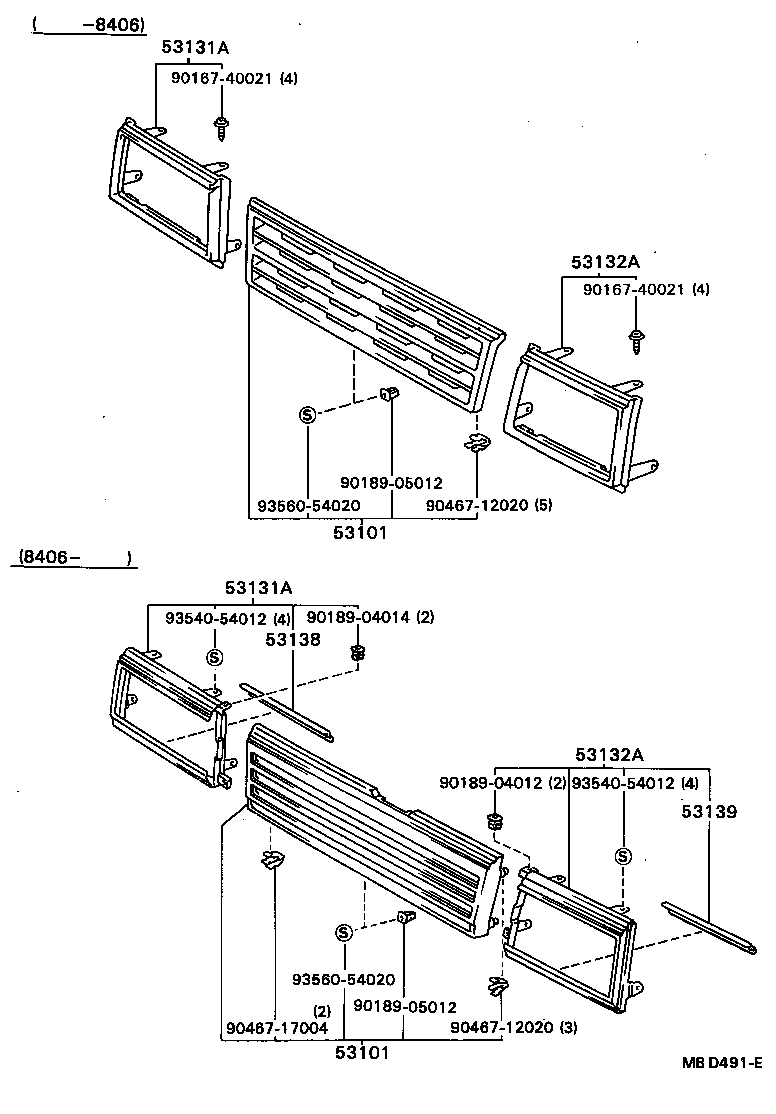

Click highlighted areas on diagram

diagram 53101 53101 53131A 53131A 53132A 53132A 53138 53139 9016740021 9016740021 9018904012 9018904014 9018905012 9018905012 9046712020 9046712020 9046717004 9354054012 9354054012 9356054020 9356054020
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-39025

CV10,SV1#..CAM

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-39025

CV10,SV1#..CAM

 1
53131A - DOOR, HEADLAMP, RH
53131-39095

CV10,SV1#..CAM

 1
53131A - DOOR, HEADLAMP, RH
53131-39095

CV10,SV1#..CAM

 1
53132A - DOOR, HEADLAMP, LH
53132-39095

CV10,SV1#..CAM

 1
53132A - DOOR, HEADLAMP, LH
53132-39095

CV10,SV1#..CAM

 1
Common parts
90167-40021
90189-04012
90189-04014
90189-05012
90467-12020
90467-17004
93540-54012
93560-54020
