SV10-JEMNS (1982)
Toyota Camry/Vista
Production
Mar 1982
-
Jun 1984
Engine
1SLU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8203-8406)1SLU

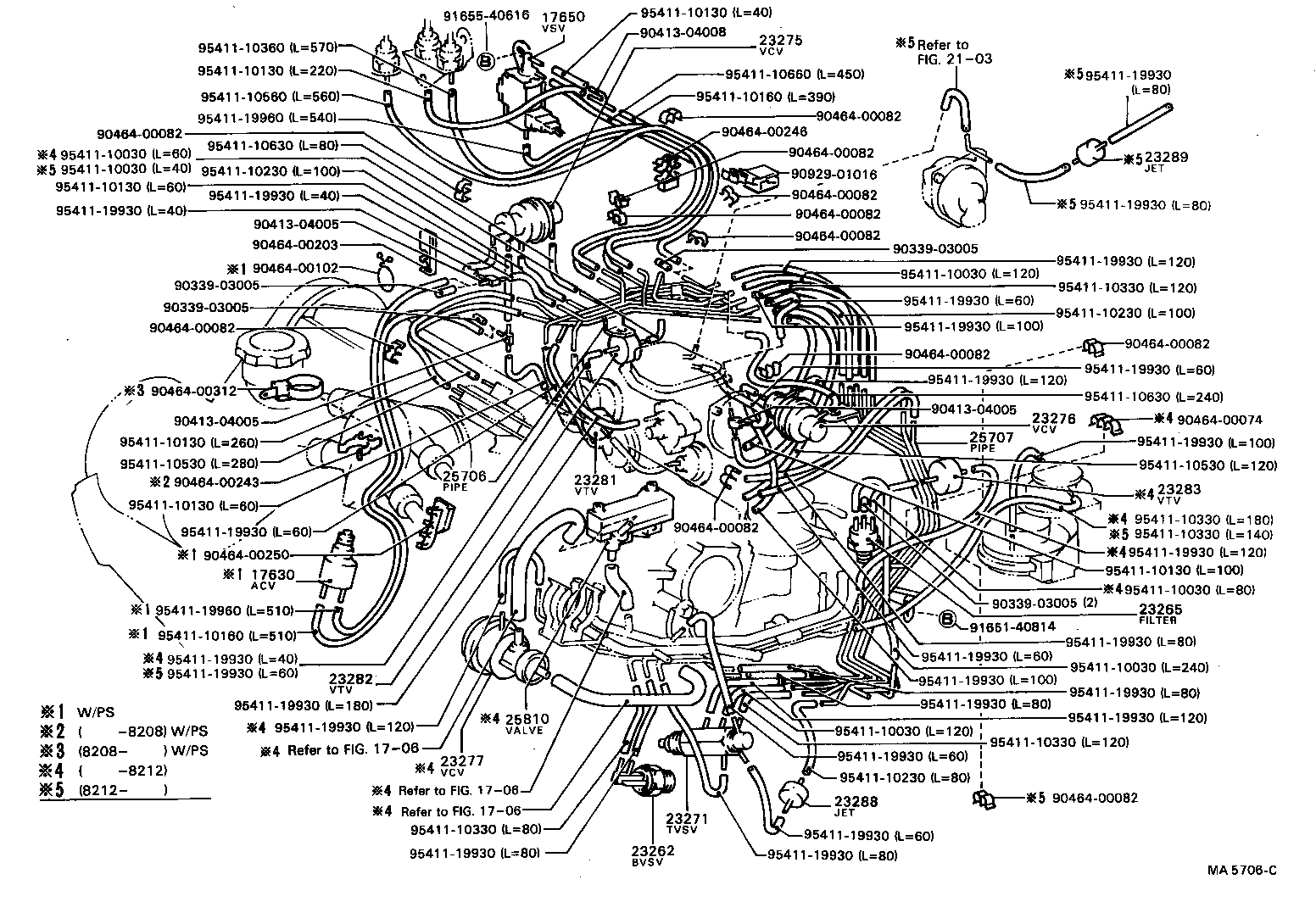

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
1SLU..SV10..SE,VE,VL,VX,XT,ZX W/PS |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-32010 |
1SLU..SV10 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05047 |
1SLU..SV10 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1SLU..SV10 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02075 |
1SLU..SV10 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03135 |
1SLU..SV10 |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03136 |
1SLU..SV10..5F |
1 | ||
| 23277 - VALVE, VACUUM CONTROL, NO.3 | ||||
| 90925-03140 |
1SLU..SV10 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01062 |
1SLU..SV10 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01092 |
1SLU..SV10 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01062 |
1SLU..SV10 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04004 |
1SLU..SV10 |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04006 |
1SLU..SV10 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-63041 |
1SLU..SV10 |
1 | ||
| 25706-63040 |
1SLU..SV10 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-63030 |
1SLU..SV10 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-63010 |
1SLU..SV10 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00203 | ||||
| 90464-00243 | ||||
| 90464-00246 | ||||
| 90464-00250 | ||||
| 90464-00312 | ||||
| 90929-01016 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10360 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10630 | ||||
| 95411-10660 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1706 | ||||
| 2103 | ||||
(8203- )1S#,2SELU,3SGELU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
