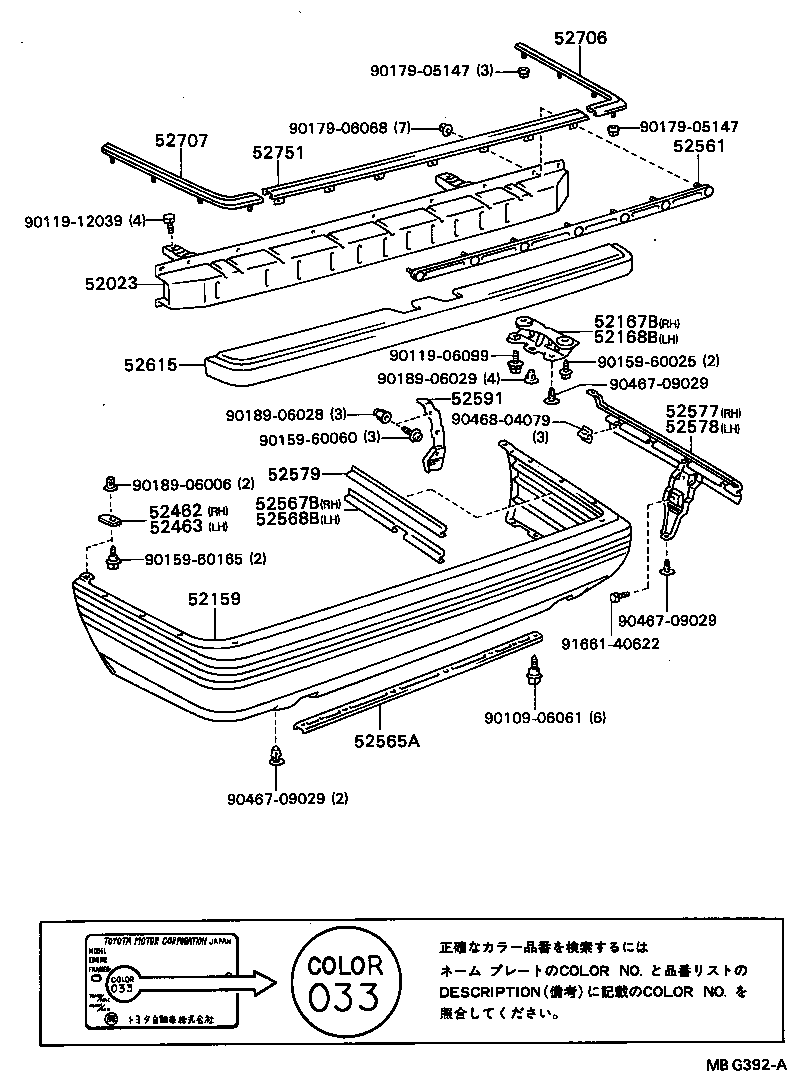

SV10-JEMGL (1984)
Toyota Camry/Vista
(8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-32010 |
CV10,SV1# |
1 | ||
| 52023-32040 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-3208003 |
CV10,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX *UB,SILVER-M,SILVER METALLIC,148 |
1 | ||
| 52159-3208014 |
CV10,SV1#..4D..(VF,VR,VX,XE,ZE,ZX) *UB,DARK BLUE-M,DARK BLUE METALLIC,2S9 |
1 | ||
| 52159-3208002 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX *UB,RED,RED,3D7 |
1 | ||
| 52159-3208008 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX *UB,WHITE,WHITE,041 |
1 | ||
| 52159-3208005 |
CV10,SV1#..VF,VL,VR,VS,VX,XE,XT,ZE,ZX *UB,BEIGE-M,LIGHT BEIGE,4D2 ,2T0 |
1 | ||
| 52159-3208025 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XT,ZE,ZX *UB,BEIGE-M,BEIGE METALLIC,4E6 |
1 | ||
| 52159-3208004 |
CV1#,SV1#..VF,VL,VR,VX,XE,XT,ZE,ZX *UB,BLUE-M,DARK TERCOISE BLUE M,8C2 |
1 | ||
| 52159-3208012 |
CV1#,SV10,11..VF,VL,VR,VX,XE,XT,ZE,ZX *UB,DARK RED,DARK RED,3F1 |
1 | ||
| 52159-3208013 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX *UB,GRAY-M,MEDIUM GRAY METALLIC,157 |
1 | ||
| 52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH | ||||
| 52167-32010 |
CV1#,SV1# |
1 | ||
| 52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH | ||||
| 52168-32010 |
CV1#,SV1# |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-32010 |
CV1#,SV1# |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52463-32010 |
CV1#,SV1# |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52521-32040 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52521-32010 |
CV10,SV1# |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52565-32010 |
CV10,SV1# |
1 | ||
| 52567B - RETAINER, REAR BUMPER SIDE, NO.4 RH | ||||
| 52567-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52568B - RETAINER, REAR BUMPER SIDE, NO.4 LH | ||||
| 52568-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-32010 |
CV10,SV1# |
1 | ||
| 52577-32020 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-32020 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52578-32010 |
CV10,SV1# |
1 | ||
| 52579 - RETAINER, REAR BUMPER SIDE, NO.3 | ||||
| 52579-32020 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
2 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-32010 |
CV1#,SV1# |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-32010 |
CV10,SV1# |
1 | ||
| 52615-32040 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52706 - MOULDING SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52706-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52707 - MOULDING SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52707-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| Common parts | ||||
| 90109-06061 | ||||
| 90119-06099 | ||||
| 90119-12039 | ||||
| 90159-60025 | ||||
| 90159-60060 | ||||
| 90159-60165 | ||||
| 90179-05147 | ||||
| 90179-06068 | ||||
| 90189-06006 | ||||
| 90189-06028 | ||||
| 90189-06029 | ||||
| 90467-09029 | ||||
| 90468-04079 | ||||
| 91661-40622 | ||||
