SV10-JEMES (1982)
Toyota Camry/Vista
(8203-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-32010 |
SV10 |
1 | ||
| 88603 - WIRE, IDLE UP DEVICE | ||||
| 88605-32040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC |
1 | ||
| 88605-32020 |
CV10,SV1# |
1 | ||
| 88603 - WIRE, IDLE UP DEVICE | ||||
| 88605-32040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC |
1 | ||
| 88605-32020 |
CV10,SV1# |
1 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90414-04002 |
SV10..SE,VE,VX,ZX W/*AAC,4-WAY |
1 | ||
| 90413-04001 |
SV10 3-WAY |
1 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
2 | ||
| 90413-04001 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC,HEATER IDLE UP,3-WAY |
3 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
3 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-32020 |
SV10..SE,VE,VX,ZX W/*AAC |
1 | ||
| 88690-32090 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC & *HIU |
1 | ||
| 88690-32030 |
SV10 |
1 | ||
| 88690-32040 |
SV10..5F W/*HIU |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-32020 |
SV10..SE,VE,VX,ZX W/*AAC |
1 | ||
| 88690-32090 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC & *HIU |
1 | ||
| 88690-32030 |
SV10 |
1 | ||
| 88690-32040 |
SV10..5F W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2 | ||||
| 95411-19930 |
SV10 *H,L=40,ﾏｰｸ=#* |
1 | ||
| 88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2 | ||||
| 95411-19930 |
SV10 *H,L=40,ﾏｰｸ=#* |
1 | ||
| Common parts | ||||
| 88569-32060 | ||||
| 88718-22420 | ||||
| 88895-95715 | ||||
| 90044-64009 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 90464-00248 | ||||
| 93385-16012 | ||||

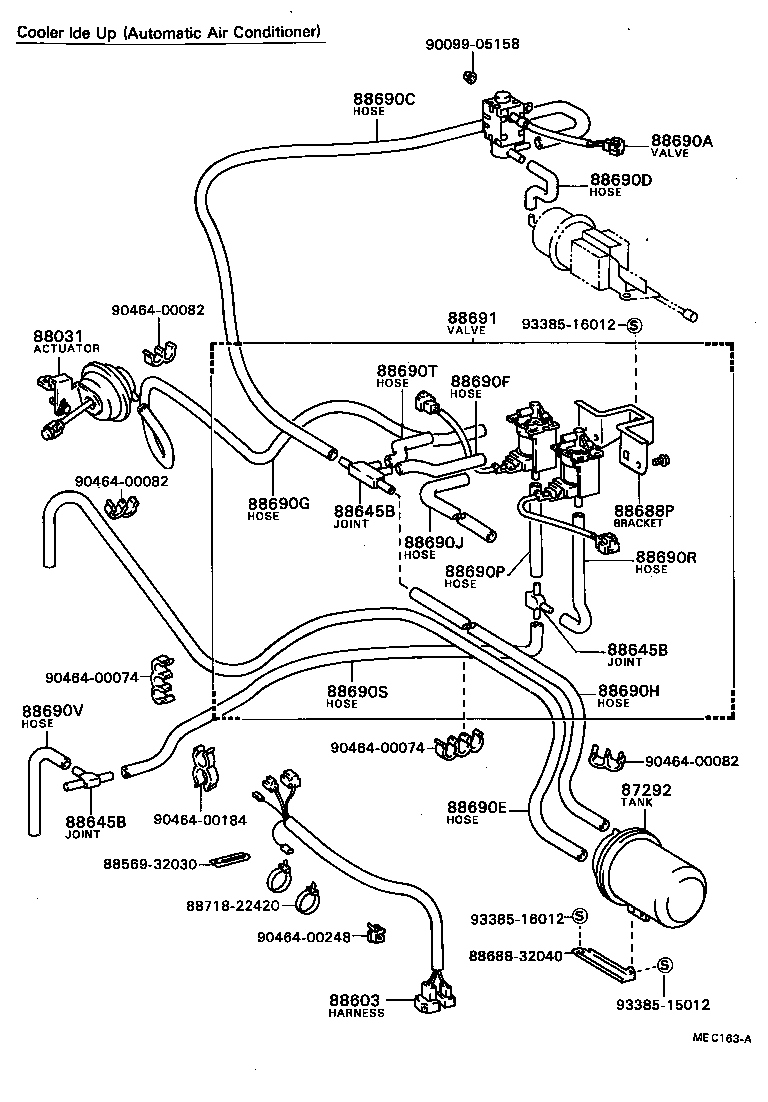

(8203-8207)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87292 - TANK, VACUUM | ||||
| 88683-32010 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/*AAC |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-32010 |
SV10 |
1 | ||
| 88603 - WIRE, IDLE UP DEVICE | ||||
| 88605-32040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC |
1 | ||
| 88605-32020 |
CV10,SV1# |
1 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90414-04002 |
SV10..SE,VE,VX,ZX W/*AAC,4-WAY |
1 | ||
| 90413-04001 |
SV10 3-WAY |
1 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
2 | ||
| 90413-04001 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC,HEATER IDLE UP,3-WAY |
3 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
3 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90414-04002 |
SV10..SE,VE,VX,ZX W/*AAC,4-WAY |
1 | ||
| 90413-04001 |
SV10 3-WAY |
1 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
2 | ||
| 90413-04001 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC,HEATER IDLE UP,3-WAY |
3 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
3 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90414-04002 |
SV10..SE,VE,VX,ZX W/*AAC,4-WAY |
1 | ||
| 90413-04001 |
SV10 3-WAY |
1 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
2 | ||
| 90413-04001 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC,HEATER IDLE UP,3-WAY |
3 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
3 | ||
| 88688P - BRACKET (FOR MAGNET VALVE) | ||||
| 88688-32010 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC |
1 | ||
| 88690A - VALVE ASSY, COMBINATION | ||||
| 88690-32010 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/*AAC |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10295 |
SV10..SE,VE,VX,ZX W/*AAC,*H,L=600,MARK=#2 |
1 | ||
| 95411-10295 |
SV10..SE,VE,VX,ZX W/*AAC,*HIU,*H,L=650,MARK=#2 |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10430 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/*AAC,*H,L=140,MARK=#4 |
1 | ||
| 88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10195 |
SV10..SE,VE,VX,ZX W/*AAC,MARK=#1 |
1 | ||
| 95411-10195 |
SV10..SE,VE,VX,ZX W/*AAC,*HIU,*H,L=650,MARK=#1 |
1 | ||
| 88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 95411-10230 |
SV10..SE,VE,VX,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 95411-10230 |
SV10..SE,VE,VX,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC & *HIU |
1 | ||
| 88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19960 |
SV10..SE,VE,VX,ZX *H,L=330,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10260 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX *H,L=570,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 88690J - HOSE, VACUUM, NO.7 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10330 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX *H,L=140,ﾏｰｸ=#3,W/*AAC |
1 | ||
| 88690P - HOSE, VACUUM, NO.8 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19930 |
SV10..SE,VE,VX,ZX *H,L=40,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88690R - HOSE, VACUUM, NO.9 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19930 |
SV10..SE,VE,VX,ZX *H,L=70,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88690S - HOSE, VACUUM, NO.10 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19960 |
SV10..SE,VE,VX,ZX *H,L=390,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88690T - HOSE, VACUUM, NO.11 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
SV10..SE,VE,VX,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 95411-10060 |
SV10..SE,VE,VX,ZX *H,L=420,ﾏｰｸ=#0,W/*AAC |
1 | ||
| 95411-10060 |
SV10..5F..(SE,VE,VX,ZX) *H,L=420,ﾏｰｸ=#0,W/*AAC & *HIU |
1 | ||
| 88690V - HOSE, VACUUM, NO.13 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19930 |
SV10..SE,VE,VX,ZX *H,L=40,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-32020 |
SV10..SE,VE,VX,ZX W/*AAC |
1 | ||
| 88690-32090 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC & *HIU |
1 | ||
| 88690-32030 |
SV10 |
1 | ||
| 88690-32040 |
SV10..5F W/*HIU |
1 | ||
| Common parts | ||||
| 88569-32030 | ||||
| 88688-32040 | ||||
| 88718-22420 | ||||
| 90099-05158 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 90464-00248 | ||||
| 93385-15012 | ||||
| 93385-16012 | ||||
(8203-8406)SV10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-32010 |
SV10 |
1 | ||
| 88603 - WIRE, IDLE UP DEVICE | ||||
| 88605-32040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC |
1 | ||
| 88605-32020 |
CV10,SV1# |
1 | ||
| 88605D - WIRE, AIR CONDITIONER | ||||
| 88648-32010 |
SV10..5F W/HEATER IDLE UP |
1 | ||
| 88605D - WIRE, AIR CONDITIONER | ||||
| 88648-32010 |
SV10..5F W/HEATER IDLE UP |
1 | ||
| 88645 - DEVICE SUB-ASSY, IDLE UP | ||||
| 87400-32010 |
SV10..5F HEATER IDLE UP |
1 | ||
| 87400-32020 |
SV10..5F HEATER IDLE UP,W/COOLER |
1 | ||
| 88645 - DEVICE SUB-ASSY, IDLE UP | ||||
| 87400-32010 |
SV10..5F HEATER IDLE UP |
1 | ||
| 87400-32020 |
SV10..5F HEATER IDLE UP,W/COOLER |
1 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90414-04002 |
SV10..SE,VE,VX,ZX W/*AAC,4-WAY |
1 | ||
| 90413-04001 |
SV10 3-WAY |
1 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
2 | ||
| 90413-04001 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC,HEATER IDLE UP,3-WAY |
3 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
3 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-32020 |
SV10..SE,VE,VX,ZX W/*AAC |
1 | ||
| 88690-32090 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC & *HIU |
1 | ||
| 88690-32030 |
SV10 |
1 | ||
| 88690-32040 |
SV10..5F W/*HIU |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-32020 |
SV10..SE,VE,VX,ZX W/*AAC |
1 | ||
| 88690-32090 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC & *HIU |
1 | ||
| 88690-32030 |
SV10 |
1 | ||
| 88690-32040 |
SV10..5F W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SV10 *H,L=450,ﾏｰｸ=#0 |
1 | ||
| 95411-19995 |
SV10 *H,L=900,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV10..5F *H,L=510,ﾏｰｸ=#*,W/*HIU |
1 | ||
| 95411-10060 |
SV10..5F *H,L=420,ﾏｰｸ=#0,W/*HIU |
1 | ||
| 88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2 | ||||
| 95411-19930 |
SV10 *H,L=40,ﾏｰｸ=#* |
1 | ||
| Common parts | ||||
| 88895-95715 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 90464-00248 | ||||
| 93381-16012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8714 | ||||
(8203-8406)SV10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87292 - TANK, VACUUM | ||||
| 88683-32010 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/*AAC |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-32010 |
SV10 |
1 | ||
| 88603 - WIRE, IDLE UP DEVICE | ||||
| 88605-32040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC |
1 | ||
| 88605-32020 |
CV10,SV1# |
1 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90414-04002 |
SV10..SE,VE,VX,ZX W/*AAC,4-WAY |
1 | ||
| 90413-04001 |
SV10 3-WAY |
1 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
2 | ||
| 90413-04001 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC,HEATER IDLE UP,3-WAY |
3 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
3 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90414-04002 |
SV10..SE,VE,VX,ZX W/*AAC,4-WAY |
1 | ||
| 90413-04001 |
SV10 3-WAY |
1 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
2 | ||
| 90413-04001 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC,HEATER IDLE UP,3-WAY |
3 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
3 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90414-04002 |
SV10..SE,VE,VX,ZX W/*AAC,4-WAY |
1 | ||
| 90413-04001 |
SV10 3-WAY |
1 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
2 | ||
| 90413-04001 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC,HEATER IDLE UP,3-WAY |
3 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
3 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90414-04002 |
SV10..SE,VE,VX,ZX W/*AAC,4-WAY |
1 | ||
| 90413-04001 |
SV10 3-WAY |
1 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
2 | ||
| 90413-04001 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC,HEATER IDLE UP,3-WAY |
3 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
3 | ||
| 88688P - BRACKET (FOR MAGNET VALVE) | ||||
| 88688-32010 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC |
1 | ||
| 88690A - VALVE ASSY, COMBINATION | ||||
| 88690-32010 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/*AAC |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10295 |
SV10..SE,VE,VX,ZX W/*AAC,*H,L=600,MARK=#2 |
1 | ||
| 95411-10295 |
SV10..SE,VE,VX,ZX W/*AAC,*HIU,*H,L=650,MARK=#2 |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10430 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/*AAC,*H,L=140,MARK=#4 |
1 | ||
| 88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10195 |
SV10..SE,VE,VX,ZX W/*AAC,MARK=#1 |
1 | ||
| 95411-10195 |
SV10..SE,VE,VX,ZX W/*AAC,*HIU,*H,L=650,MARK=#1 |
1 | ||
| 88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 95411-10230 |
SV10..SE,VE,VX,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 95411-10230 |
SV10..SE,VE,VX,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC & *HIU |
1 | ||
| 88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19960 |
SV10..SE,VE,VX,ZX *H,L=330,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10260 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX *H,L=570,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 88690J - HOSE, VACUUM, NO.7 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10330 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX *H,L=140,ﾏｰｸ=#3,W/*AAC |
1 | ||
| 88690P - HOSE, VACUUM, NO.8 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19930 |
SV10..SE,VE,VX,ZX *H,L=40,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88690R - HOSE, VACUUM, NO.9 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19930 |
SV10..SE,VE,VX,ZX *H,L=70,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88690S - HOSE, VACUUM, NO.10 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19960 |
SV10..SE,VE,VX,ZX *H,L=390,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88690T - HOSE, VACUUM, NO.11 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
SV10..SE,VE,VX,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 95411-10060 |
SV10..SE,VE,VX,ZX *H,L=420,ﾏｰｸ=#0,W/*AAC |
1 | ||
| 95411-10060 |
SV10..5F..(SE,VE,VX,ZX) *H,L=420,ﾏｰｸ=#0,W/*AAC & *HIU |
1 | ||
| 88690V - HOSE, VACUUM, NO.13 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19930 |
SV10..SE,VE,VX,ZX *H,L=40,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-32020 |
SV10..SE,VE,VX,ZX W/*AAC |
1 | ||
| 88690-32090 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC & *HIU |
1 | ||
| 88690-32030 |
SV10 |
1 | ||
| 88690-32040 |
SV10..5F W/*HIU |
1 | ||
| Common parts | ||||
| 88569-32030 | ||||
| 88688-32040 | ||||
| 88718-22420 | ||||
| 90099-05158 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 90464-00248 | ||||
| 93385-15012 | ||||
| 93385-16012 | ||||
(8203-8406)SV11 ; (8406- )SV1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87292 - TANK, VACUUM | ||||
| 88683-32010 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/*AAC |
1 | ||
| 88603 - WIRE, IDLE UP DEVICE | ||||
| 88605-32040 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC |
1 | ||
| 88605-32020 |
CV10,SV1# |
1 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90414-04002 |
SV10..SE,VE,VX,ZX W/*AAC,4-WAY |
1 | ||
| 90413-04001 |
SV10 3-WAY |
1 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
2 | ||
| 90413-04001 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC,HEATER IDLE UP,3-WAY |
3 | ||
| 90413-04001 |
SV10..SE,VE,VX,ZX W/*AAC,3-WAY |
3 | ||
| 88688P - BRACKET (FOR MAGNET VALVE) | ||||
| 88688-32010 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/*AAC |
1 | ||
| 88690A - VALVE ASSY, COMBINATION | ||||
| 88690-32010 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/*AAC |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10295 |
SV10..SE,VE,VX,ZX W/*AAC,*H,L=600,MARK=#2 |
1 | ||
| 95411-10295 |
SV10..SE,VE,VX,ZX W/*AAC,*HIU,*H,L=650,MARK=#2 |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10430 |
CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX W/*AAC,*H,L=140,MARK=#4 |
1 | ||
| 88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10195 |
SV10..SE,VE,VX,ZX W/*AAC,MARK=#1 |
1 | ||
| 95411-10195 |
SV10..SE,VE,VX,ZX W/*AAC,*HIU,*H,L=650,MARK=#1 |
1 | ||
| 88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 95411-10230 |
SV10..SE,VE,VX,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 95411-10230 |
SV10..SE,VE,VX,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC & *HIU |
1 | ||
| 88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19960 |
SV10..SE,VE,VX,ZX *H,L=330,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10260 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX *H,L=570,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 88690J - HOSE, VACUUM, NO.7 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10330 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX *H,L=140,ﾏｰｸ=#3,W/*AAC |
1 | ||
| 88690T - HOSE, VACUUM, NO.11 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10230 |
SV10..SE,VE,VX,ZX *H,L=50,ﾏｰｸ=#2,W/*AAC |
1 | ||
| 95411-10060 |
SV10..SE,VE,VX,ZX *H,L=420,ﾏｰｸ=#0,W/*AAC |
1 | ||
| 95411-10060 |
SV10..5F..(SE,VE,VX,ZX) *H,L=420,ﾏｰｸ=#0,W/*AAC & *HIU |
1 | ||
| 88690V - HOSE, VACUUM, NO.13 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-19930 |
SV10..SE,VE,VX,ZX *H,L=40,ﾏｰｸ=#*,W/*AAC |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-32020 |
SV10..SE,VE,VX,ZX W/*AAC |
1 | ||
| 88690-32090 |
SV10..5F..(SE,VE,VX,ZX) W/*AAC & *HIU |
1 | ||
| 88690-32030 |
SV10 |
1 | ||
| 88690-32040 |
SV10..5F W/*HIU |
1 | ||
| Common parts | ||||
| 88569-32030 | ||||
| 88569-32060 | ||||
| 88688-32040 | ||||
| 90044-64009 | ||||
| 90099-05158 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00248 | ||||
| 90464-00320 | ||||
| 93385-15012 | ||||
| 93385-16012 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
