SV10-JEMES (1982)

Toyota Camry/Vista

Production Mar 1982 - Jun 1984
Engine 1SLU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203- )4D

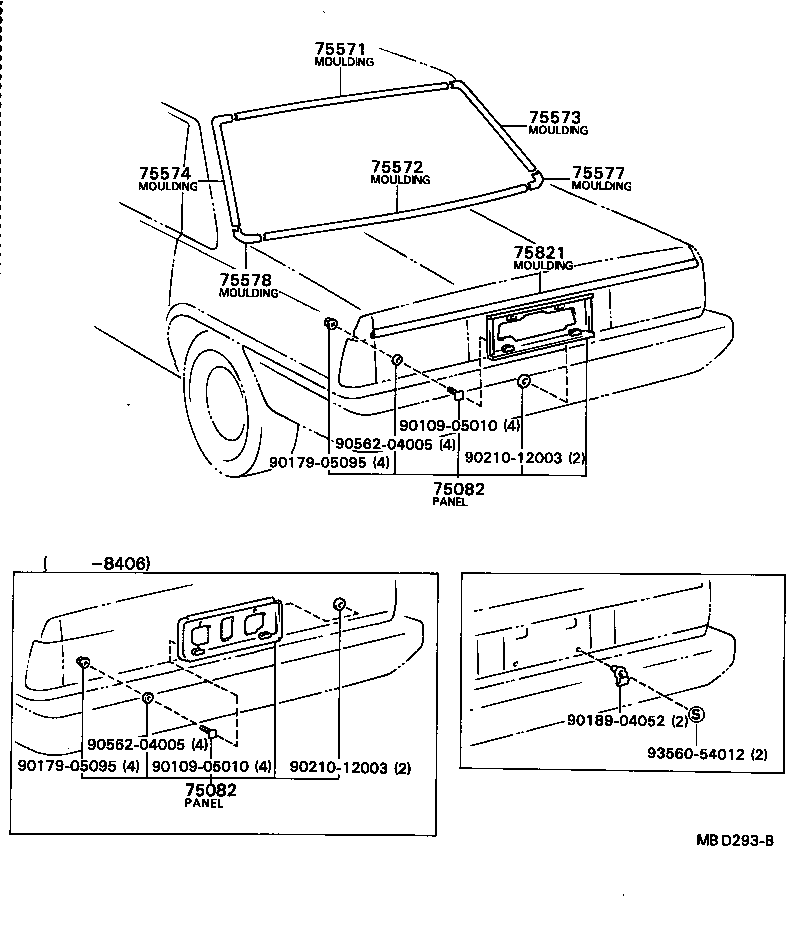

Click highlighted areas on diagram

diagram 75082 75082 75571 75572 75573 75574 75577 75578 75821 9010905010 9010905010 9017905095 9017905095 9018904052 9021012003 9021012003 9056204005 9056204005 9356054012
Part # Description Qty Price
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-39085

CV10,SV1#..SE,XE,ZX

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-39085

CV10,SV1#..SE,XE,ZX

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-32010

CV1#,SV1#..4D

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-32010

CV10,SV1#..4D

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-32010

CV1#,SV1#..4D

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-32010

CV1#,SV1#..4D

 1
75577 - MOULDING, BACK WINDOW CORNER, LOWER RH
75583-32010

CV1#,SV1#..4D

 1
75578 - MOULDING, BACK WINDOW CORNER, LOWER LH
75584-32010

CV1#,SV1#..4D

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75813-32010

CV10,SV1#..4D

 1
Common parts
90109-05010
90179-05095
90189-04052
90210-12003
90562-04005
93560-54012
