SV10-JEMEL (1984)
Toyota Camry/Vista
ILLUST NO. 2 OF 2(8203-8508)SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44147 - SEAT, SPOOL VALVE SPRING | ||||
| 44147-24020 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-32010 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
4 | ||
| 90562-33002 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
4 | ||
| 90562-33002 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
4 | ||
| 90562-33002 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
4 | ||
| 90562-33002 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-32010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX INNER |
1 | ||
| 90562-37001 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX INNER |
1 | ||
| 90562-37001 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX OUTER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-24010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-49004 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-25008 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX NOK |
1 | ||
| 90311-25014 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX KOYO |
1 | ||
| 44207 - CAP SUB-ASSY, VALVE | ||||
| 44207-24010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44207A - RING, O(FOR VALVE CAP SUB-ASSY) | ||||
| 90301-37001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX OD=42.6,T=2.4 |
1 | ||
| 90301-41001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX OD=45,T=1.9 |
1 | ||
| 44207A - RING, O(FOR VALVE CAP SUB-ASSY) | ||||
| 90301-37001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX OD=42.6,T=2.4 |
1 | ||
| 90301-41001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX OD=45,T=1.9 |
1 | ||
| 44207B - RING, SNAP(FOR VALVE CAP SUB-ASSY) | ||||
| 96151-04500 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44207C - SEAL, OIL(FOR VALVE CAP SUB-ASSY) | ||||
| 90311-19006 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44207D - BEARING(FOR VALVE CAP SUB-ASSY) | ||||
| 90363-19002 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44207E - RING, SNAP(FOR VALVE CAP SUB-ASSY) | ||||
| 96151-03500 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44207F - SPRING, CONICAL(FOR VALVE CAP SUB-ASSY) | ||||
| 90502-15001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44209 - HOUSING SUB-ASSY, POWER STEERING CYLINDER | ||||
| 44209-14010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44209A - SEAL(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90311-25006 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX NOK |
1 | ||
| 90311-25013 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX KOYO |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-26004 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44211-32010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-24010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 45222-32010 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-13002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44252C - CAP(FOR POWER STEERING PINION) | ||||
| 45524-16010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44252D - NUT(FOR POWER STEERING PINION CAP) | ||||
| 90179-36002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44253-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-28001 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44253B - RING, O(FOR POWER STEERING RACK HOUSING) | ||||
| 90301-38001 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-24010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-24010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44267A - WASHER(FOR RACK END GUIDE) | ||||
| 90206-43001 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-32010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44418-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44419-32010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-39015 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-39015 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-24010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-14011 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-14011 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-60825 | ||||

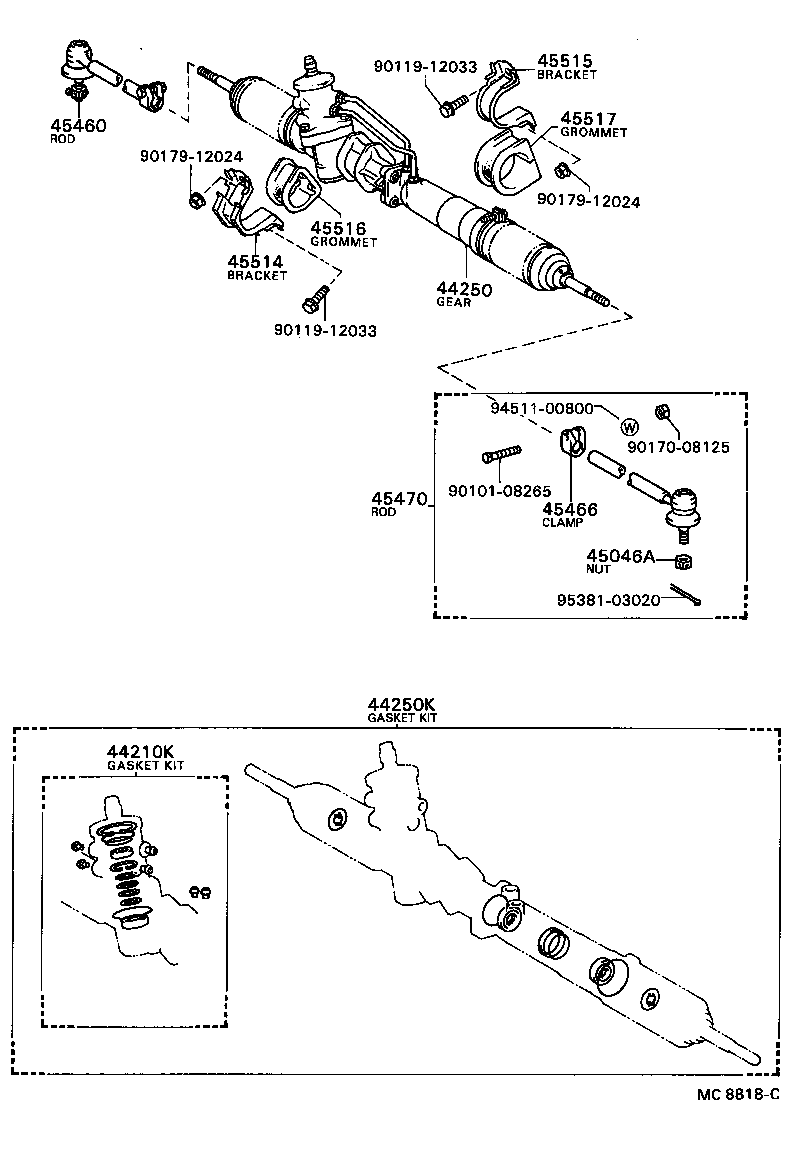

ILLUST NO. 1 OF 2(8203-8508)SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44210K - GASKET KIT, POWER STEERING CONTROL VALVE OVERHAUL | ||||
| 04455-24010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 04455-32010 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44250-32010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44250K - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CV1#,SV1# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39165 |
CV1#,SV1# |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
CV1#,SV1# |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39165 |
CV1#,SV1# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45505-32020 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 45505-32010 |
CV10,SV1# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-32010 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| 45515-32050 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-32010 |
CV1#,SV1# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-32040 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 45517-32010 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-12033 | ||||
| 90170-08125 | ||||
| 90179-12024 | ||||
| 94511-00800 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 2(8203-8508)CV10,SV11,12 ; (8508- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44210K - GASKET KIT, POWER STEERING CONTROL VALVE OVERHAUL | ||||
| 04455-24010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 04455-32010 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44250-32010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44250K - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CV1#,SV1# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39165 |
CV1#,SV1# |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
CV1#,SV1# |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39165 |
CV1#,SV1# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45505-32020 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 45505-32010 |
CV10,SV1# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-32010 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| 45515-32050 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-32010 |
CV1#,SV1# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-32040 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 45517-32010 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-12033 | ||||
| 90170-08125 | ||||
| 90179-12024 | ||||
| 94511-00800 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(8203-8508)CV10,SV11,12 ; (8508- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-32010 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
4 | ||
| 90562-33002 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
4 | ||
| 90562-33002 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
4 | ||
| 90562-33002 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
4 | ||
| 90562-33002 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-32010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX INNER |
1 | ||
| 90562-37001 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX INNER |
1 | ||
| 90562-37001 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX OUTER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-24010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-49004 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-25008 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX NOK |
1 | ||
| 90311-25014 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX KOYO |
1 | ||
| 44209 - HOUSING SUB-ASSY, POWER STEERING CYLINDER | ||||
| 44209-14010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44209A - SEAL(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90311-25006 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX NOK |
1 | ||
| 90311-25013 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX KOYO |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-26004 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19002 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44211-32010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-24010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 45222-32010 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-13002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44252C - CAP(FOR POWER STEERING PINION) | ||||
| 45524-16010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44252D - NUT(FOR POWER STEERING PINION CAP) | ||||
| 90179-36002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44253-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-28001 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44253B - RING, O(FOR POWER STEERING RACK HOUSING) | ||||
| 90301-38001 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-24010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-24010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44267A - WASHER(FOR RACK END GUIDE) | ||||
| 90206-43001 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-32010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44418-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-32020 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44419-32010 |
SV10..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-39015 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-39015 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-24010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-14011 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-14011 |
CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-60825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
