SV10-JEMDS (1982)

Toyota Camry/Vista

Production Mar 1982 - Jun 1984
Engine 1SLU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8203- )SV10,11

Click highlighted areas on diagram

diagram 8846714040 88645H 8868832050 8868832110 88711 88712 8871410010 8871422030 88716E 88717A 8871832010 8871832021 8871832030 8871832040 8871832041 9009914044 9009914045 9009914045 9009914046 9017906115 9165160835 9165160835 9165640612 9165640612 9165640612 9331516012 9338516012 9338516016 9338516016 9338516016
Part # Description Qty Price
88645H - SWITCH, PRESSURE NO.1
88645-32010

CV10,SV1#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-32010

SV10,11

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-32010

SV10

 1
88712-32020

SV10

W/HEATER IDLE UP

 1
88712-32020

SV1#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-32030

SV10

 1
88716-32100

SV1#

 1
88716-32100

SV10

W/HEATER IDLE UP

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-32030

SV10

W/HEATER IDLE UP

 1
88717-32010

SV10

 1
88717-32030

SV1#

 1
Common parts
88467-14040
88688-32050
88688-32110
88714-10010
88714-22030
88718-32010
88718-32021
88718-32030
88718-32040
88718-32041
90099-14044
90099-14045
90099-14046
90179-06115
91651-60835
91656-40612
93315-16012
93385-16012
93385-16016

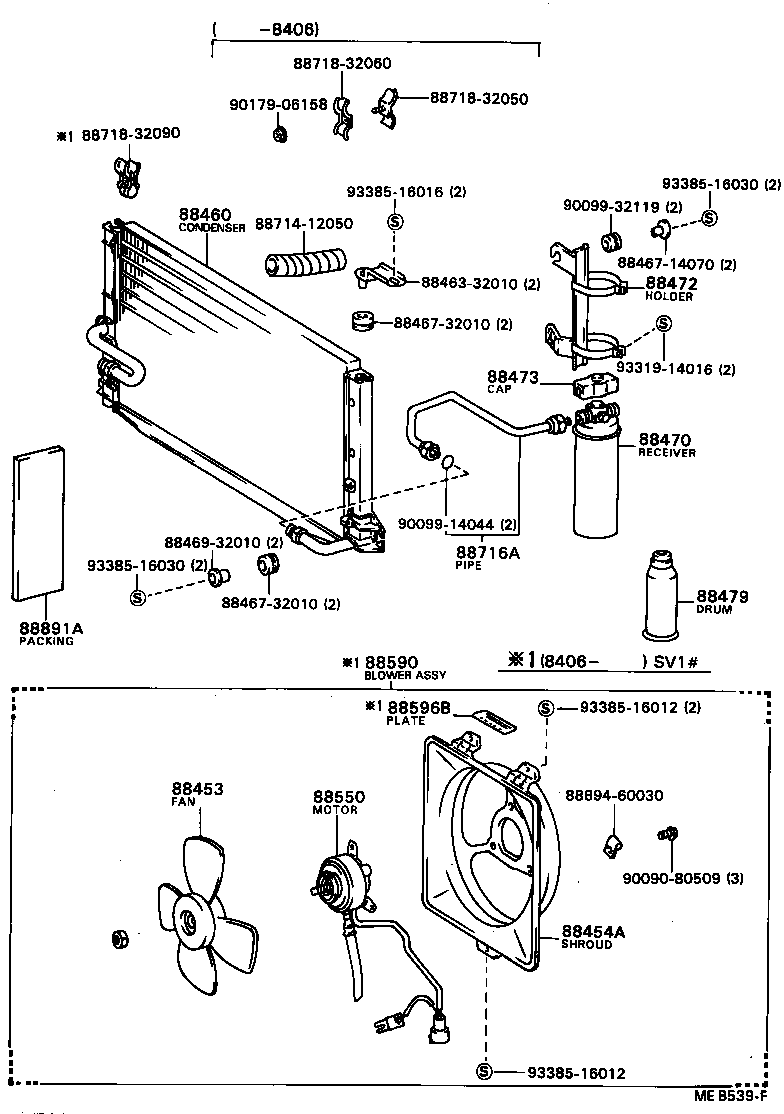

ILLUST NO. 1 OF 2(8203- )

Click highlighted areas on diagram

diagram 88453 88454A 88460 8846332010 8846714070 8846732010 8846732010 8846932010 88470 88472 88473 88479 88550 88590 88596B 8871412050 88716A 8871832050 8871832060 8871832090 88891A 8889460030 9009080509 9009914044 9009932119 9017906158 9331914016 9338516012 9338516012 9338516016 9338516030 9338516030
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-32010

SV1#

 1
88454A - SHROUD, FAN
88454-32010

SV10

 1
88454-32020

SV10..5F

W/HEATER IDLE UP

 1
88454-32020

SV1#

 1
88460 - CONDENSER ASSY, COOLER
88460-32010

CV10,SV1#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12061

CV10,SV1#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-32010

CV1#,SV1#

 1
88473 - CAP, COOLER RECEIVER TANK
88894-12111

SV1#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CV1#,SV1#

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-32010

SV1#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-32020

SV10

 1
88891A - PACKING A (FOR COOLER)
88578-32020

SV10

W/HEATER IDLE UP

 1
Common parts
88463-32010
88467-14070
88467-32010
88469-32010
88714-12050
88718-32050
88718-32060
88718-32090
88894-60030
90090-80509
90099-14044
90099-32119
90179-06158
93319-14016
93385-16012
93385-16016
93385-16030
