SV10-JEMDS (1982)

Toyota Camry/Vista

Production Mar 1982 - Jun 1984
Engine 1SLU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)1SLU

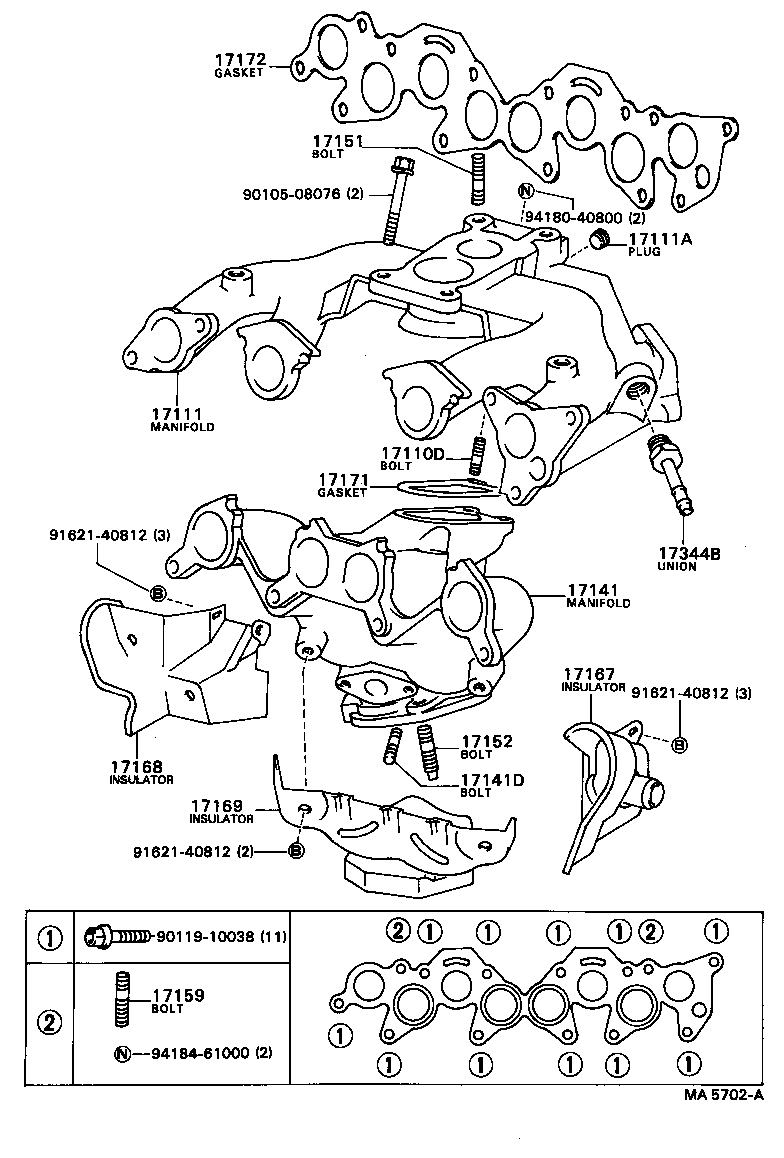

Click highlighted areas on diagram

diagram 17110D 17111 17111A 17141 17141D 17151 17152 17159 17167 17168 17169 17171 17172 17344B 9010508076 9011910038 9162140812 9162140812 9162140812 9418040800 9418461000
Part # Description Qty Price
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
92112-40825

1SLU..SV10

 2
17111 - MANIFOLD, INTAKE
17111-63020

1SLU..SV10

 1
17111A - PLUG, NO.1
90344-53011

1SLU..SV10

 2
17141 - MANIFOLD, EXHAUST
17141-63020

1SLU..SV10..5F

 1
17141-63040

1SLU..SV10

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

1SLU,2SELU..SV1#

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40832

1S#..SV10

L=44,S=12 & 12

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1S#,2SELU,3SGELU..SV1#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

1SLU,2SELU..SV1#

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17902-63020

1SLU..SV10

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17932-63020

1SLU..SV10..5F

 1
17932-63030

1SLU..SV10

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17904-63010

1SLU..SV10..5F

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-63020

1SLU..SV10

 1
17171-63021

1SLU..SV10

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-63010

1SLU,2SELU..SV10,11

 1
17344B - UNION(FOR AIR HOSE)
90404-53046

1SLU..SV10

 1
Common parts
90105-08076
90119-10038
91621-40812
94180-40800
94184-61000
