SV10-JEMDS (1982)

Toyota Camry/Vista

Production Mar 1982 - Jun 1984
Engine 1SLU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203- )

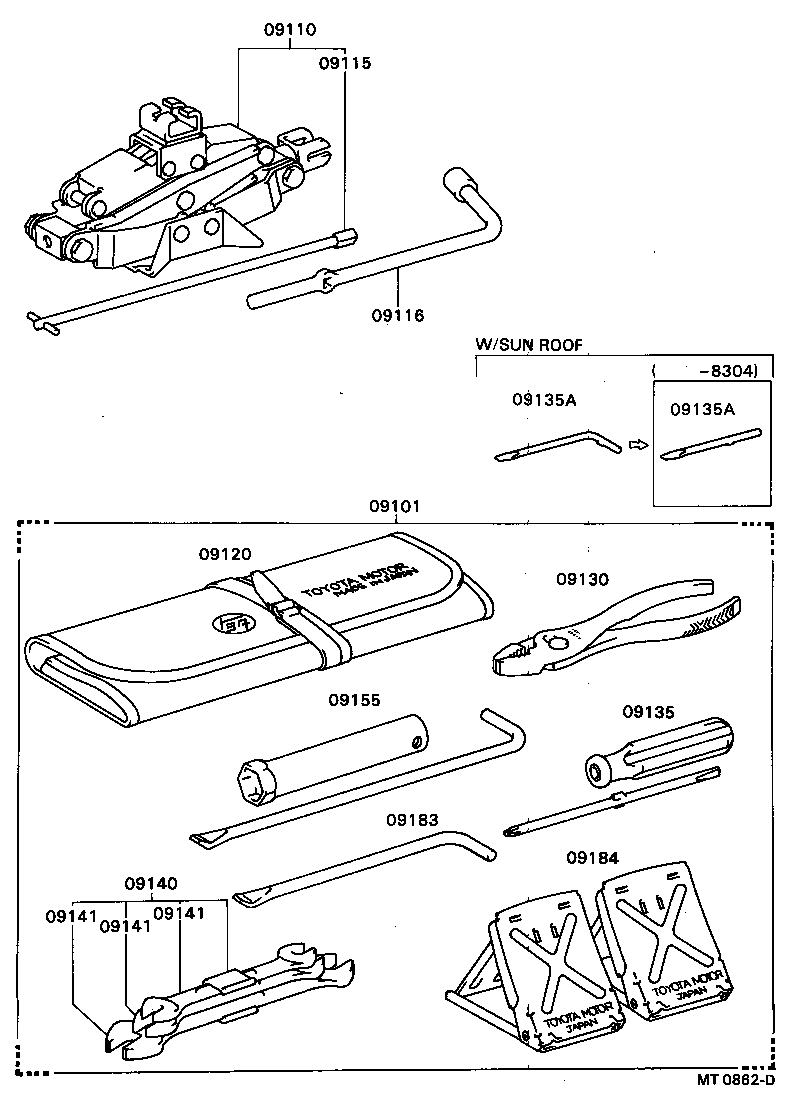

Click highlighted areas on diagram

diagram 09101 09110 09115 09116 09120 09130 09135 09135A 09135A 09140 09141 09141 09141 09155 09183 09184
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-12060

SV10

 1
09110 - JACK ASSY
09118-20010

SV1#

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-16020

CV10,SV1#

 1
09116 - LEVER, JACK HANDLE
09116-16010

CV1#,SV1#

 1
09120 - BAG, TOOL
09120-12011

CV1#,SV1#

 1
09130 - PLIERS
09130-00010

SV10

 1
09135 - DRIVER, SCREW
99915-10700

CV1#,SV1#

 1
09140 - SPANNER SET
09140-12011

CV1#,SV1#

 1
09141 - SPANNER
99914-11417

CV1#,SV1#

14 X 17,14X17

 1
99914-10810

CV1#,SV1#

8 X 10,8X10

 1
99914-11012

CV1#,SV1#

10 X 12,10X12

 1
09141 - SPANNER
99914-11417

CV1#,SV1#

14 X 17,14X17

 1
99914-10810

CV1#,SV1#

8 X 10,8X10

 1
99914-11012

CV1#,SV1#

10 X 12,10X12

 1
09141 - SPANNER
99914-11417

CV1#,SV1#

14 X 17,14X17

 1
99914-10810

CV1#,SV1#

8 X 10,8X10

 1
99914-11012

CV1#,SV1#

10 X 12,10X12

 1
09155 - WRENCH, SPARK PLUG
09155-41020

SV10,11

 1
09184 - STOPPER, WHEEL
09184-00010

CV1#,SV1#

 2
