CV43-BTPGX (1995)

Toyota Camry/Vista

Production Jan 1995 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )CV43

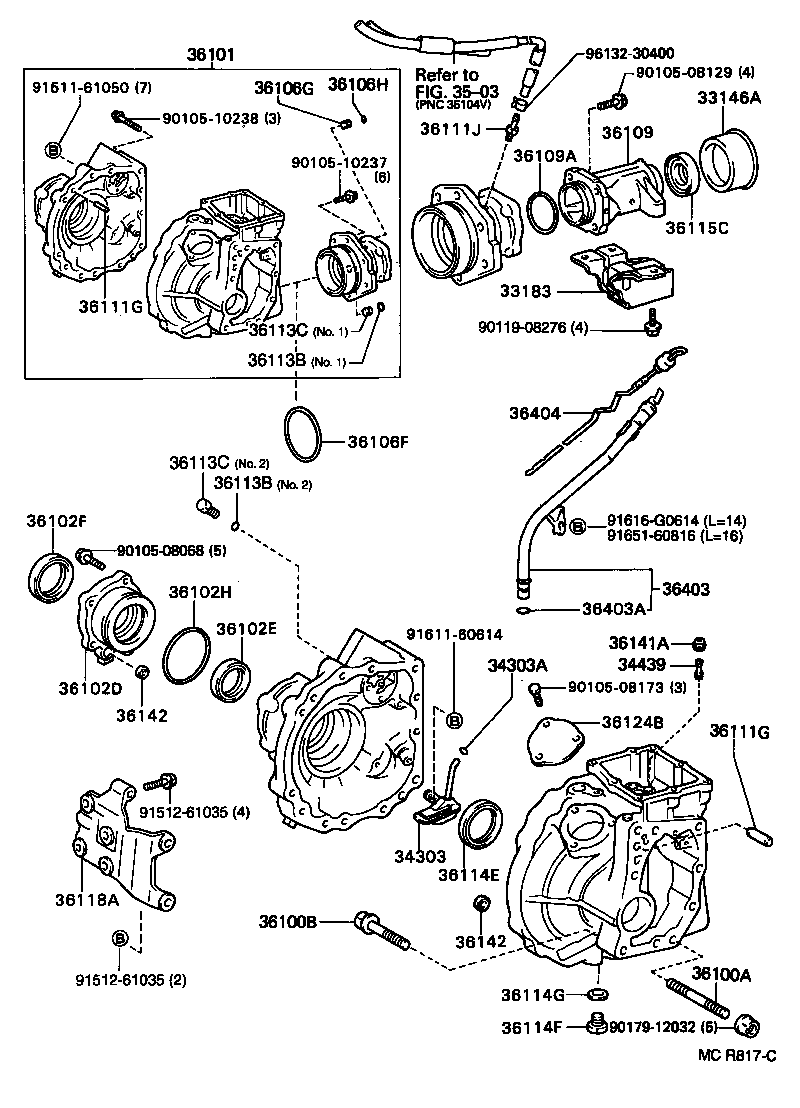

Click highlighted areas on diagram

diagram 33146A 33183 34303 34303A 34439 3503 36100A 36100B 36101 36102D 36102E 36102F 36102H 36106F 36106G 36106H 36109 36109A 36111G 36111G 36111J 36113B 36113B 36113C 36113C 36114E 36114F 36114G 36115C 36118A 36124B 36141A 36142 36142 36403 36403A 36404 9010508068 9010508129 9010508173 9010510237 9010510238 9011908276 9017912032 9151161050 9151261035 9151261035 9161160614 91616G0614 9165160816 9613230400
Part # Description Qty Price
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-30020

CV43,SV43

 1
33183 - DAMPER, TRANSFER DYNAMIC
33183-32050

CV43,SV43..ATM

 1
34303 - STRAINER SUB-ASSY, TRANSFER OIL
34303-32010

CV43,SV43..ATM

 1
34303A - RING, O (FOR TRANSFER OIL STRAINER)
90301-06008

CV43,SV43..ATM

 1
34439 - STRAINER, TRANSFER VALVE BODY
34439-32010

CV43,SV43..ATM

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028

CV43,SV43

ﾈｼﾞ部長さ=22 & 22,長さ=69

 2
90116-12027

CV43,SV43..ATM

ﾈｼﾞ部長さ=22 & 22,長さ=56

 1
90116-12029

CV43,SV43..ATM

ﾈｼﾞ部長さ=22 & 22,長さ=74

 2
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12161

CV43,SV43..ATM

*12−1.25PX204−30

 1
90105-12137

CV43,SV43..ATM

*12−1.25PX52−30

 1
90105-12162

CV43,SV43..ATM

*12−1.25PX62−30

 1
36101 - CASE SUB-ASSY, TRANSFER
36101-32030

CV43

 1
36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING
36102-32010

CV43,SV43..ATM

 1
36102E - SEAL, OIL, NO.1 (FOR TRANSFER RH BEARING RETAINER)
90316-52001

CV43,SV43..ATM

 1
36102F - SEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)
90310-50002

CV43,SV43..ATM

 1
36102H - RING, O (FOR TRANSFER RH BEARING RETAINER)
90301-85003

CV43,SV43..ATM

 1
36106F - RING, O (FOR TRANSFER PINION BEARING CAGE)
90301-94001

CV43,SV43..ATM

 1
36106G - PLUG, STRAIGHT (FOR TRANSFER PINION BEARING CAGE)
90334-09004

CV43,SV43..ATM

 1
36106H - PLUG, O (FOR TRANSFER PINION BEARING CAGE PLUG)
90301-05002

CV43,SV43..ATM

 1
36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION
36109-32010

CV43,SV43..ATM

 1
36109A - RING, O (FOR TRANSFER EXTENSION HOUSING)
90301-63005

CV43,SV43

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90254-10003

CV43,SV43..ATM

長さ=21.0

 2
90250-12005

CV43,SV43

長さ=24,外径=12

 2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90254-10003

CV43,SV43..ATM

長さ=21.0

 2
90250-12005

CV43,SV43

長さ=24,外径=12

 2
36111J - UNION, BREATHER, NO.1 (FOR TRANSFER)
90404-51059

CV43,SV43..ATM

 1
36113B - RING, O (FOR TRANSFER CASE PLUG)
90301-06196

CV43

NO.2

 1
90301-07019

CV43

NO.1

 1
36113B - RING, O (FOR TRANSFER CASE PLUG)
90301-06196

CV43

NO.2

 1
90301-07019

CV43

NO.1

 1
36113C - PLUG (FOR TRANSFER CASE)
90334-11003

CV43

NO.1

 1
90341-08001

CV43

NO.2

 1
36113C - PLUG (FOR TRANSFER CASE)
90334-11003

CV43

NO.1

 1
90341-08001

CV43

NO.2

 1
36114E - SEAL, OIL (FOR TRANSFER CASE LH)
90316-61001

CV43,SV43..ATM

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18021

CV43,SV43..ATM

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
90430-18008

CV43,SV43

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-38032

CV43,SV43

 1
36118A - PLATE, TRANSFER STIFFENER, RH
36118-32030

CV43

 1
36124B - COVER, TRANSFER INSPECTION HOLE
36124-32010

CV43,SV43..ATM

 1
36141A - GASKET, TRANSFER CASE
36141-32010

CV43,SV43..ATM

 2
36142 - GASKET, TRANSFER COVER
36142-12010

CV43,SV43..ATM

 2
36142 - GASKET, TRANSFER COVER
36142-12010

CV43,SV43..ATM

 2
36403 - TUBE SUB-ASSY, TRANSFER OIL FILLER
36403-32050

CV43

 1
36403A - RING, O (FOR TRANSFER OIL FILLER TUBE)
90301-09173

CV43,SV43..ATM

 1
36404 - GAGE SUB-ASSY, TRANSFER OIL LEVEL
36404-32050

CV43

 1
Common parts
90105-08068
90105-08129
90105-08173
90105-10237
90105-10238
90119-08276
90179-12032
91511-61050
91512-61035
91611-60614
91616-G0614
91651-60816
96132-30400
Linked diagrams
3503
