CV43-AEPGX (1995)

Toyota Camry/Vista

Production Jan 1995 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )3CT..CV43

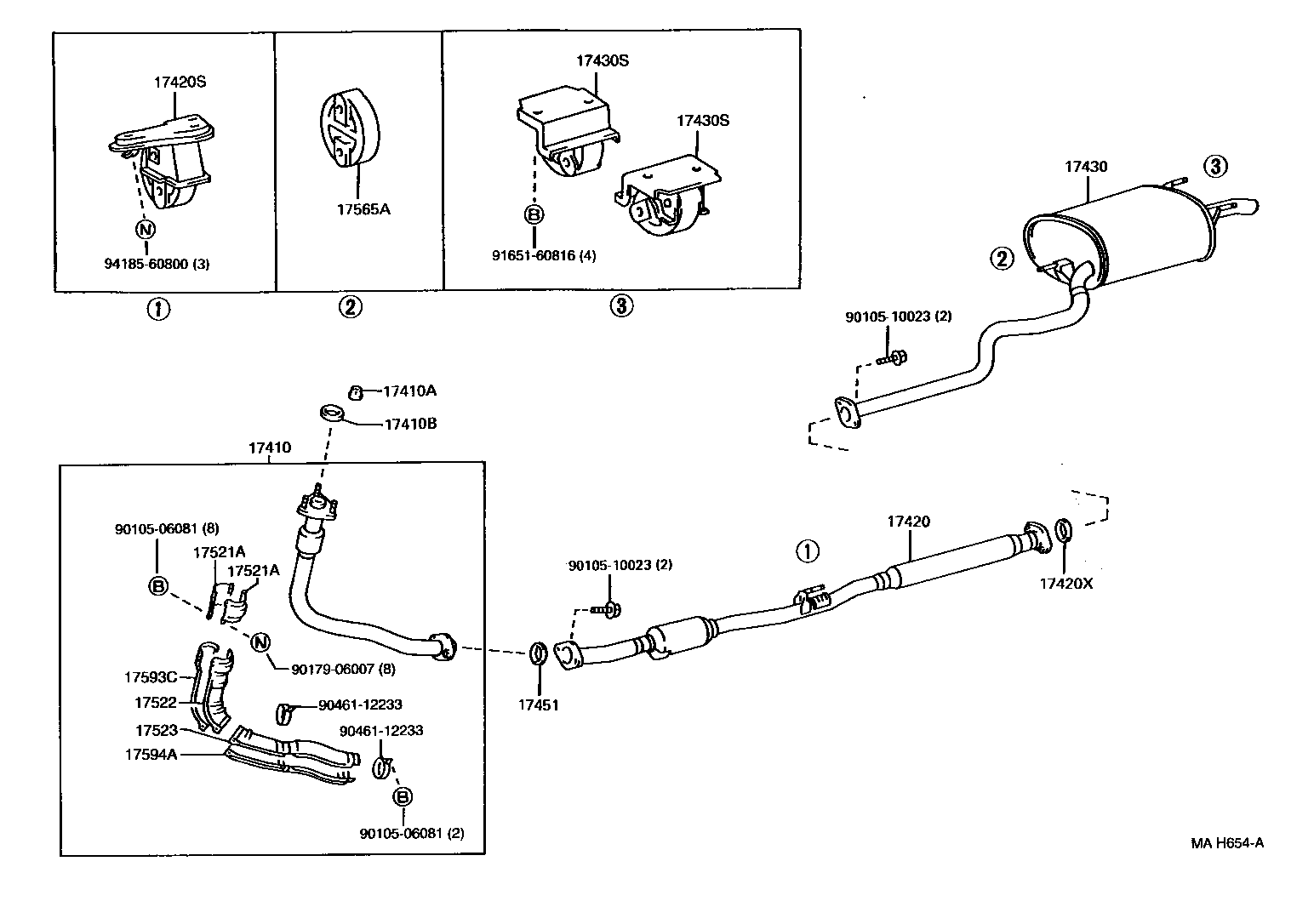

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420S 17420X 17430 17430S 17430S 17451 17521A 17521A 17522 17523 17565A 17593C 17594A 9010506081 9010506081 9010510023 9010510023 9017906007 9046112233 9046112233 9165160816 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64660

3CT..CV43

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3CT,3SFE,4SFE..CV4#,SV4#

 3
17410B - GASKET, EXHAUST PIPE
90917-06042

3CT,3SFE..CV4#,SV43

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64260

3CT..CV43

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-64070

3CT..CV43

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045

3CT,3SFE..CV4#,SV41,42,43

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-6A070

3CT..CV43

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-74100

3CT,3SFE,4SFE..CV4#,SV4#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-74100

3CT,3SFE,4SFE..CV4#,SV4#

 2
17451 - GASKET, EXHAUST PIPE
90917-06039

3CT,4SFE..CV43,SV40

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64130

3CT..CV43

 2
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64130

3CT..CV43

 2
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-64080

3CT..CV43

 1
17523 - PROTECTOR, EXHAUST PIPE, UPPER NO.3
17523-64040

3CT..CV43

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46010

3CT,3SFE,4SFE..CV4#,SV4#

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-64120

3CT..CV43

 1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17594-64030

3CT..CV43

 1
Common parts
90105-06081
90105-10023
90179-06007
90461-12233
91651-60816
94185-60800
