CV40-BTPGX (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3CT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )3CT

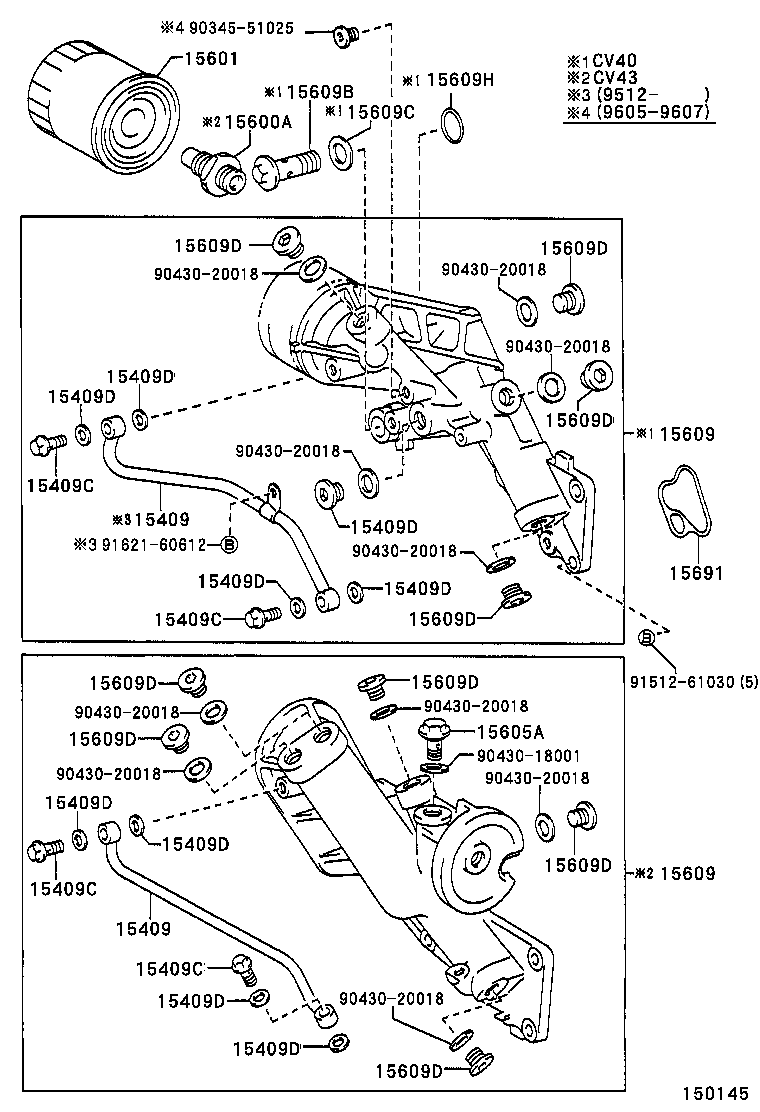

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15409 - PIPE OR HOSE, OIL FILTER OUTLET | ||||
| 15431-64061 |
3CT..CV40 |
1 | ||
| 15409 - PIPE OR HOSE, OIL FILTER OUTLET | ||||
| 15431-64061 |
3CT..CV40 |
1 | ||
| 15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE) | ||||
| 90401-10031 |
3CT..CV40 |
2 | ||
| 90401-10031 |
3CT..CV4# |
2 | ||
| 15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE) | ||||
| 90401-10031 |
3CT..CV40 |
2 | ||
| 90401-10031 |
3CT..CV4# |
2 | ||
| 15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE) | ||||
| 90401-10031 |
3CT..CV40 |
2 | ||
| 90401-10031 |
3CT..CV4# |
2 | ||
| 15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE) | ||||
| 90401-10031 |
3CT..CV40 |
2 | ||
| 90401-10031 |
3CT..CV4# |
2 | ||
| 15409D - GASKET(FOR OIL FILTER OUTLET PIPE) | ||||
| 90430-10015 |
3CT..CV40 |
4 | ||
| 15409D - GASKET(FOR OIL FILTER OUTLET PIPE) | ||||
| 90430-10015 |
3CT..CV40 |
4 | ||
| 15409D - GASKET(FOR OIL FILTER OUTLET PIPE) | ||||
| 90430-10015 |
3CT..CV40 |
4 | ||
| 15409D - GASKET(FOR OIL FILTER OUTLET PIPE) | ||||
| 90430-10015 |
3CT..CV40 |
4 | ||
| 15409D - GASKET(FOR OIL FILTER OUTLET PIPE) | ||||
| 90430-10015 |
3CT..CV40 |
4 | ||
| 15409D - GASKET(FOR OIL FILTER OUTLET PIPE) | ||||
| 90430-10015 |
3CT..CV40 |
4 | ||
| 15409D - GASKET(FOR OIL FILTER OUTLET PIPE) | ||||
| 90430-10015 |
3CT..CV40 |
4 | ||
| 15409D - GASKET(FOR OIL FILTER OUTLET PIPE) | ||||
| 90430-10015 |
3CT..CV40 |
4 | ||
| 15409D - GASKET(FOR OIL FILTER OUTLET PIPE) | ||||
| 90430-10015 |
3CT..CV40 |
4 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-30003 |
3CT..CV4# |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-64052 |
3CT..CV40 |
1 | ||
| 15609-64051 |
3CT..CV40 |
1 | ||
| 15609-64050 |
3CT..CV40 |
1 | ||
| 15609-64070 |
3CT..CV40 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-64052 |
3CT..CV40 |
1 | ||
| 15609-64051 |
3CT..CV40 |
1 | ||
| 15609-64050 |
3CT..CV40 |
1 | ||
| 15609-64070 |
3CT..CV40 |
1 | ||
| 15609B - UNION(FOR OIL FILTER BRACKET) | ||||
| 90401-18020 |
3CT..CV40 |
1 | ||
| 15609C - GASKET(FOR OIL FILTER BRACKET UNION) | ||||
| 90430-20014 |
3CT..CV40 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3CT..CV4# |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3CT..CV4# |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3CT..CV4# |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3CT..CV4# |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3CT..CV4# |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3CT..CV4# |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3CT..CV4# |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3CT..CV4# |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3CT..CV4# |
5 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 90301-22004 |
3CT..CV40 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-64040 |
3CT..CV4# |
1 | ||
| 15691-64041 |
3CT..CV4# |
1 | ||
| Common parts | ||||
| 90345-51025 | ||||
| 90430-18001 | ||||
| 90430-20018 | ||||
| 91512-61030 | ||||
| 91621-60612 | ||||
