CV40-BTPDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )HT

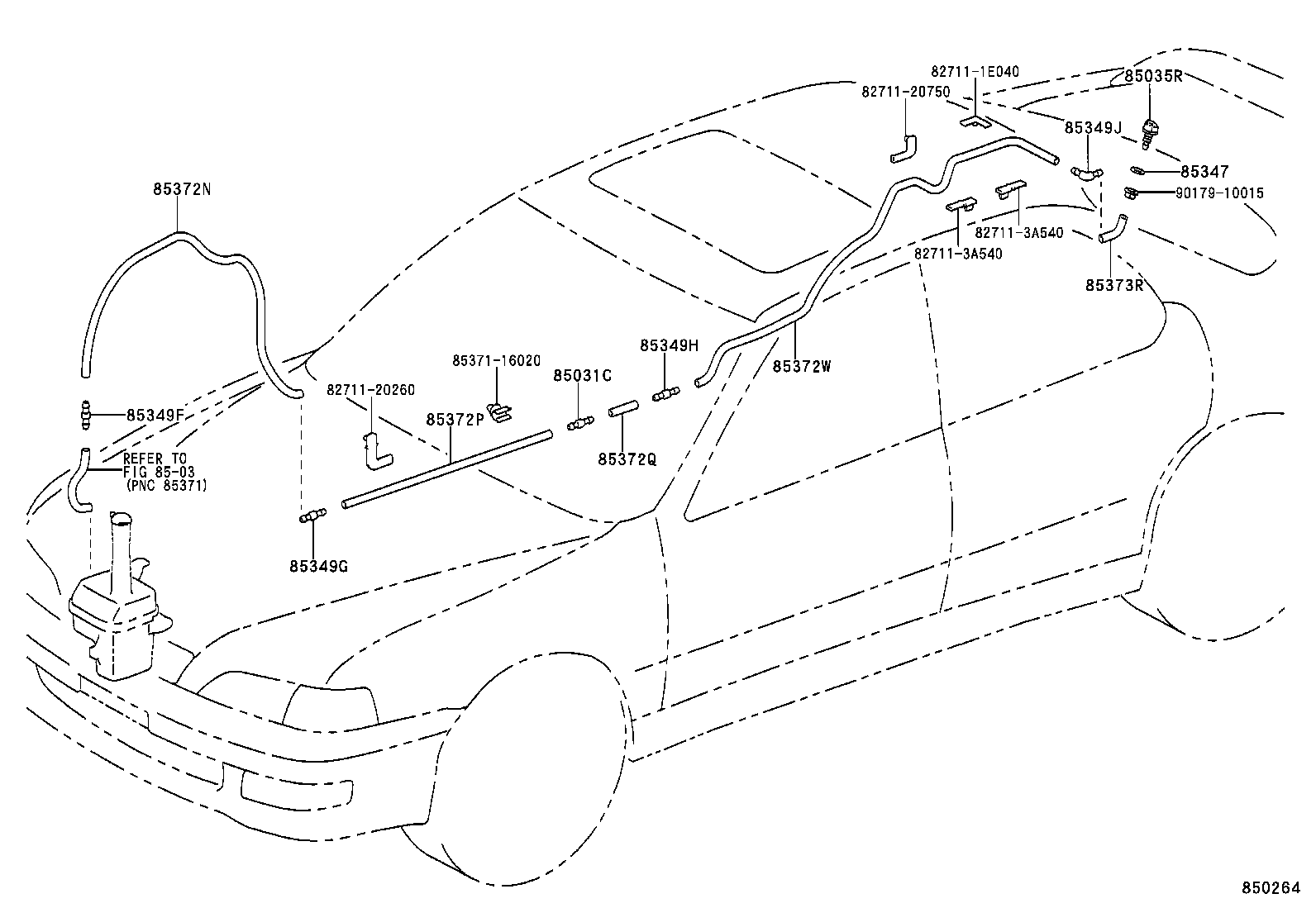

Click highlighted areas on diagram

diagram 827111E040 8271120260 8271120750 827113A540 827113A540 8503 85031C 85035R 85347 85349F 85349G 85349H 85349J 8537116020 85372N 85372P 85372Q 85372W 85373R 9017910015
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-90A00

CV4#,SV4#

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-32040

CV4#,SV4#..HT

 1
85347 - PACKING, REAR WASHER
85347-12010

CV4#,SV4#

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-89122

CV4#,SV4#

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

CV4#,SV4#

 1
85349H - JOINT, REAR WASHER HOSE, NO.3
85349-89122

CV4#,SV4#

 1
85349J - JOINT, REAR WASHER HOSE, NO.4
85355-20200

CV4#,SV4#..HT

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

CV4#,SV4#

*H,L=1580

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

CV4#,SV4#

*H,L=1020

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

CV4#,SV4#

*H,L=40

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33592

CV4#,SV4#..HT

*H,L=2100

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85374-32010

CV4#,SV4#

長さ=100

 1
85374-32010

CV4#,SV4#..HT

長さ=100

 1
Common parts
82711-1E040
82711-20260
82711-20750
82711-3A540
85371-16020
90179-10015
Linked diagrams
8503
