CV40-BTPDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )HT

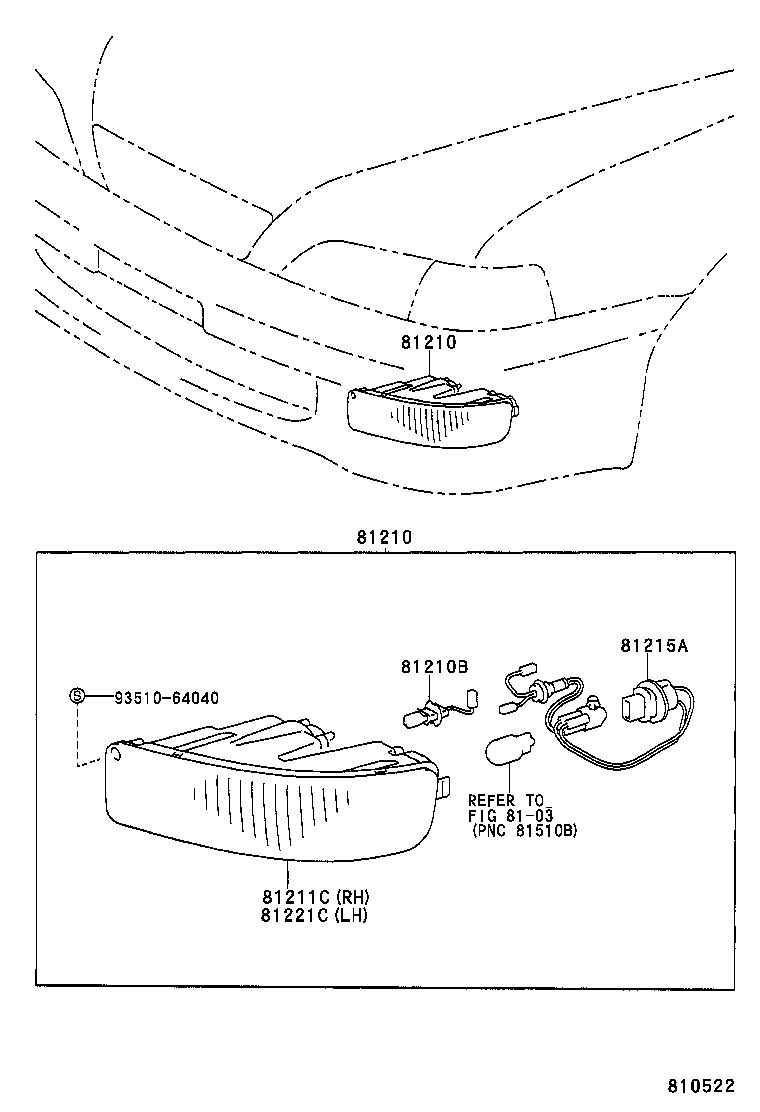

Click highlighted areas on diagram

diagram 8103 81210 81210 81210B 81211C 81215A 81221C 9351064040
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-32090

CV4#,SV4#..HT

右側

 1
81220-32090

CV4#,SV4#..HT

左側

 1
81210 - LAMP ASSY, FOG
81210-32090

CV4#,SV4#..HT

右側

 1
81220-32090

CV4#,SV4#..HT

左側

 1
81210B - BULB, FOG LAMP
90981-13049

CV4#,SV4#..HT

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13018

CV4#,SV4#..HT

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-32090

CV4#,SV4#..HT

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-32090

CV4#,SV4#..HT

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-32090

CV4#,SV4#..HT

 1
Common parts
93510-64040
Linked diagrams
8103
