CV40-BTPDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )ETO,LUM,VJ,XJ

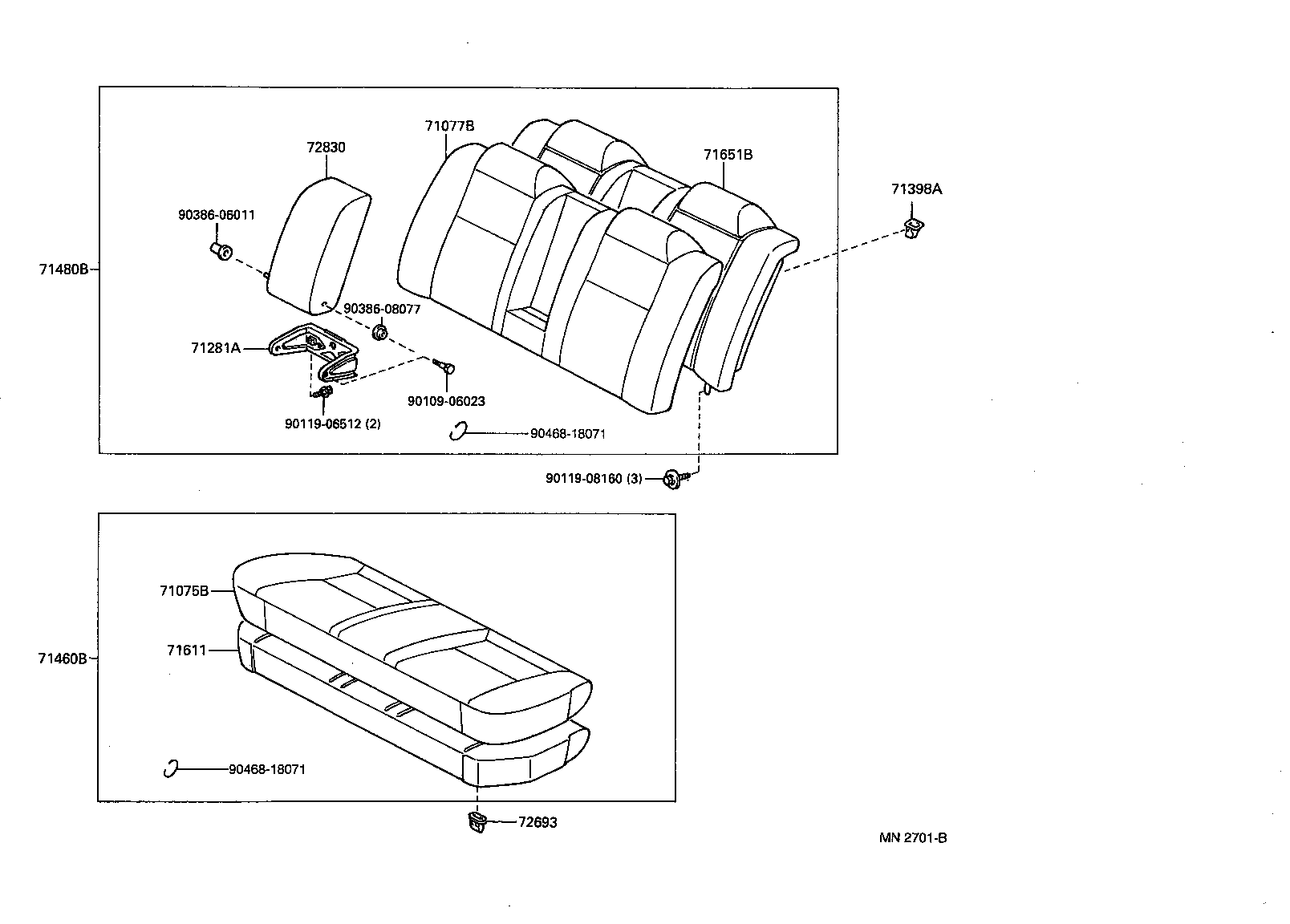

Click highlighted areas on diagram

diagram 71075B 71077B 71281A 71398A 71460B 71480B 71611 71651B 72693 72830 9010906023 9011906512 9011908160 9038606011 9038608077 9046818071 9046818071
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-32600B0

CV40,SV40..VJ

SHADOW GRAY,TRIM1#

 1
71065-32600E0

CV40,SV40..VJ

OAK,TRIM4#

 1
71065-32601E0

CV4#,SV40..VJ

OAK,TRIM4#

 1
71065-32601B0

CV4#,SV40..VJ

SHADOW GRAY,TRIM1#

 1
71065-32660E0

CV4#,SV40..VJ

MEDIUM OAK,TRIM4#

 1
71065-32660B0

CV4#,SV40..VJ

MEDIUM GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-3H510B0

CV4#,SV40,41,43..ETO,VJ

MEDIUM GRAY,TRIM1#

 1
71077-3H510E0

CV4#,SV40,41,43..ETO,VJ

MEDIUM OAK,TRIM4#

 1
71077-3H440B0

CV4#,SV40..VJ

SHADOW GRAY,TRIM1#

 1
71077-3H440E0

CV4#,SV40..VJ

OAK,TRIM4#

 1
71281A - HINGE, REAR SEAT CENTER ARMREST
71281-12030

CV4#,SV40,41,43..ETO,LUM,VJ

 1
71281-12030

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

 1
71398A - HOLDER, REAR SEAT BACK
71398-32010

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

 3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-32490B0

CV40,SV40..VJ

***,SHADOW GRAY,TRIM1#

 1
71560-32490E0

CV40,SV40..VJ

***,OAK,TRIM4#

 1
71560-32491B0

CV4#,SV40..VJ

***,SHADOW GRAY,TRIM1#

 1
71560-32491E0

CV4#,SV40..VJ

***,OAK,TRIM4#

 1
71560-32560E0

CV4#,SV40..VJ

***,MEDIUM OAK,TRIM4#

 1
71560-32560B0

CV4#,SV40..VJ

***,MEDIUM GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-3H370B0

CV4#,SV40..VJ

***,SHADOW GRAY,TRIM1#

 1
71480-3H450B0

CV4#,SV40,41,43..ETO,VJ

***,MEDIUM GRAY,TRIM1#

 1
71480-3H450E0

CV4#,SV40,41,43..ETO,VJ

***,MEDIUM OAK,TRIM4#

 1
71480-3H370E0

CV4#,SV40..VJ

***,OAK,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71503-32020

CV4#,SV4#..HT

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-32080

CV4#,SV40,41,43..ETO,VJ

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

CV4#,SV4#

 4
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-32550B0

CV4#,SV40..VJ

SHADOW GRAY,TRIM1#

 1
72830-32550E0

CV4#,SV40..VJ

OAK,TRIM4#

 1
72830-32630E0

CV4#,SV40,41,43..ETO,VJ

MEDIUM OAK,TRIM4#

 1
72830-32630B0

CV4#,SV40,41,43..ETO,VJ

MEDIUM GRAY,TRIM1#

 1
Common parts
90109-06023
90119-06512
90119-08160
90386-06011
90386-08077
90468-18071
