CV40-BTPDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )HT

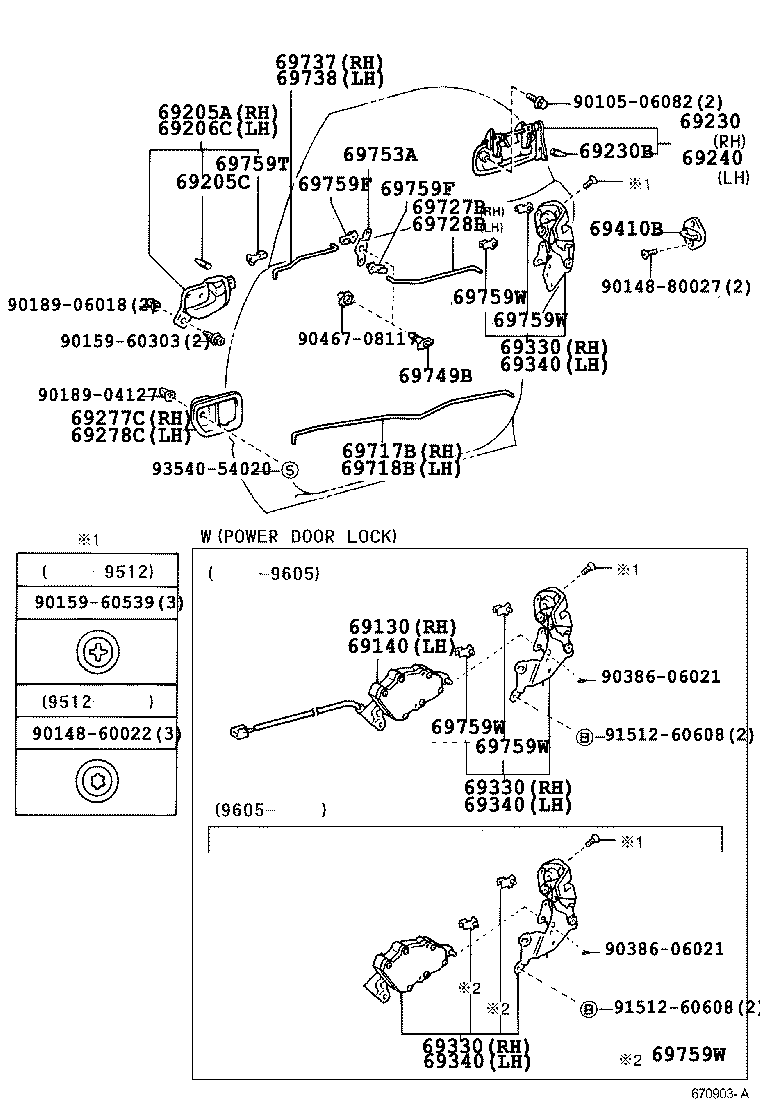

Click highlighted areas on diagram

diagram 69130 69140 69205A 69205C 69206C 69230 69230B 69240 69277C 69278C 69330 69330 69330 69340 69340 69340 69410B 69717B 69718B 69727B 69728B 69737 69738 69749B 69753A 69759F 69759F 69759T 69759W 69759W 69759W 69759W 69759W 9010506082 9014860022 9014880027 9015960303 9015960539 9018904127 9018906018 9038606021 9038606021 9046708117 9151260608 9151260608 9354054020
Part # Description Qty Price
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-32060

CV4#,SV4#..HT

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-32060

CV4#,SV4#..HT

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-20140B0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
69205-20140E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

CV4#,SV4#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-20140E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
69206-20140B0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-32070A1

CV40,SV4#..HT..(TOU,VJ,VX)

WARM GRAY PM,22Y

 1
69230-32070J0

CV4#,SV4#..HT

DK.BLUE MM,8G5

 1
69230-32070A0

CV4#,SV4#..HT

SUPER WHITE 2,040

 1
69230-32070B2

CV4#,SV4#..HT

SILVER ME,199

 1
69230-32070B0

CV4#,SV4#..HT

LT.GRAIGE ME.,1A2

 1
69230-32070A1

CV4#,SV4#..HT

WARM GRAY PM,22Y

 1
69230-32070J1

CV4#,SV4#..HT

DK.BLUE MC.GR.,8L8

 1
69230-32070G0

CV4#,SV4#..HT

DK GREEN MICA,6M1

 1
69230-32070B1

CV4#,SV4#..HT

DK BLUISH GRAY MICA,29Y

 1
69230-32070E0

CV4#,SV4#..HT

FLAXEN MM,4M7

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04014

CV4#,SV4#

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-32070A1

CV40,SV4#..HT..(TOU,VJ,VX)

WARM GRAY PM,22Y

 1
69240-32070J0

CV4#,SV4#..HT

DK.BLUE MM,8G5

 1
69240-32070B0

CV4#,SV4#..HT

LT.GRAIGE ME.,1A2

 1
69240-32070A0

CV4#,SV4#..HT

SUPER WHITE 2,040

 1
69240-32070G0

CV4#,SV4#..HT

DK GREEN MICA,6M1

 1
69240-32070B1

CV4#,SV4#..HT

DK BLUISH GRAY MICA,29Y

 1
69240-32070B2

CV4#,SV4#..HT

SILVER ME,199

 1
69240-32070E0

CV4#,SV4#..HT

FLAXEN MM,4M7

 1
69240-32070J1

CV4#,SV4#..HT

DK.BLUE MC.GR.,8L8

 1
69240-32070A1

CV4#,SV4#..HT

WARM GRAY PM,22Y

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-32070B0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
69277-32070E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-32060E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
69278-32060B0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-32340

CV4#,SV40..VJ

 1
69330-32330

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69330-32341

CV4#,SV40..VJ

 1
69330-32331

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69050-32220

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69330-32360

CV4#,SV40..VJ

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-32340

CV4#,SV40..VJ

 1
69330-32330

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69330-32341

CV4#,SV40..VJ

 1
69330-32331

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69050-32220

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69330-32360

CV4#,SV40..VJ

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-32340

CV4#,SV40..VJ

 1
69330-32330

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69330-32341

CV4#,SV40..VJ

 1
69330-32331

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69050-32220

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69330-32360

CV4#,SV40..VJ

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-32220

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69340-32331

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69340-32360

CV4#,SV40..VJ

 1
69340-32330

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69340-32341

CV4#,SV40..VJ

 1
69340-32340

CV4#,SV40..VJ

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-32220

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69340-32331

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69340-32360

CV4#,SV40..VJ

 1
69340-32330

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69340-32341

CV4#,SV40..VJ

 1
69340-32340

CV4#,SV40..VJ

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-32220

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69340-32331

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69340-32360

CV4#,SV40..VJ

 1
69340-32330

CV4#,SV40..VJ

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 1
69340-32341

CV4#,SV40..VJ

 1
69340-32340

CV4#,SV40..VJ

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

CV4#,SV4#

 2
69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-32090

CV4#,SV4#..HT

 1
69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-32090

CV4#,SV4#..HT

 1
69727B - LINK, REAR DOOR INSIDE LOCKING, NO.2 RH
69727-32060

CV4#,SV4#..HT

 1
69727-32080

CV4#,SV4#..HT

 1
69728B - LINK, REAR DOOR INSIDE LOCKING, NO.2 LH
69728-32080

CV4#,SV4#..HT

 1
69728-32060

CV4#,SV4#..HT

 1
69737 - LINK, REAR DOOR INSIDE LOCKING, RH
69737-32100

CV4#,SV4#..HT

 1
69738 - LINK, REAR DOOR INSIDE LOCKING, LH
69738-32100

CV4#,SV4#..HT

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32030

CV4#,SV4#

 2
69753A - BELLCRANK, DOOR LOCK CONTROL
69753-32070

CV4#,SV4#

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24030

CV4#,SV4#

ﾚｯﾄﾞ

 2
69759-20380

CV4#,SV4#

 2
69759-24030

CV4#,SV4#..HT

PINK

 2
69759-20380

CV4#,SV4#

ﾌﾞﾗｯｸ

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24030

CV4#,SV4#

ﾚｯﾄﾞ

 2
69759-20380

CV4#,SV4#

 2
69759-24030

CV4#,SV4#..HT

PINK

 2
69759-20380

CV4#,SV4#

ﾌﾞﾗｯｸ

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-24070

CV4#,SV4#

ｲｴﾛｰ

 2
69759-14050

CV4#,SV4#

PINK

 2
69759W - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24060

CV4#,SV4#

GRAY

 2
69759-24050

CV4#,SV4#

GREEN

 2
69759W - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24060

CV4#,SV4#

GRAY

 2
69759-24050

CV4#,SV4#

GREEN

 2
69759W - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24060

CV4#,SV4#

GRAY

 2
69759-24050

CV4#,SV4#

GREEN

 2
69759W - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24060

CV4#,SV4#

GRAY

 2
69759-24050

CV4#,SV4#

GREEN

 2
69759W - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24060

CV4#,SV4#

GRAY

 2
69759-24050

CV4#,SV4#

GREEN

 2
Common parts
90105-06082
90148-60022
90148-80027
90159-60303
90159-60539
90189-04127
90189-06018
90386-06021
90467-08117
91512-60608
93540-54020
