CV40-BTPDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )HT

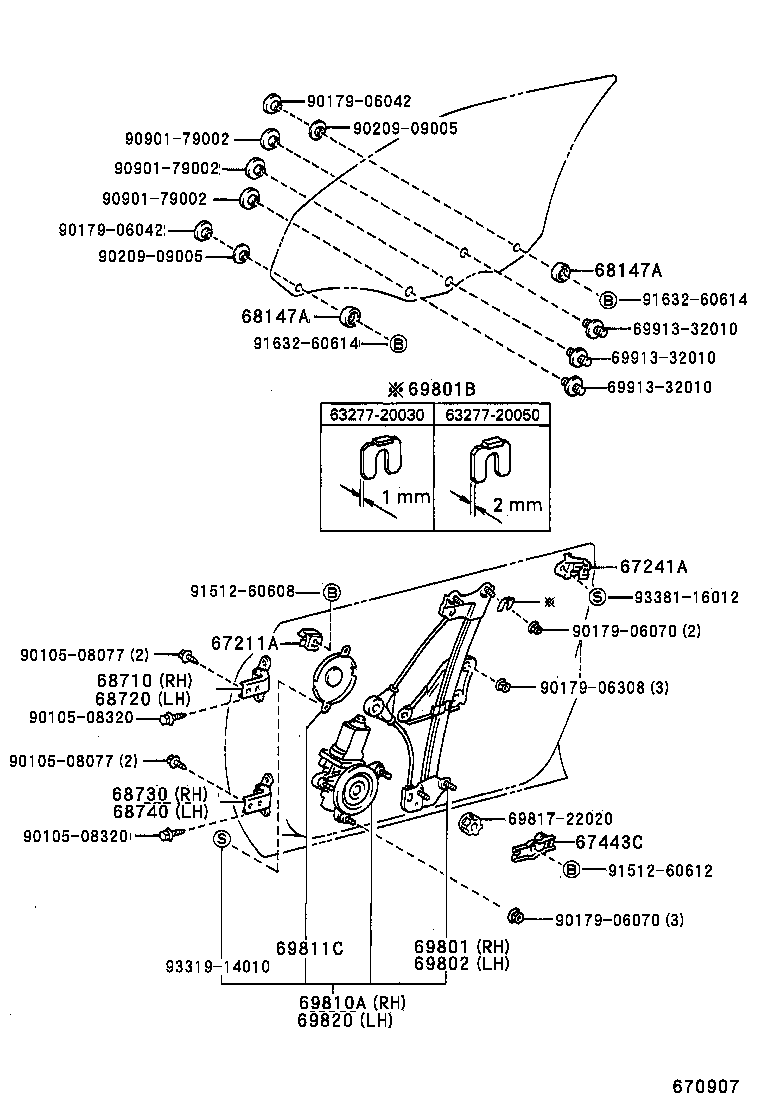

Click highlighted areas on diagram

diagram 67211A 67241A 67443C 68147A 68147A 68710 68720 68730 68740 69801 69801B 69802 69810A 69811C 6981722020 69820 6991332010 6991332010 6991332010 9010508077 9010508077 9010508320 9010508320 9017906042 9017906042 9017906070 9017906070 9017906308 9020909005 9020909005 9090179002 9090179002 9090179002 9151260608 9151260612 9163260614 9163260614 9331914010 9338116012
Part # Description Qty Price
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-22040

CV4#,SV4#..HT

 4
67241A - STABILIZER, DOOR GLASS, INNER
67235-32030

CV4#,SV4#..HT

右側

 1
67236-32010

CV4#,SV4#..HT

左側

 1
67443C - PLATE, FRONT DOOR WINDOW GUIDE, LOWER
67443-20080

CV4#,SV4#..HT

 2
68147A - STOP, FRONT DOOR GLASS, UPPER
68147-20040

CV4#,SV4#..HT

 4
68147A - STOP, FRONT DOOR GLASS, UPPER
68147-20040

CV4#,SV4#..HT

 4
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-32060

CV4#,SV4#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-32060

CV4#,SV4#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-32060

CV4#,SV4#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-32060

CV4#,SV4#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-32090

CV4#,SV4#..HT

 1
69801B - SHIM, WINDOW REGULATOR
63277-20030

CV4#,SV4#..HT

厚さ=1.0

 1
63277-20050

CV4#,SV4#..HT

厚さ=2.0

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-32090

CV4#,SV4#..HT

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-32150

CV4#,SV4#..HT

 1
69810-32140

CV4#,SV4#..HT

 1
69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69811-32050

CV4#,SV4#..HT

 2
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-32140

CV4#,SV4#..HT

 1
Common parts
69817-22020
69913-32010
90105-08077
90105-08320
90179-06042
90179-06070
90179-06308
90209-09005
90901-79002
91512-60608
91512-60612
91632-60614
93319-14010
93381-16012
