CV40-BTPDX (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3CT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )HT

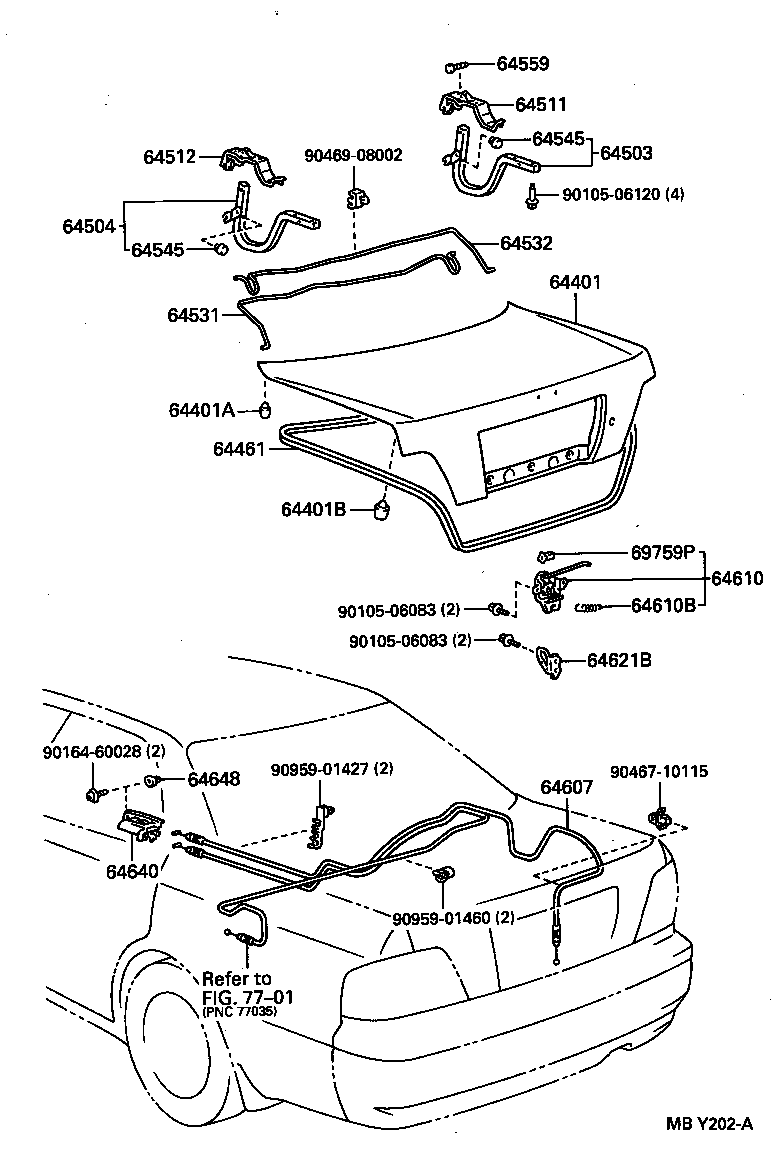

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-32710 |
CV4#,SV4#..ETO,VJ,VX |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06059 |
CV4#,SV4# |
2 | ||
| 90541-06054 |
CV4#,SV4# |
2 | ||
| 64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09043 |
CV4#,SV4#..HT |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-32110 |
CV4#,SV4#..HT |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-32050 |
CV4#,SV4#..HT |
1 | ||
| 64503-32051 |
CV4#,SV4#..HT |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64504-32041 |
CV4#,SV4#..HT |
1 | ||
| 64504-32040 |
CV4#,SV4#..HT |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-32080 |
CV4#,SV4#..HT |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-32080 |
CV4#,SV4#..HT |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-32170 |
CV4#,SV4#..ETO,VJ,VX |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-32170 |
CV4#,SV4#..ETO,VJ,VX |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-10144 |
CV4#,SV4#..HT |
2 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-10144 |
CV4#,SV4#..HT |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32020 |
CV4#,SV4# |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-32260 |
CV4#,SV4#..HT |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-32100 |
CV4#,SV4#..HT |
1 | ||
| 64610B - SPRING, TENSION(FOR LOCK) | ||||
| 90506-06010 |
CV4#,SV4#..HT |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-12060 |
CV4#,SV4# |
1 | ||
| 64640 - OPENER ASSY, LUGGAGE DOOR LOCK | ||||
| 64640-32090B4 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 64640-32090B2 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 64640-32120B0 |
CV40,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 64640-32120E0 |
CV40,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 64640-32090E3 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 64640-32090E1 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 64648 - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-32020 |
CV4#,SV4# |
2 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20110 |
CV4#,SV4# |
1 | ||
| Common parts | ||||
| 90105-06083 | ||||
| 90105-06120 | ||||
| 90164-60028 | ||||
| 90467-10115 | ||||
| 90469-08002 | ||||
| 90959-01427 | ||||
| 90959-01460 | ||||
| Linked diagrams | ||||
| 7701 | ||||
