CV40-BTPDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )CV4#

Click highlighted areas on diagram

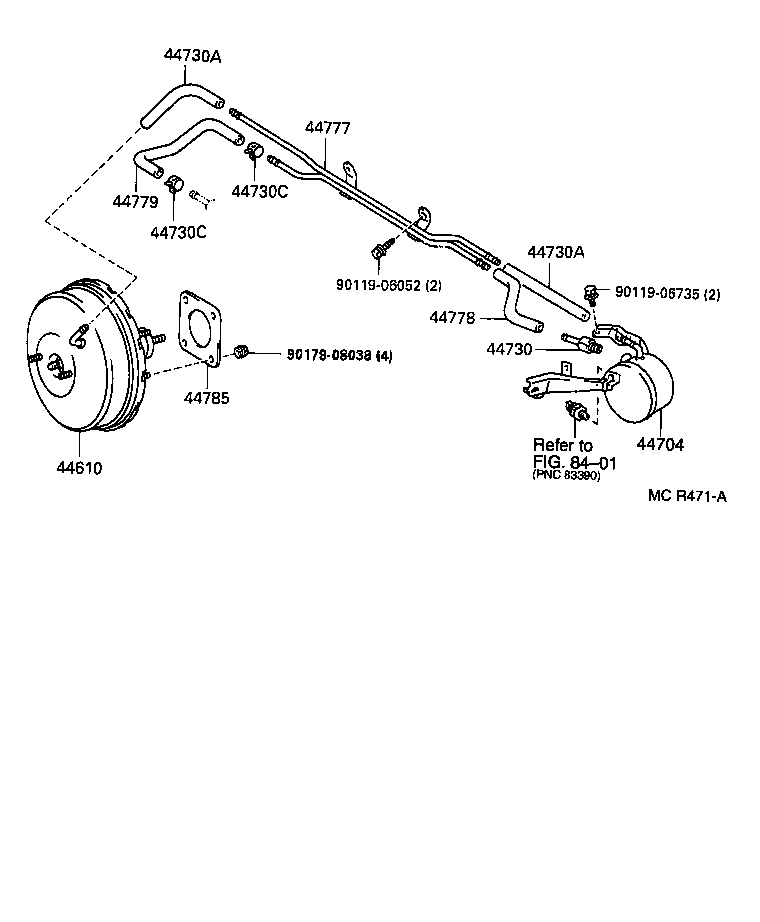

diagram 44610 44704 44730 44730A 44730A 44730C 44730C 44777 44778 44779 44785 8401 9011906052 9011906735 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-32540

CV40

ｱﾘ(ABS)

 1
44610-32520

CV40

 1
44610-32540

CV40

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-32060

CV4#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

CV4#

 1
44730A - HOSE, VACUUM, NO.1
95446-09180

CV4#

 2
44730A - HOSE, VACUUM, NO.1
95446-09180

CV4#

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CV4#,SV4#

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CV4#,SV4#

 2
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-32010

CV4#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-32040

CV4#

 1
44779 - HOSE, UNION TO CONNECTOR
44779-32010

CV4#

 1
44779-32020

CV4#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

CV4#,SV4#

 1
Common parts
90119-06052
90119-06735
90179-08038
Linked diagrams
8401
